V52-14KO-H - Exmark 52" Viking Walk-Behind Mower, 14hp Kohler (SN: 102000 - 114999) (1995) Upper Handle & Controls Parts Diagram

52" Viking Walk-Behind Mower, 14hp Kohler

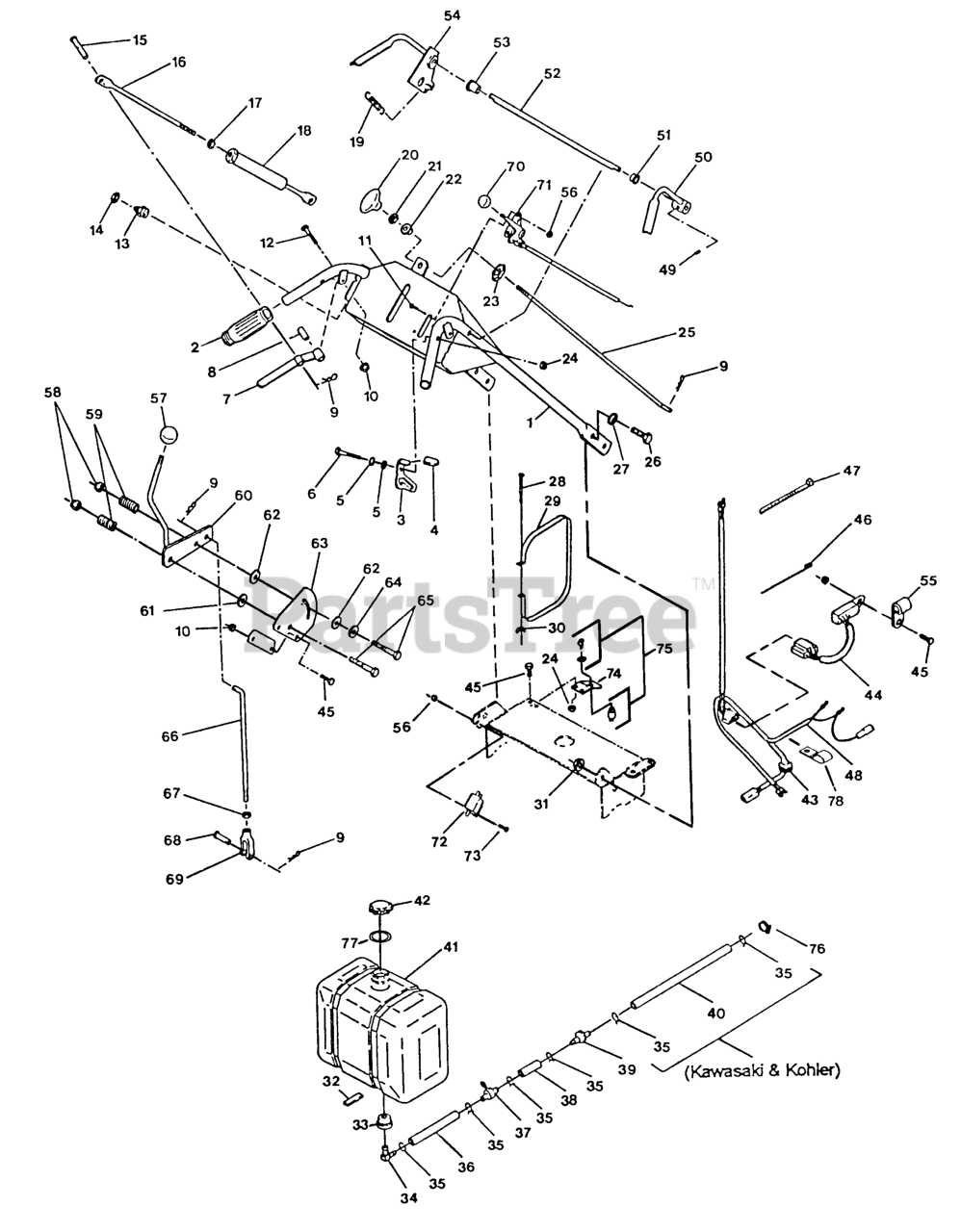

Upper Handle & Controls Parts Diagram

  • Title

1

Exmark 1-322098

103-0234
(Superseded to 103-0234)

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-602772

RH LATCH W/GRIP

$

$

Not available

Exmark 1-602771

LH LATCH W/GRIP

Note: Not Illustrated

$

$

Not available

4

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

5

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

6

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602837

1-614193
(Superseded to 1-614193)

$123.99

$

Usually ships in 3-6 days

0

Exmark 1-602839

1-614194
(Superseded to 1-614194)

$

$

Not available

8

Exmark 1-603749

BUSHING-LEVER, DRIVE

$8.49

$

In Stock, Qty 5

0

9

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

12

Exmark 1-800256

321-9
(Superseded to 321-9)

$5.49

$

In Stock, only 2 left!

0

13

Exmark 1-303372

SWITCH,OPERATOR CNTRL

$103.99

$

Usually ships in 3-6 days

0

14

Exmark 1-803034

DISCONTINUED (EXMARK)

$

$

Not available

15

Exmark 1-613055

PIN-CLEVIS

$9.49

$

In Stock, only 2 left!

0

16

Exmark 1-323416

ROD,DRIVE LEVER LINKAGE

Note: Use anti-seize compound on threads.

$22.99

$

Usually ships in 3-6 days

0

17

Exmark 1-804507

3217-7
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-602692

1-611105
(Superseded to 1-611105)

$

$

Not available

19

Exmark 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 13

0

20

Exmark 1-323134

KNOB-PUSH / PULL

$29.99

$

In Stock, only 2 left!

0

21

Exmark 1-804751

3218-2
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-323143

BEARING-NYLON

$6.99

$

In Stock, only 4 left!

0

23

Exmark 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

24

Exmark 1-804255

3296-42
(Superseded to 3296-42)

Note: (Kaw & Koh)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-804255

3296-42
(Superseded to 3296-42)

Note: (B&S)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323181

LINKAGE-BLADE

$129.99

$

Usually ships in 3-6 days

0

26

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-801062

SCRW,MACH CRPH

$2.99

$

In Stock, only 1 left!

0

29

Exmark 1-303465-03

1-303465
(Superseded to 1-303465)

$37.99

$

In Stock, only 1 left!

0

30

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 12

0

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

33

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

34

Exmark 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

35

Exmark 1-303077

CLAMP

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: (B&S)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

Note: (Kawasaki)

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-603955

HOSE-FUEL

Note: (Kaw & Kohler)

$5.99

$

Usually ships in 3-6 days

0

Exmark 1-543649

DISCONTINUED

Note: (B&S)

$

$

Not available

37

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 7

0

38

Exmark 1-603776

HOSE-LINE, FUEL

Note: (Kaw & Kohler)

$

$

Not available

Exmark 1-303471

LINE-FUEL

Note: (B&S)

$8.99

$

In Stock, only 2 left!

0

39

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

Usually ships in 3-6 days

0

40

Exmark 1-603954

HOSE-LINE, FUEL

Note: (Kohler)

$9.49

$

In Stock, only 1 left!

0

Exmark 1-303471

LINE-FUEL

Note: (Kawasaki)

$8.99

$

In Stock, only 2 left!

0

41

Exmark 1-543364

DISCONTINUED

$

$

Not available

42

Exmark 1-513508

CAP-FUEL

$28.99

$

In Stock, Qty 20+

0

43

Exmark 1-543296

GROMMET

$8.99

$

In Stock, only 4 left!

0

44

Exmark 1-323145

1-321011
(Superseded to 1-321011)

Note: (Kaw and B&S)

$260.99

$

Usually ships in 3-6 days

0

Exmark 1-323146

1-321012
(Superseded to 1-321012)

Note: (Kohler)

$

$

Not available

45

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: (Kaw & Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: (B&S)

$1.49

$

In Stock, Qty 20+

0

46

Exmark 1-303287

TIE-CABLE

Note: (Kaw)

$1.49

$

Usually ships in 3-6 days

0

47

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

48

Exmark 1-323422

DISCONTINUED

Note: (Kawasaki)

$

$

Not available

Exmark 1-323230

103-1273
(Superseded to 103-1273)

Note: (Kohler)

$

$

Not available

Exmark 1-403112

103-0788
(Superseded to 103-0788)

Note: (B&S)

$

$

Not available

49

Exmark 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use Pro-Lock (nut type) on setscrew threads.

$21.99

$

Usually ships in 3-6 days

0

50

Exmark 1-302138-03

1-412185-03
(Superseded to 1-412185-03)

$86.99

$

In Stock, only 3 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Use on inside bore of OPC hub (See Owner's Manual)

$22.99

$

In Stock, only 1 left!

0

51

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-303364

ROD,CONNECTING

$

$

Not available

53

Exmark 1-303369

BUSHING,FLANGED

$

$

Not available

54

Exmark 1-602507-03

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Use on inside bore of OPC hub (See Owner's Manual)

$22.99

$

In Stock, only 1 left!

0

55

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

56

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

57

Exmark 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

58

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

59

Exmark 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 12

0

60

Exmark 1-602733

106-2748
(Superseded to 106-2748)

$119.99

$

In Stock, only 2 left!

0

61

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

62

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$2.99

$

In Stock, only 4 left!

0

63

Exmark 1-603730

PLATE-LEVER, SHIFTER

$39.99

$

Usually ships in 3-6 days

0

64

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, Qty 20+

0

65

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0

66

Exmark 1-323183

ROD,SPEED CONTROL PLTD

$

$

Not available

67

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

68

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

69

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

70

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 20+

0

71

Exmark 1-323129

CABLE,THROTTLE CONTROL

Note: (Kaw & Kohler)

$

$

Not available

Exmark 1-543697

1-633696
(Superseded to 1-633696)

Note: (B&S)

$66.99

$

In Stock, Qty 20+

0

72

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

73

Exmark 1-801040

DISCONTINUED

$

$

Not available

74

Exmark 1-403118-01

DISCONTINUED

Note: (B&S)

$

$

Not available

75

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

Note: (B&S)

$23.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

76

Exmark 1-303308

CLAMP-HOSE

Note: (Kawasaki)

$

$

Not available

77

Exmark 1-303321

DISCONTINUED

$

$

Not available

78

Exmark 1-323423

1-323229
(Superseded to 1-323229)

Note: (Kaw)

$3.49

$

Usually ships in 3-6 days

0
