V48-16BV-H - Exmark 48" Viking Walk-Behind Mower, 16hp Briggs & Stratton (SN: 115000 - 129999) (1996) Engine Deck Group Cont. Parts Diagram

48" Viking Walk-Behind Mower, 16hp Briggs & Stratton

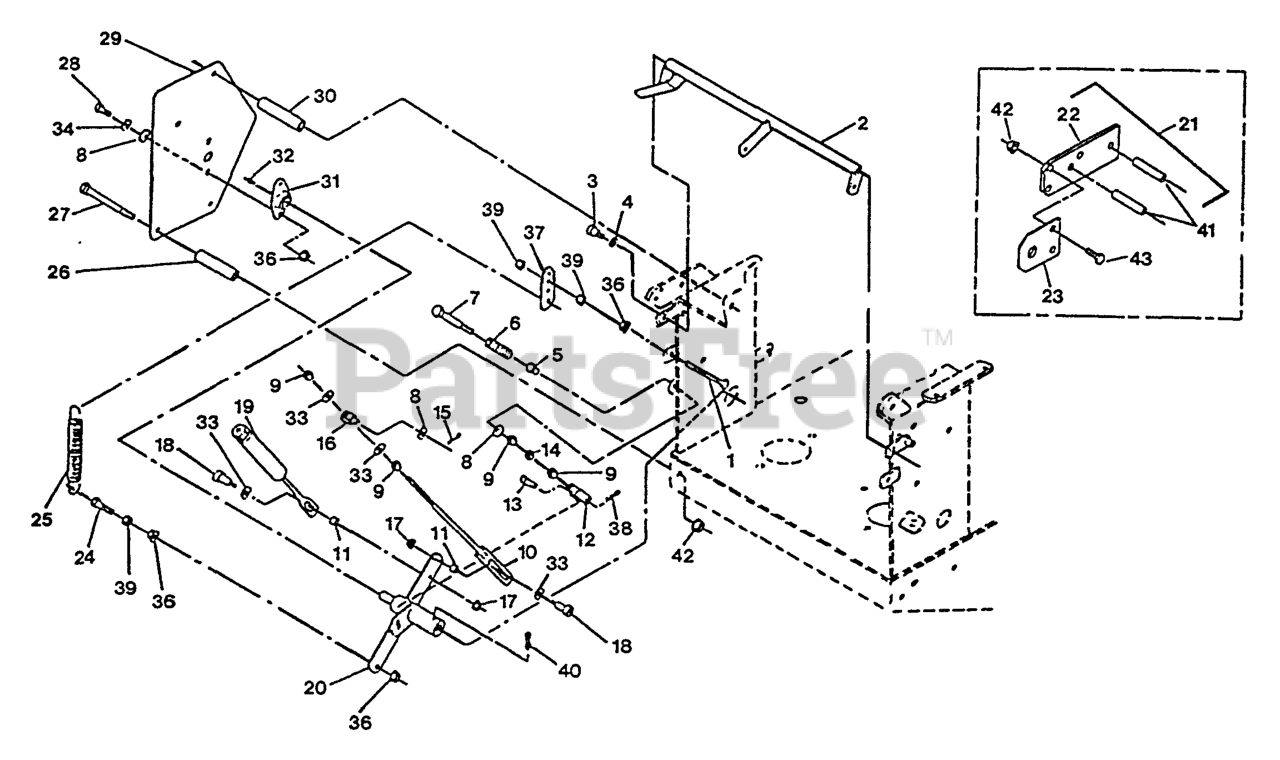

Engine Deck Group Cont. Parts Diagram

  • Title

1

Exmark 1-800021

BOLT,TAP HH

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 1-322096-01

DISCONTINUED

$

$

Not available

3

Exmark 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

7

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

8

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

Usually ships in 3-6 days

0

10

Exmark 1-602742

1-613206
(Superseded to 1-613206)

$17.99

$

Usually ships in 3-6 days

0

11

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 2 left!

0

12

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

13

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

14

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.49

$

In Stock, Qty 5

0

16

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

17

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

18

Exmark 1-809057

SCREW-HSH

Note: Use Pro-Lock nut type, Part No. 840022 (.5 ml tube) on bolt threads.

$

$

Not available

19

Exmark 1-612081-03

WLD,HOUSING

$197.99

$

Usually ships in 3-6 days

0

20

Exmark 1-322092-01

WLD,HYDRO CONTROL ARM LH

$122.99

$

Usually ships in 3-6 days

0

Exmark 1-322094-01

WLD,HYDRO CONTROL ARM RH

$122.99

$

Usually ships in 3-6 days

0

21

Exmark 1-301022

Sulky Hitch Kit, (Vik Hydro)

$

$

Currently unavailable

22

Exmark 1-373036-01

MOUNT-HITCH

$

$

Not available

23

Exmark 1-323238

Bracket, Hitch Adapter

$

$

Currently unavailable

24

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

25

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

0

26

Exmark 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

0

27

Exmark 1-800302

323-16
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

28

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-323179-01

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

0

31

Exmark 1-543514

FLANGE MTG, SIDE

$35.99

$

Usually ships in 3-6 days

0

32

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

33

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

35

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

38

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

39

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

40

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

41

Exmark 1-323240-01

DISCONTINUED

$

$

Not available

42

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

43

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
