V48-14KO-H - Exmark 48" Viking Walk-Behind Mower, 14hp Kohler (SN: 102000 - 114999) (1995) 52" Mower Deck Parts Diagram

48" Viking Walk-Behind Mower, 14hp Kohler

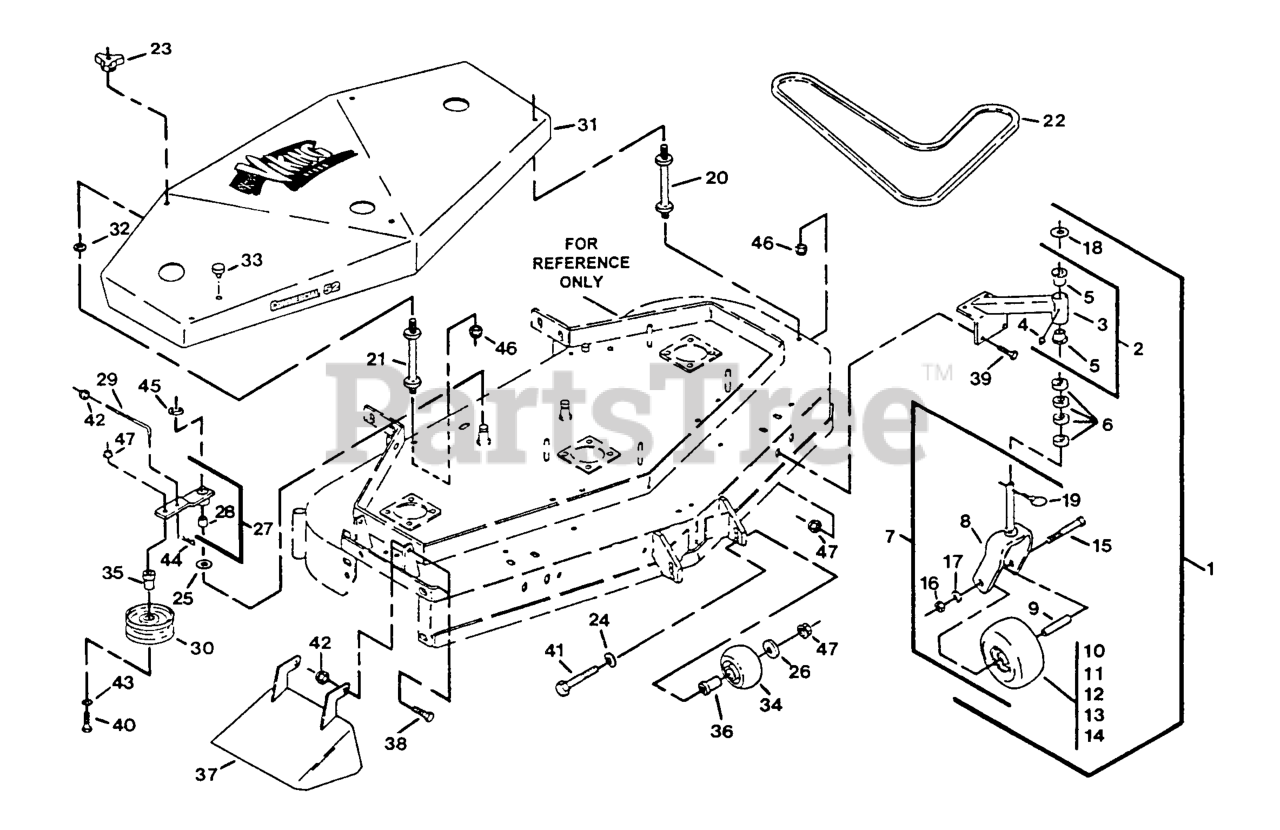

52" Mower Deck Parts Diagram

  • Title

1

Exmark 1-322153

CASTER/MOUNT ASM

$

$

Not available

2

Exmark 1-302203

SUPPORT ASM

Note: (w/bearings)

$318.99

$

Usually ships in 3-6 days

0

3

Exmark 1-302194

1-302203
(Superseded to 1-302203)

$318.99

$

Usually ships in 3-6 days

0

4

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

5

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

6

Exmark 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 20+

0

7

Exmark 1-322154

103-1236
(Superseded to 103-1236)

$220.99

$

Usually ships in 3-6 days

0

8

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$101.99

$

In Stock, only 2 left!

0

9

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

10

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$129.99

$

In Stock, Qty 17

0

11

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$129.99

$

In Stock, Qty 17

0

12

Exmark 1-513808

TIRE

$45.99

$

In Stock, only 4 left!

0

13

Exmark 1-513809

BEARING

$37.99

$

In Stock, Qty 20+

0

14

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

15

Exmark 1-800334

325-20
(Superseded to 325-20)

$7.99

$

In Stock, Qty 20+

0

16

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

19

Exmark 1-809020

PIN

$12.99

$

In Stock, Qty 6

0

20

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

0

21

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

22

Exmark 1-403088

BELT,BLADE DRIVE 48
(Superseded to 1-403088-SL)

$108.99

$

Usually ships in 3-6 days

0

23

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

24

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

25

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

26

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

27

Exmark 1-402053

ARM WLDMNT W/BUSHING

$102.99

$

Usually ships in 3-6 days

0

28

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 1 left!

0

29

Exmark 1-403107

LINKAGE

$45.99

$

In Stock, only 1 left!

0

30

Exmark 1-403119

IDLER,PULLEY

$46.99

$

In Stock, only 3 left!

0

31

Exmark 1-404163

BELT SHIELD ASSY 52METR

$294.99

$

Usually ships in 3-6 days

0

32

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

33

Exmark 1-513291

DISCONTINUED

$

$

Not available

34

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

35

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

36

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

37

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$201.99

$

Usually ships in 3-6 days

0

38

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, Qty 14

0

40

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

42

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

43

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

45

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

46

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0
