V48-14KO-H - Exmark 48" Viking Walk-Behind Mower, 14hp Kohler (SN: 102000 - 114999) (1995) 48" Mower Deck Parts Diagram

48" Viking Walk-Behind Mower, 14hp Kohler

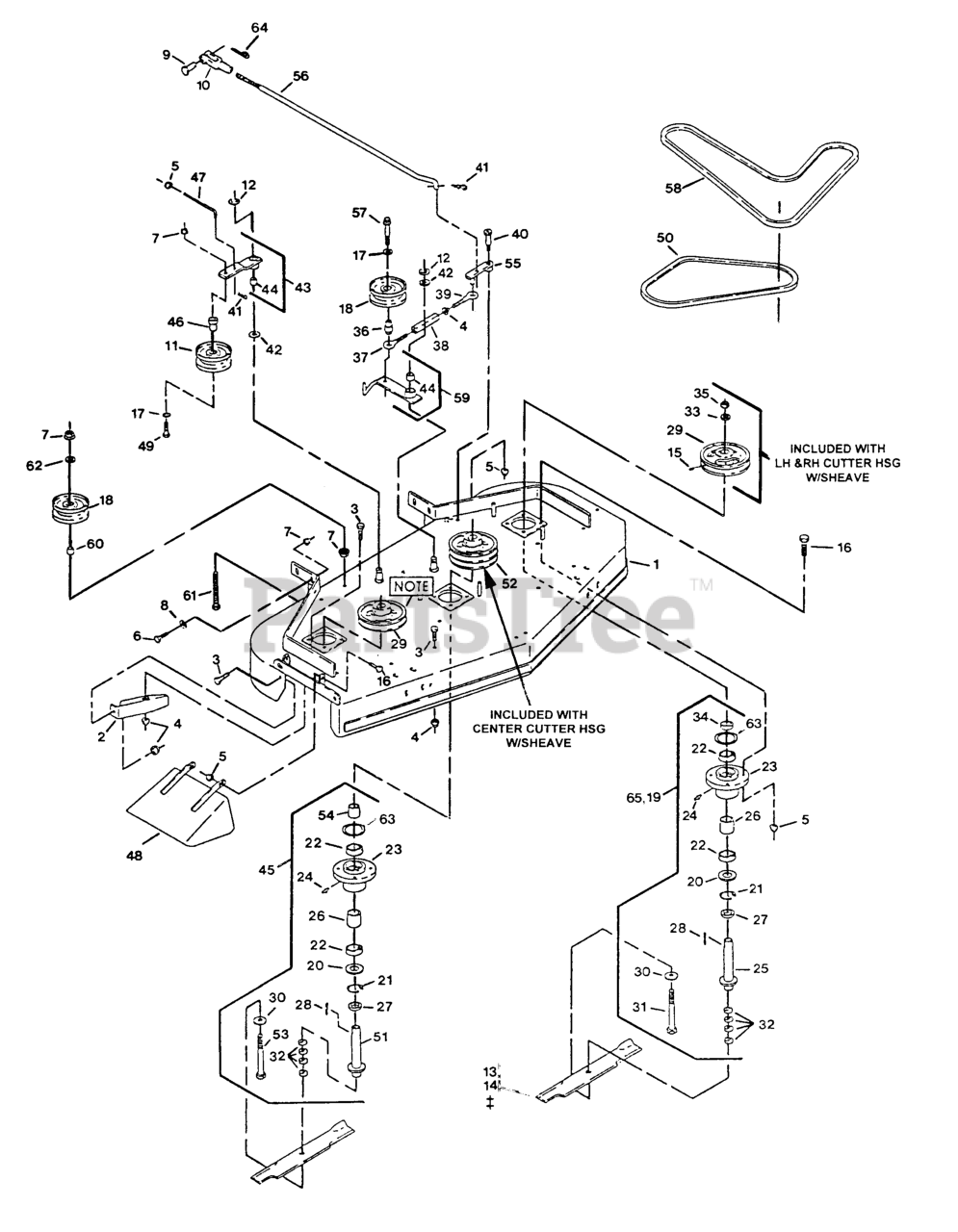

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-402084

DISCONTINUED (EXMARK)

Note: w/baffles (48")

$

$

Not available

2

Exmark 1-302189-01

BAFFLE-DOGLEG

$54.99

$

Usually ships in 3-6 days

0

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 19

0

10

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

11

Exmark 1-403119

IDLER,PULLEY

$46.99

$

In Stock, only 3 left!

0

12

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

13

Exmark 1-403026

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

14

Exmark 1-403059

103-6583-S
(Superseded to 103-6583-S)

Note: (optional)

$31.99

$

In Stock, Qty 20+

0

Exmark 1-403086

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Mulching Kit (Part No. MK48-2)

$34.99

$

In Stock, Qty 20+

0

15

Exmark 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Not Illustrated. Use Pro-Lock, Nut Type on setscrew threads.

$20.99

$

Usually ships in 3-6 days

0

16

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-603843

132-4718
(Superseded to 132-4718)

Note: (heavy duty)

$35.99

$

In Stock, Qty 20+

0

19

Exmark 1-322166

ASM,HOUSING CUTTER

$

$

Not available

20

Exmark 1-323408

SEAL,DUST

$

$

Not available

21

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 5

0

22

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$43.99

$

In Stock, Qty 20+

0

23

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

24

Exmark 1-811001

302-52
(Superseded to 302-52)

Note: (straight)

$6.99

$

In Stock, Qty 20+

0

25

Exmark 1-322164

103-1871
(Superseded to 103-1871)

$122.99

$

Usually ships in 3-6 days

0

26

Exmark 1-323400

SPACER,BRG/BRG

$9.99

$

In Stock, only 2 left!

0

27

Exmark 1-323399

SPACER,BEARING &SPINDLE

$9.49

$

Usually ships in 3-6 days

0

28

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

29

Exmark 1-303535

1-403183
(Superseded to 1-403183)

Note: (single groove)

$74.99

$

In Stock, Qty 6

0

30

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 20+

0

31

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

0

32

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 13

0

34

Exmark 1-323402

DISCONTINUED

$

$

Not available

35

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 20+

0

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 16

0

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 20+

0

40

Exmark 1-809011

BOLT,SHLDR KSKH

Note: (shoulder)

$

$

Not available

41

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

43

Exmark 1-402053

ARM WLDMNT W/BUSHING

Note: (w/bushing) cmplt

$102.99

$

Usually ships in 3-6 days

0

44

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 2 left!

0

45

Exmark 1-402077

DISCONTINUED

Note: (center)

$

$

Not available

46

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

47

Exmark 1-403107

LINKAGE

$45.99

$

In Stock, only 1 left!

0

48

Exmark 1-302054

1-302233-01
(Superseded to 1-302233-01)

$203.99

$

In Stock, only 1 left!

0

49

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-403025

BELT,FRONT DECK
(Superseded to 1-403025-SL)

$44.99

$

In Stock, only 4 left!

0

51

Exmark 1-402075

103-1869
(Superseded to 103-1869)

Note: (long)

$

$

Not available

52

Exmark 1-403133

1-403167
(Superseded to 1-403167)

Note: (double groove)

$

$

Not available

53

Exmark 1-800862

SCRW,CAP HH 5/8-18X8.5

$29.99

$

In Stock, Qty 15

0

54

Exmark 1-323404

SPACER,BEARING/SHEAVE

Note: (center sheave)

$23.99

$

Usually ships in 3-6 days

0

55

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$95.99

$

Usually ships in 3-6 days

0

56

Exmark 1-323174

ARM-LINKAGE, ASSIST

$31.99

$

Usually ships in 3-6 days

0

57

Exmark 1-803003

DISCONTINUED

$

$

Not available

58

Exmark 1-303499

BELT,BLADE DRIVE 36
(Superseded to 1-303499-SL)

Note: (48" deck)

$84.99

$

In Stock, only 2 left!

0

59

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$126.99

$

In Stock, only 2 left!

0

60

Exmark 1-543879

BUSHING,IDLER

$15.99

$

In Stock, only 1 left!

0

61

Exmark 1-800029

BOLT,TAP HH3/8-16X2-1/4

$

$

Not available

62

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0

64

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.99

$

In Stock, only 4 left!

0

65

Exmark 1-322167

1-322166
(Superseded to 1-322166)

$

$

Not available
