V 91 GS (13AV91GS897) - Columbia 42" Lawn Tractor (2011) Hood & Grille Style G & Y Parts Diagram

42" Lawn Tractor

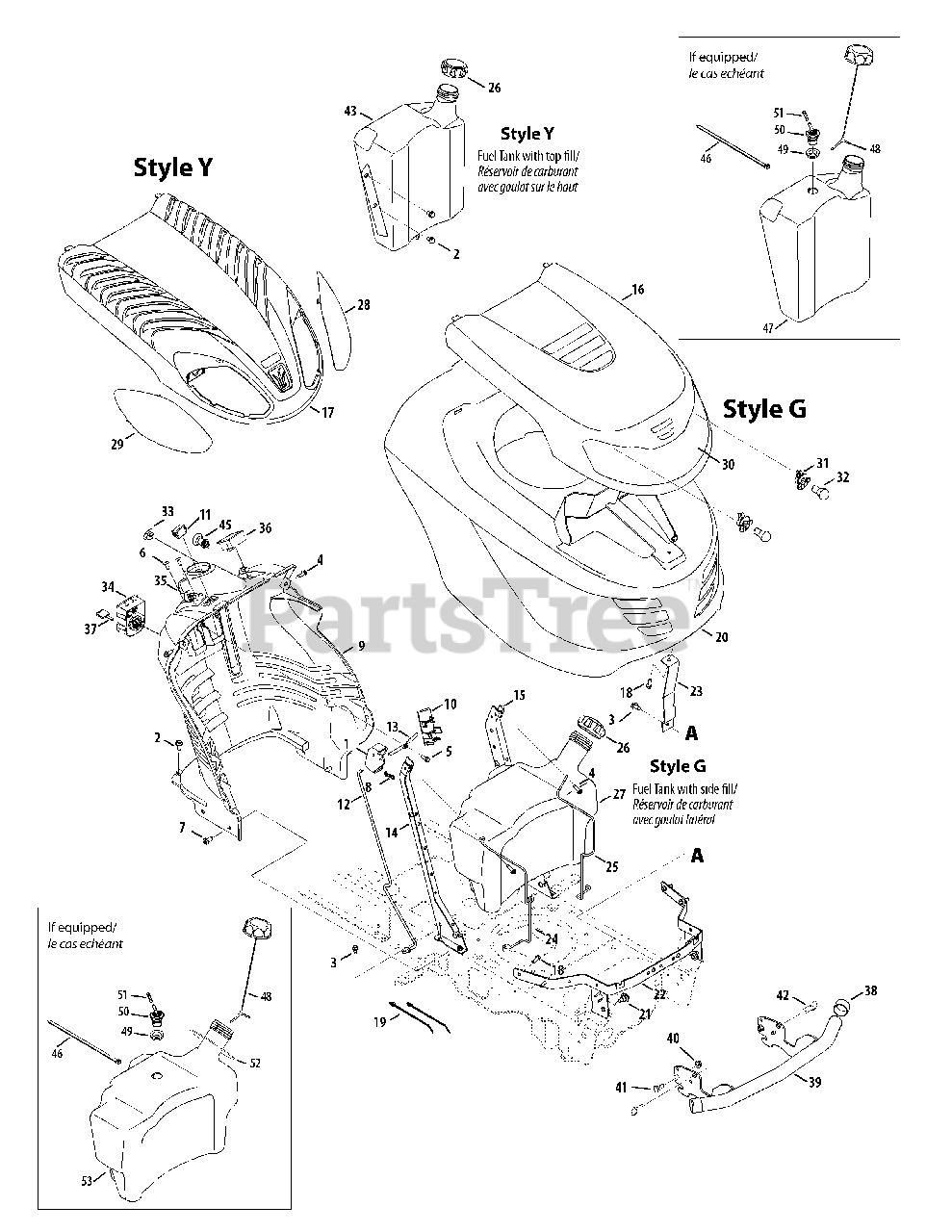

Hood & Grille Style G & Y Parts Diagram

  • Title

1

White Outdoor 631-04353A

Dash Lever

$23.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0642

Hex TT Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 10

0

6

White Outdoor 710-1017

Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg

$8.49

$

In Stock, Qty 9

0

7

White Outdoor 710-1611B

Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

8

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

White Outdoor 931-06495

Dash Panel (Man. PTO w/fuel level window)
(Superseded to 931-06495A)

Note: Model 13AV91GS897

$

$

Not available

9

White Outdoor 931-06620

Dash Panel (Elect. PTO w/o fuel level window)

Note: Model 13AP91YT501

$

$

Not available

10

White Outdoor 731-06643

Cruise Cover Y/G Style

$6.49

$

Usually ships in 3-6 days

0

11

White Outdoor 731-07042

Light Switch Cap

$9.99

$

Usually ships in 3-6 days

0

12

White Outdoor 747-05008

Latch Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

White Outdoor 747-1155

Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

14

White Outdoor 783-04285F-0637

RH Dash Support Plate

$

$

Not available

14

White Outdoor 783-04323F-0637

LH Dash Support Plate

Note: (not shown)

$34.99

$

Usually ships in 3-6 days

0

16

White Outdoor 931-04308

Up per "G" Style Hood

$104.99

$

Usually ships in 3-6 days

0

17

White Outdoor 931-04307

Up per "Y" Style Hood

$

$

Not available

18

White Outdoor 710-05108

Screw, Bos, 1/4 Dia. x .75

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

20

White Outdoor 931-06538

G Style Hood (w/side fill fuel tank)

$202.99

$

Usually ships in 3-6 days

0

20

White Outdoor 931-06484

Y Style Hood (w/top fill fuel tank)

$

$

Not available

21

White Outdoor 738-04091A

Shoulder Screw .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 783-04606C

Hood Pivot Bracket

Variations

White Outdoor 783-04606C-0606

BRACKET-PIVOT HOOD - MAJESTIC ORANGE (0606)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04606C-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 783-04606C-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04606C-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04606C-4021

BRACKET-PIVOT HOOD - CUB YELLOW 2 (4021)

$48.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

23

White Outdoor 783-06117-0637

Hood Support Bracket

$

$

Not available

24

White Outdoor 747-05049

Tank Support Rod RH

$10.99

$

Usually ships in 3-6 days

0

25

White Outdoor 747-05050

Tank Support Rod LH

$

$

Not available

26

White Outdoor 751-0603A

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

27

White Outdoor 951-10573

Fuel Tank 2.75 Gal. (side fill)

$214.99

$

Usually ships in 3-6 days

0

28

White Outdoor 931-06540

Lens LH - Style "Y"

$14.99

$

Usually ships in 3-6 days

0

29

White Outdoor 931-06539

Lens RH - Style "Y"

$16.99

$

Usually ships in 3-6 days

0

29

White Outdoor 931-06564

Lens (Style G)

$44.99

$

Usually ships in 3-6 days

0

29

White Outdoor 777X43285

Reflector Label

$

$

Not available

31

White Outdoor 925-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

32

White Outdoor 925-0963

Miniature Lamp 12V Socket Type

$7.49

$

In Stock, Qty 5

0

33

White Outdoor 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

34

White Outdoor 925-04230B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

White Outdoor 746-04364

Throttle/Choke Cont. Cable 25" Lg. (Single)

Note: Model 13AV91GS897

$48.99

$

In Stock, only 3 left!

0

35

White Outdoor 946-04542

Throttle/Choke Cont. Cable 46.5" Lg.(Twin)

Note: Model 13AP91YT501

$47.99

$

In Stock, only 1 left!

0

36

White Outdoor 925-04036C

Ammeter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

37

White Outdoor 925-1745A

Ignition Key w/Plastic Cover

$17.99

$

In Stock, Qty 20+

0

38

White Outdoor 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

39

White Outdoor 683-04219B

Bumper Assembly

Variations

White Outdoor 683-04219B-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

White Outdoor 683-04219B-0606

BUMPER ASSY-UNIVERSAL - MAJESTIC ORANGE (0606)

$61.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

40

White Outdoor 912-3000

Hex Lock-Nut 3/8-16 Gr.B
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

41

White Outdoor 738-0143

Shoulder Scr. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 714-04061

Quick Pin 1/2" dia. x 0.50

$21.99

$

In Stock, Qty 20+

0

43

White Outdoor 751-0659D

Fuel Tank 2.0 Gal. (top fill)

$84.99

$

In Stock, Qty 5

0

43

White Outdoor 751-0658E

Fuel Tank 3.0 Gal. (top fill)

$115.99

$

In Stock, only 3 left!

0

45

White Outdoor 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

46

White Outdoor 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

47

White Outdoor 951-04308

Tank Ass'y 1.36 Gal.

Note: Model 13AP91YT501

$186.99

$

Usually ships in 3-6 days

0

48

White Outdoor 951-12179

Cap-Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

49

White Outdoor 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 751-12118

Roll over Valve

$35.99

$

In Stock, only 2 left!

0

51

White Outdoor 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

52

White Outdoor 735-04170

Fuel Gasket

$5.49

$

Usually ships in 3-6 days

0

53

White Outdoor 951-04312

Fuel Tank 2.06 Gal. (side fill)

Note: Model 13AV91GS897

$206.99

$

Usually ships in 3-6 days

0

White Outdoor 925-04105

Harness (Man PTO/RMC/Hr. Meter)

Note: Model 13AV91GS897, Not shown, RMC® (Reverse Mowing Control)

$214.99

$

Usually ships in 3-6 days

0

White Outdoor 925-04104

Harness (Elect. PTO/RMC/Hr. Meter)

Note: Model 13AP91YT501, Not shown, RMC® (Reverse Mowing Control)

$220.99

$

Usually ships in 3-6 days

0
