V 90 GS (13AV90GS897) - Columbia 42" Lawn Tractor (2011) Transmission Parts Diagram

42" Lawn Tractor

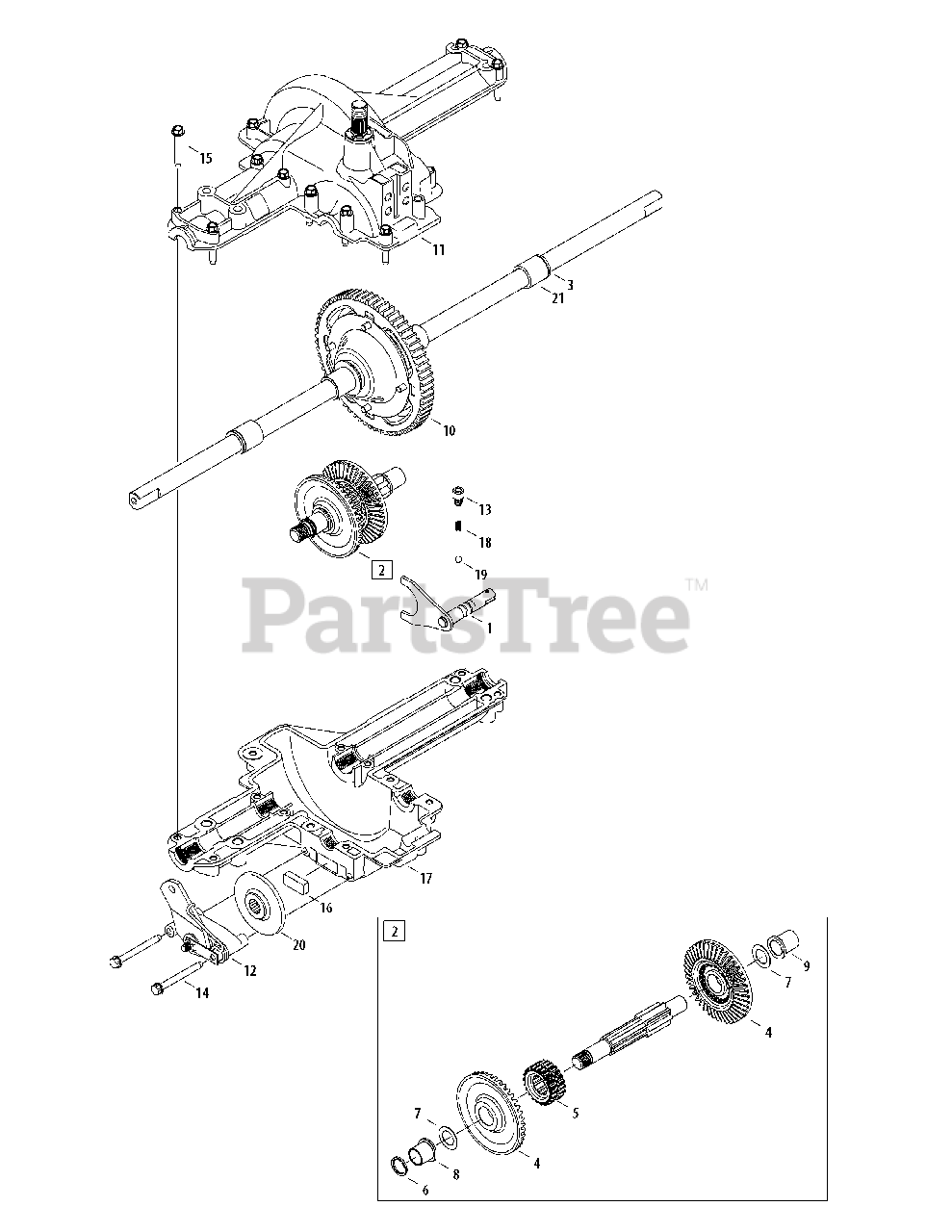

Transmission Parts Diagram

  • Title

1

White Outdoor 911-0011

Detent Shaft Assembly

$42.99

$

In Stock, only 3 left!

0

2

White Outdoor 911-04091

Drive Shaft Ass'y (Incl. Ref. 3-9)
(Superseded to 911-05051)

$155.99

$

In Stock, only 2 left!

0

3

White Outdoor 921-0338

Seal

$7.49

$

In Stock, Qty 20+

0

4

White Outdoor 917-04479B

Bevel Gear 42T

$29.99

$

In Stock, only 2 left!

0

5

White Outdoor 718-04381P

Single Speed Clutch Collar

$18.99

$

In Stock, only 1 left!

0

6

White Outdoor 721-0213

Seal .625 x .812 x .94

$10.99

$

In Stock, only 1 left!

0

7

White Outdoor 936-0336

Flat Washer 5/8 ID x 1.0 OD x .030

Note: See diagram note

$4.49

$

In Stock, Qty 7

0

7

White Outdoor 936-0337

Flat Washer 5/8 ID x 1.0 OD x 0.040

$4.49

$

In Stock, Qty 9

0

7

White Outdoor 936-0349

Flat Washer 5/8 ID x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0494

Flat Washer .632" ID x 1.0 OD x .035

$4.99

$

In Stock, only 4 left!

0

8

White Outdoor 936-0495

Thrust Wash. 5/8" ID x 1.0" OD x .025
(Superseded to 736-0495)

$4.49

$

In Stock, only 3 left!

0

9

White Outdoor 741-04443

Flange Bearing 5/8 x 3/4 x 3/4
(Superseded to 741-05096)

$4.49

$

In Stock, only 1 left!

0

9

White Outdoor 741-04442

Flange Bearing 5/8 x 3/4 x 15/16

$3.99

$

In Stock, only 1 left!

0

10

White Outdoor 918-04619

Differential Assembly

$238.99

$

In Stock, only 1 left!

0

11

White Outdoor 919-04187

Upper Housing
(Superseded to 919-04187A)

$164.99

$

In Stock, only 2 left!

0

12

White Outdoor 961-0001

Brake Ass'y

$57.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-04731

S-Tap ping Screw 5/16-18 x .375

$7.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-1206

Hex Wash. Hd. Self-Tap Screw. 1/4-20

$7.49

$

In Stock, Qty 6

0

15

White Outdoor 710-1325

S-Tap ping Screw 1/4-10 x 1.625

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor 917-0678

Brake Puch

$7.49

$

In Stock, Qty 5

0

17

White Outdoor 919-04329

Lower Housing
(Superseded to 919-04329B)

$85.99

$

Usually ships in 3-6 days

0

18

White Outdoor 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 741-0862

Ball Detent .250 Dia.

$4.49

$

In Stock, only 1 left!

0

20

White Outdoor 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

21

White Outdoor 941-0340

Sleeve Bearing 3/4 ID x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

Grease (14 oz.)

Note: Purchase locally

$

$

Not available
