V 90 GS (13AV90GS897) - Columbia 42" Lawn Tractor (2011) Steering Parts Diagram

42" Lawn Tractor

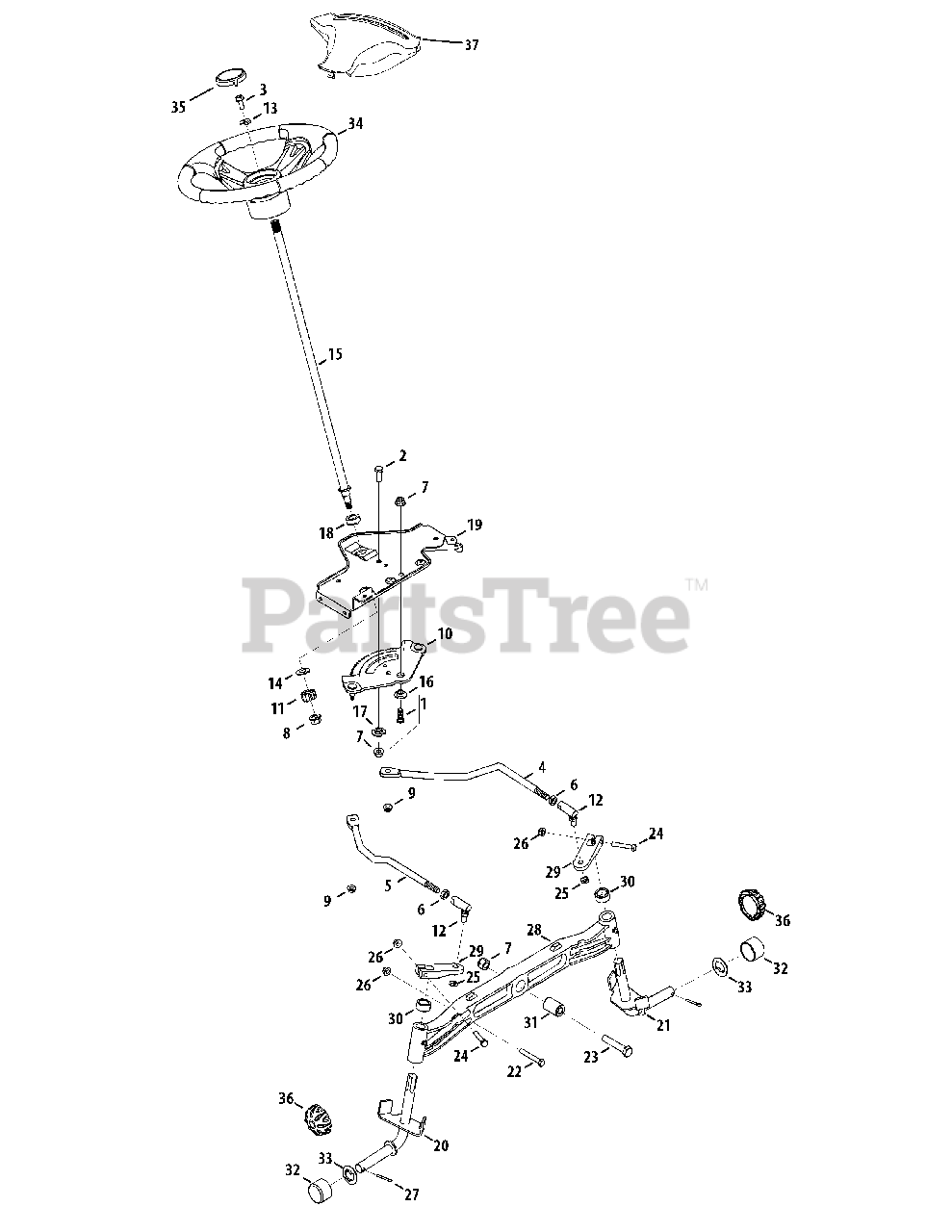

Steering Parts Diagram

  • Title

1

White Outdoor 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.99

$

In Stock, Qty 5

0

4

White Outdoor 711-04998

Link, Drag LH

$27.99

$

In Stock, only 1 left!

0

5

White Outdoor 711-04999

Link, Drag RH

$27.99

$

In Stock, only 1 left!

0

6

White Outdoor 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 717-1550F

Steering Gear, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

11

White Outdoor 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

12

White Outdoor 923-0448A

Ball Joint, 7/16 - 20

$24.99

$

In Stock, Qty 20+

0

13

White Outdoor 936-3004

Flat Washer .406 ID x .875 DE x .105
(Superseded to 736-3004)

$

$

Not available

14

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 738-04263

Steering Shaft .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

15

White Outdoor 738-04262

Steering Shaft .625 OD x 25.00

$66.99

$

In Stock, only 2 left!

0

16

White Outdoor 738-04363

Shoulder Spacer .385 x 1.25 x .3025

$5.99

$

In Stock, only 4 left!

0

17

White Outdoor 738-04364B

Spacer .38x 1.375 Special

$6.49

$

In Stock, only 1 left!

0

18

White Outdoor 741-04237B

Hex Flange Bearing 5/8

$6.99

$

In Stock, Qty 18

0

19

White Outdoor 783-06043

Steering Support Bracket

Variations

White Outdoor 783-06043-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 638-04032

Axle Ass’y RH .750 Dia.

Note: 42" Deck with 2 wheel mounts

Variations

White Outdoor 638-04032-0637

AXLE ASSY-RH 15" - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

20

White Outdoor 638-04021

Axle Ass’y RH .750 Dia.

Note: 42" Deck with 4 wheel mounts

Variations

White Outdoor 638-04021-0637

Steering Axle, RH - POWDER BLACK (0637)

$54.99

$

In Stock, only 1 left!

0

$54.99

$

In Stock, only 1 left!

0

21

White Outdoor 638-04033

Axle Ass’y LH .750 Dia.

Note: 42" Deck with 2 wheel mounts

Variations

White Outdoor 638-04033-0637

AXLE ASSY-LH 15" - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

21

White Outdoor 638-04027

Axle Ass’y LH .750 Dia.

Note: 42" Deck with 4 wheel mounts

Variations

White Outdoor 638-04027-0637

Steering Axle, LH - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0395

Hex Bolt 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

23

White Outdoor 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

24

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

25

White Outdoor 912-0214

Hex Cent L-Nut 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

26

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 719-04413A

Pivot Bar (cast)

$241.99

$

Usually ships in 3-6 days

0

29

White Outdoor 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 2 left!

0

30

White Outdoor 748-04068

Spacer .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 750-05280

Spacer .385 x 1.0 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

White Outdoor 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-04228A

Flat Washer .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

34

White Outdoor 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

34

White Outdoor 631-04008A

Steering Wheel, Softgrip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

35

White Outdoor 731-04040

Steering Wheel Cap (spig) logo

$9.99

$

In Stock, only 1 left!

0

35

White Outdoor 731-04039

Steering Wheel Cap (w/o spig) logo

$8.49

$

In Stock, only 1 left!

0

36

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 731-04065A

Steering Wheel Cover (w/sprigs)

$14.99

$

Usually ships in 3-6 days

0
