V 90 GS (13AV90GS897) - Columbia 42" Lawn Tractor (2011) Drive Assembly Parts Diagram

42" Lawn Tractor

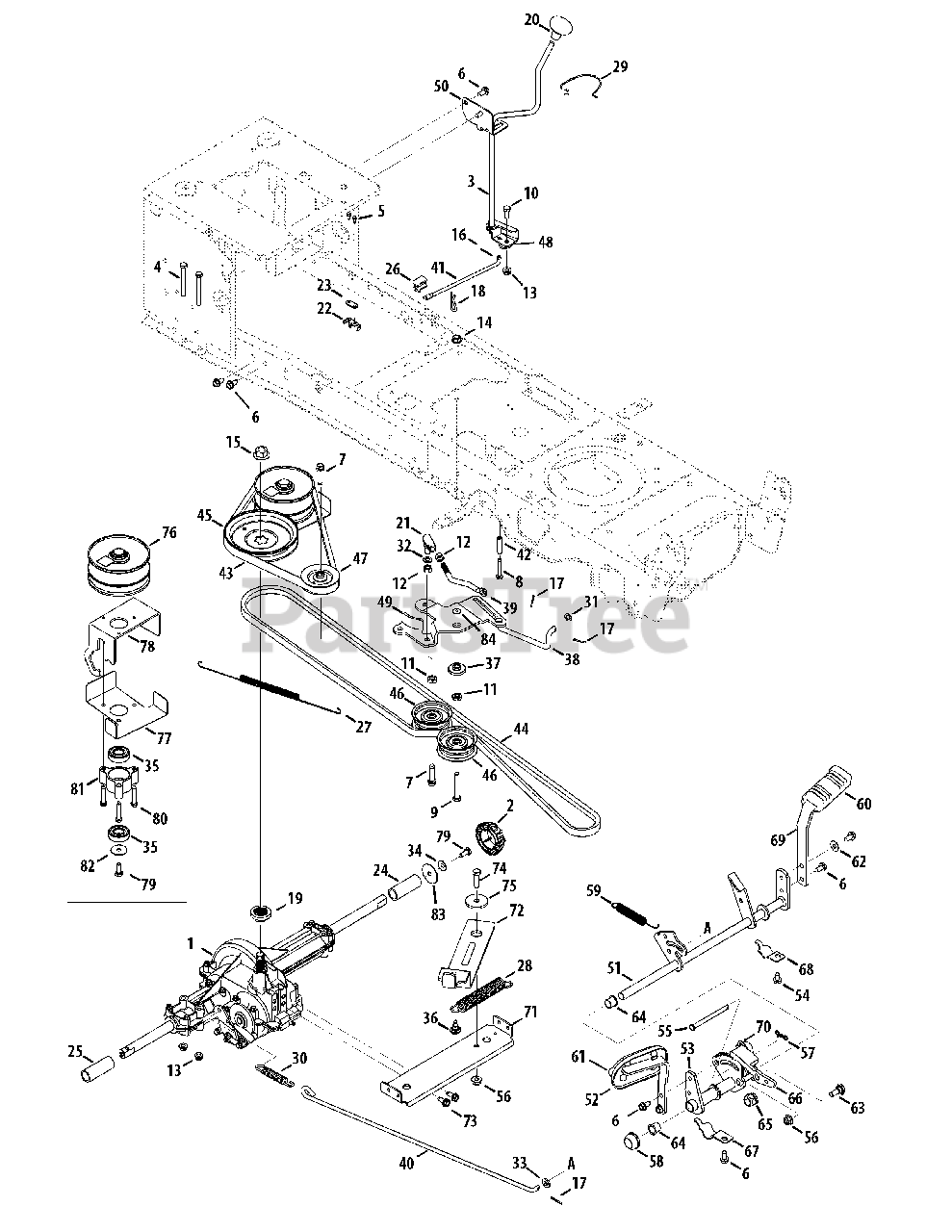

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 918-04566

Transaxle Ass’y
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 647-04035

Shift Lever Ass’y

$37.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0176

Hex Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Screw #8-.50

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-04484

Hex Wash Hd. Tapp Screw. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1007

Hex L-Wash HD Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

8

White Outdoor 710-1026

Hex TT-Tap Screw 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

9

White Outdoor 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3025

Screw-Hex Cap

$3.99

$

In Stock, Qty 8

0

11

White Outdoor 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

14

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0700

Flange Nut

$10.99

$

In Stock, only 1 left!

0

16

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

White Outdoor 914-0209

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

19

White Outdoor 718-04407

Hub, 5/8" spline

$12.99

$

In Stock, Qty 20+

0

20

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

21

White Outdoor 923-3018

Drag Link Ball Joint

$16.99

$

In Stock, Qty 20+

0

22

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

23

White Outdoor 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

24

White Outdoor 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

25

White Outdoor 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

26

White Outdoor 731-06894

Shift Plate Bearing

$6.49

$

In Stock, only 1 left!

0

27

White Outdoor 732-04612

Extension Spring .70 OD x 12.0

$16.99

$

In Stock, only 1 left!

0

28

White Outdoor 732-04616B

Extension Spring .97 OD x 6.18

$14.99

$

In Stock, only 2 left!

0

29

White Outdoor 732-0525

Complete Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

White Outdoor 732-0716D

Extension Spring .59 OD x 4.0

$13.99

$

In Stock, only 1 left!

0

31

White Outdoor 936-0140

Flat Washer .385 ID x .62 OD x .06
(Superseded to 736-0140)

$

$

Not available

32

White Outdoor 936-0169

Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 941-0600

Ball Bearing 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

36

White Outdoor 738-04091A

Shoulder Screw 5/16-18, .43 x .29

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 738-04420

Shoulder Spacer 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

38

White Outdoor 747-04957A

Footpedal Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

39

White Outdoor 747-04959A

Idler adjustment Rod

$12.99

$

Usually ships in 3-6 days

0

40

White Outdoor 747-04984

Brake Rod

$21.99

$

In Stock, only 1 left!

0

41

White Outdoor 747-05109

Shift Rod
(Superseded to 747-05243)

$11.99

$

In Stock, only 3 left!

0

42

White Outdoor 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

43

White Outdoor 954-04208

V-Belt
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

44

White Outdoor 954-0467A

V-Belt

$50.99

$

In Stock, Qty 20+

0

45

White Outdoor 956-04002

Pulley, V-Type, 7.25 dia.

$27.99

$

In Stock, Qty 19

0

46

White Outdoor 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

47

White Outdoor 756-04325

Idler Pulley V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

48

White Outdoor 783-04595A

Shift adjustment Bracket

$10.99

$

In Stock, only 4 left!

0

49

White Outdoor 783-06027A

Idler Bracket (Center Double)
(Superseded to 783-06027B)

$

$

Not available

50

White Outdoor 783-06132

Shift Bracket F-N-R

$8.99

$

Usually ships in 3-6 days

0

51

White Outdoor 647-04152B

Brake Control Ass’y
(Superseded to 647-04152D)

$

$

Not available

52

White Outdoor 683-0266

AutoDrive Pedal Assembly

$

$

Not available

53

White Outdoor 683-04489

Pedal Bracket Assembly
(Superseded to 753-08028)

$

$

Not available

54

White Outdoor 710-0604A

Self-tap ping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 711-05068

Clevis Pin 5/16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

56

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

58

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

59

White Outdoor 732-04587

Extension Spring .63 dia. x 4.95

$7.49

$

In Stock, Qty 12

0

60

White Outdoor 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

61

White Outdoor 735-0662

AutoDrive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

64

White Outdoor 741-0495

Nyliner Flanged Brg.

$4.99

$

In Stock, Qty 20+

0

65

White Outdoor 741-3065B

Hex Flanged Bearing .628 ID

$8.49

$

In Stock, Qty 11

0

66

White Outdoor 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

67

White Outdoor 783-05914

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

68

White Outdoor 783-05940

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

69

White Outdoor 783-06103A

Brake Pedal Bracket

Variations

White Outdoor 783-06103A-0637

PEDAL-FOOT BRAKE - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

70

White Outdoor 783-06278

Reinforcement Plate Bracket

$7.49

$

Usually ships in 3-6 days

0

71

White Outdoor 683-04520

Transmission Bracket Assembly

$35.99

$

Usually ships in 3-6 days

0

72

White Outdoor 683-04521

Idler Bracket Ass’y
(Superseded to 753-06662)

$22.99

$

In Stock, only 4 left!

0

73

White Outdoor 710-1260A

Hex Wash. Hd. Screw. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

74

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

75

White Outdoor 738-04162A

Shoulder Spacer .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

76

White Outdoor 956-04015A

Variable Speed Pulley Assembly 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

77

White Outdoor 683-04522

Belt Keeper Ass’y
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

78

White Outdoor 683-04612

Variable Bracket Ass’y
(Superseded to 783-06587A)

Variations

White Outdoor 683-04612-0637

Variable Speed Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

79

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 1 left!

0

81

White Outdoor 718-04261

Bearing Cup

$20.99

$

Usually ships in 3-6 days

0

82

White Outdoor 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 7

0

83

White Outdoor 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

84

White Outdoor 936-0344

Flat Washer .385 x 1.0 x .03
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0
