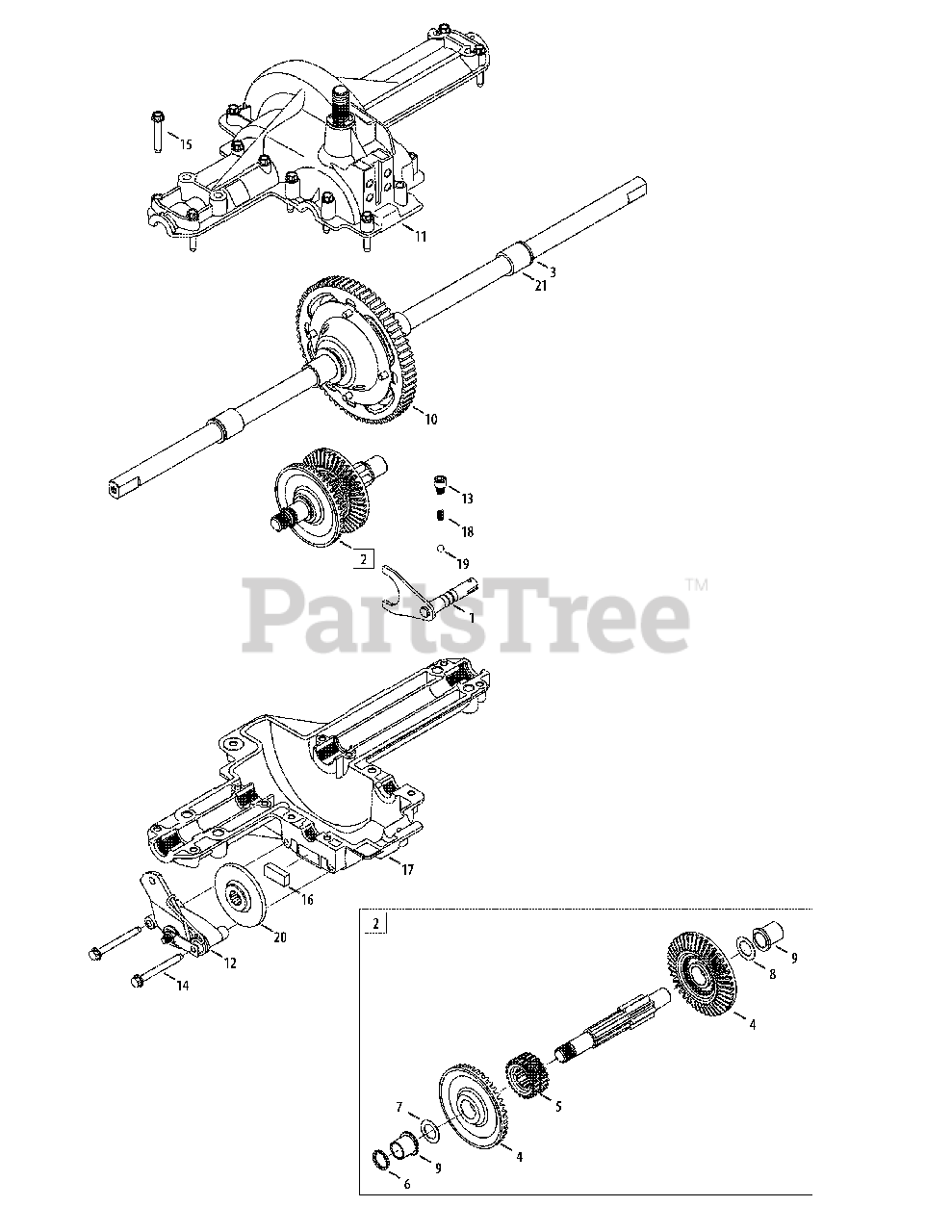

V 90 GS (13AV90GS897) - Columbia 42" Lawn Tractor (2010) Transmission Parts Diagram

42" Lawn Tractor

Transmission Parts Diagram

  • Title
1

White Outdoor 911-0011

Detent Shaft Ass’y

$42.99

$

In Stock, only 3 left!

0

2

White Outdoor 911-04091

Drive Shaft
(Superseded to 911-05051)

$155.99

$

In Stock, only 2 left!

0

3

White Outdoor 921-0338

Oil Seal .750 x 1.00 x .125

$7.49

$

In Stock, Qty 20+

0

4

White Outdoor 917-04479

Bevel Gear, 42 tooth spline
(Superseded to 917-04479B)

$29.99

$

In Stock, only 2 left!

0

5

White Outdoor 718-04381P

Single Speed Clutch Collar

$18.99

$

In Stock, only 1 left!

0

6

White Outdoor 721-0213

Seal .625 x .812 x .094

$10.99

$

In Stock, only 1 left!

0

7

White Outdoor 936-0336

Flat Washer 5/8 ID x 1.0 OD x .030

Note: as required

$4.49

$

In Stock, Qty 7

0

7

White Outdoor 936-0337

Flat Washer 5/8 ID x 1.0 OD x 0.040

Note: as required

$4.49

$

In Stock, Qty 9

0

7

White Outdoor 936-0349

Flat Washer 5/8 ID x 1.0 x .020

Note: as required

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0494

Thrust Wash. 5/8" ID x 1.0" OD x .035

Note: as required

$4.99

$

In Stock, only 4 left!

0

7

White Outdoor 936-0495

Thrust Wash. 5/8" ID x 1.0" OD x .025
(Superseded to 736-0495)

Note: as required

$4.49

$

In Stock, only 3 left!

0

8

White Outdoor 941-0336

Flange Bearing 5/8 x 3/4

$11.99

$

In Stock, only 4 left!

0

9

White Outdoor 941-0337

Flange Bearing 5/8 x 15/16

$10.99

$

In Stock, Qty 6

0

10

White Outdoor 918-04567A

Differential Assembly
(Superseded to 918-04619)

$238.99

$

In Stock, only 1 left!

0

11

White Outdoor 919-04187

Upper Housing
(Superseded to 919-04187A)

$164.99

$

In Stock, only 2 left!

0

12

White Outdoor 961-0001

Brake Assembly

$57.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-04731

Self-Tap Scr. 5/16-18 x .375

$7.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-1206

Self-Tap Scr. 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

15

White Outdoor 710-1325

Self-Tap Scr. 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

16

$7.49

$

In Stock, Qty 5

0

17

White Outdoor 919-04329

Lower Housing
(Superseded to 919-04329B)

$85.99

$

Usually ships in 3-6 days

0

18

White Outdoor 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 741-0862

Ball Detent .250 Dia.

$4.49

$

In Stock, only 1 left!

0

20

$15.99

$

In Stock, only 1 left!

0

21

White Outdoor 941-0340

Sleeve Bearing 3/4 ID x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

White Outdoor 737-0300A

Grease, Benalene

Note: Not shown

$34.99

$

In Stock, Qty 19

0
