V 90 GS (13AV90GS897) - Columbia 42" Lawn Tractor (2010) Seat & Fender Parts Diagram

42" Lawn Tractor

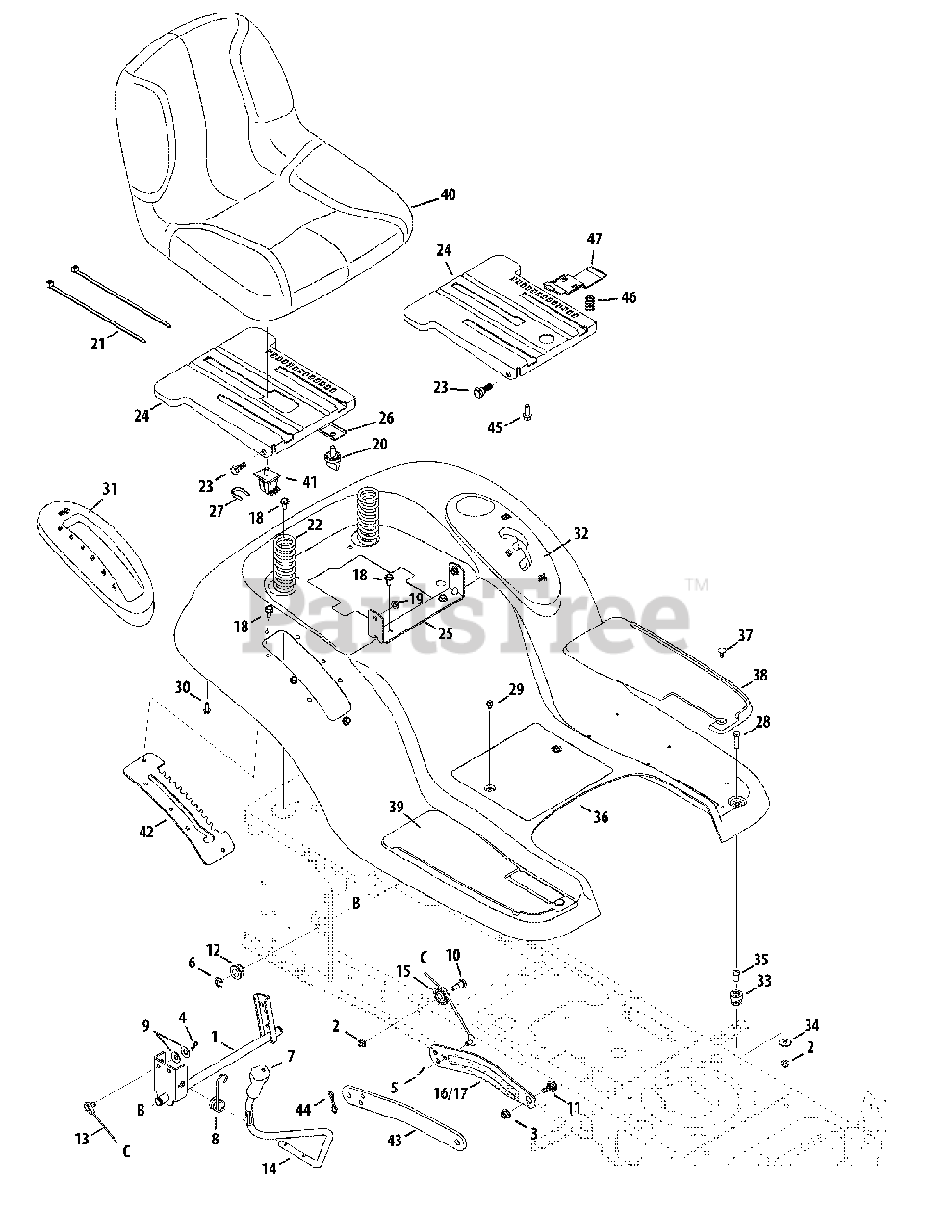

Seat & Fender Parts Diagram

  • Title

1

White Outdoor 683-04223-0637

Lift Shaft Ass’y

$

$

Not available

2

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

6

White Outdoor 716-0106A

E-ring .625 Shaft

$5.49

$

In Stock, only 2 left!

0

7

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

8

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

9

White Outdoor 736-0105

Cupped Washer .375 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 738-0138A

Shoulder Scr. .437 Dia x .47

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 938-0380

Shoulder Screw .500 x .25 (42")
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

12

White Outdoor 741-0225

Hex Flange Bearing .630 ID
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

13

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

14

White Outdoor 747-04962A

Lift Handle

$37.99

$

In Stock, only 1 left!

0

15

White Outdoor 756-04331

Roller Pulley

$6.99

$

In Stock, Qty 16

0

16

White Outdoor 783-04494C-0637

Lift Arm RH

$21.99

$

In Stock, only 1 left!

0

17

White Outdoor 783-04711C-0637

Lift Arm LH

$24.99

$

Usually ships in 3-6 days

0

18

White Outdoor 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 720-04061

Knob

$5.49

$

In Stock, Qty 20+

0

21

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

22

White Outdoor 732-04561

Compression Spring 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

23

White Outdoor 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 783-06049-0606

Seat Mounting Bracket

$68.99

$

Usually ships in 3-6 days

0

25

White Outdoor 783-06088-0606

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

26

White Outdoor 783-06266-0637

Seat Bracket, Knob adjustment

$8.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-06448

Switch Retaining Clip

$5.99

$

In Stock, only 3 left!

0

28

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

31

White Outdoor 731-06795

Lift Lever Cover

$24.99

$

Usually ships in 3-6 days

0

32

White Outdoor 931-2104C

Shift Lever Cover

$35.99

$

Usually ships in 3-6 days

0

33

White Outdoor 735-0690

Grommet .4375 ID x .75

$11.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-3078

Flat Washer .344 ID x 1.0

$4.49

$

In Stock, only 4 left!

0

35

White Outdoor 750-3310

Flange Spacer .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

36

White Outdoor 783-06259-0606

Fender

$339.99

$

Usually ships in 3-6 days

0

37

White Outdoor 726-3046

Foot Pad Clips (Not Shown)

$3.99

$

In Stock, Qty 16

0

38

White Outdoor 735-04138

Foot Pad LH

$16.99

$

Usually ships in 3-6 days

0

39

White Outdoor 735-04158

Foot Pad RH

$16.99

$

Usually ships in 3-6 days

0

40

White Outdoor 757-04086

Seat, High Back
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

41

White Outdoor 925-05013

Seat Switch

$31.99

$

In Stock, only 2 left!

0

42

White Outdoor 783-06443-0637

Lift Bracket 6 positions

$20.99

$

Usually ships in 3-6 days

0

42

White Outdoor 783-06039-0637

Lift Bracket 12 positions

$

$

Not available

43

White Outdoor 783-05546A-0637

Lift Link (46")

$20.99

$

In Stock, only 2 left!

0

44

White Outdoor 714-04040

Bow-Tie Cotter Pin (46")

$1.49

$

In Stock, Qty 20+

0
