V 761 F (13AV761F597) - Columbia 38" Lawn Tractor (2008) Upper Frame & Battery Parts Diagram

38" Lawn Tractor

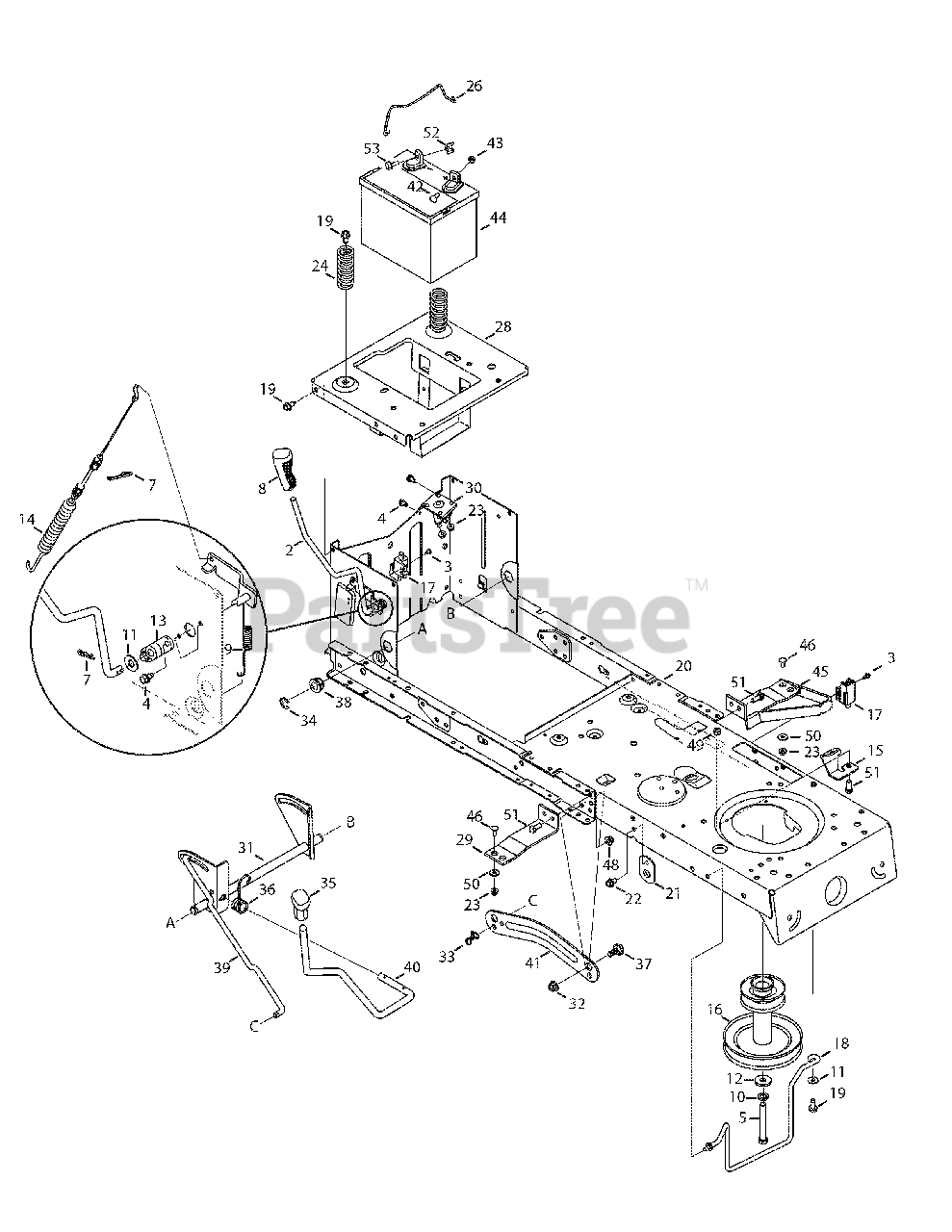

Upper Frame & Battery Parts Diagram

  • Title

1

White Outdoor 783-0678C

Deck Lift Link

Variations

White Outdoor 783-0678C-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678C-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0678C-4044

Lift Deck Link - CRAFTSMAN RED (4044)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678C-0606

LINK-LIFT DECK - MAJESTIC ORANGE (0606)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678C-0638

LINK-LIFT DECK - MTD/TROY-BILT RED (0638)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678C-0691

LINK-LIFT DECK - BLACK JACK (0691)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678C-0709

LINK-LIFT DECK - MASTERCRAFT GREEN (0709)

$29.99

$

In Stock, only 1 left!

0

$24.99

$

Usually ships in 3-6 days

0

2

White Outdoor 647-04096

PTO Handle

Variations

White Outdoor 647-04096-0637

PTO Handle Assembly, LT - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04096-0638

PTO Handle Assembly, LT - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04096-4008

HANDLE ASSY-PTO - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$41.99

$

In Stock, only 1 left!

0

3

White Outdoor 738-04237A

Shoulder Scr #10-16 x .50" Lg.

$6.49

$

In Stock, Qty 7

0

4

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-04608

Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5

$6.99

$

In Stock, Qty 7

0

6

White Outdoor 783-05389

Frame Brace Bracket
(Superseded to 783-05389A)

Variations

White Outdoor 783-05389-0637

BRACKET-BRACE FRAM - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

7

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 720-04049A

Handle Grip 3/8

$16.99

$

Usually ships in 3-6 days

0

9

White Outdoor 732-04276A

Extension Spring

$9.99

$

In Stock, only 1 left!

0

10

White Outdoor 736-0171

Lockwasher 7/16 ID

$4.49

$

In Stock, only 4 left!

0

11

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

13

White Outdoor 741-04119

PTO Bearing
(Superseded to 741-04119A)

$4.99

$

In Stock, Qty 10

0

14

White Outdoor 746-04173B

Deck Engagement Cable
(Superseded to 946-04173E)

$59.99

$

In Stock, Qty 15

0

15

White Outdoor 783-04753

Frame Support Bracket

Variations

White Outdoor 783-04753-0637

BRACKET:SUPPORT:FR - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0606

BRACKET:SUPPORT:FR - MAJESTIC ORANGE (0606)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0638

BRACKET:SUPPORT:FR - MTD/TROY-BILT RED (0638)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0709

BRACKET:SUPPORT:FR - MASTERCRAFT GREEN (0709)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0691

BRACKET:SUPPORT:FR - BLACK JACK (0691)

$

$

Not available

$69.99

$

Usually ships in 3-6 days

0

16

White Outdoor 756-04196A

Engine Pulley 3.39 x 6.12 dia.

$90.99

$

In Stock, only 1 left!

0

17

White Outdoor 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 13

0

18

White Outdoor 747-04332A

Belt Keeper Rod (38" Deck)

$48.99

$

In Stock, Qty 8

0

18

White Outdoor 683-04443

Belt Keeper Rod (42" Deck)
(Superseded to 747-04857)

Variations

White Outdoor 683-04443-0637

Belt Keeper Rod, 42" - POWDER BLACK (0637)

$22.99

$

In Stock, Qty 11

0

$22.99

$

In Stock, Qty 11

0

19

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 683-04450

Frame

Variations

White Outdoor 683-04450-0638

FRAME ASSY-RIDER LT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-04450-0483

FRAME ASSY-RIDER LT - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-04450-0606

FRAME ASSY-RIDER LT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-04450-0637

FRAME ASSY-RIDER LT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04450-0650

FRAME ASSY-RIDER LT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04450-0665

FRAME ASSY-RIDER LT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04450-0691

FRAME ASSY-RIDER LT - BLACK JACK (0691)

$

$

Not available

$944.99

$

Usually ships in 3-6 days

0

21

White Outdoor 783-04536B

Pedal Support Bracket

Variations

White Outdoor 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0604A

Hex Wash HD TT Scr 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

25

White Outdoor 783-04462

Lift Bracket
(Superseded to 783-04462A)

$10.99

$

Usually ships in 3-6 days

0

26

White Outdoor 683-04448

Battery Hold Down Rod
(Superseded to 683-04448-0637)

Variations

White Outdoor 683-04448-0637

Battery Rod Assembly, LT - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 14

0

$10.99

$

In Stock, Qty 14

0

27

White Outdoor 783-04869A

Battery Bracket

Variations

White Outdoor 783-04869A-0637

Battery Bracket, LH - POWDER BLACK (0637)

$9.49

$

In Stock, Qty 20+

0

White Outdoor 783-04869A-0638

Battery Bracket - MTD/TROY-BILT RED (0638)

$9.49

$

In Stock, Qty 20+

0

White Outdoor 783-04869A-0709

BRACKET-BATTERY LT - MASTERCRAFT GREEN (0709)

$9.49

$

In Stock, Qty 20+

0

White Outdoor 783-04869A-0691

BRACKET-BATTERY LT - BLACK JACK (0691)

$9.49

$

In Stock, Qty 20+

0

$7.49

$

Usually ships in 3-6 days

0

28

White Outdoor 783-04548C

Seat Frame Bracket
(Superseded to 783-04548D-0637)

Variations

White Outdoor 783-04548C-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

29

White Outdoor 783-04637

Running Board Bracket

Variations

White Outdoor 783-04637-0637

BRACKET-RUNNING BOARD - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0606

BRACKET-RUNNING BOARD - MAJESTIC ORANGE (0606)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0638

BRACKET-RUNNING BOARD - MTD/TROY-BILT RED (0638)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0691

BRACKET-RUNNING BOARD - BLACK JACK (0691)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0709

BRACKET-RUNNING BOARD - MASTERCRAFT GREEN (0709)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

31

White Outdoor 683-04155A

Lift Shaft

Variations

White Outdoor 683-04155A-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04155A-0638

SHAFT ASSY-LIFT - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

32

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 714-04043

Cotter Pin .08 x 1.56 Intern - R.H.

$4.99

$

In Stock, Qty 18

0

33

White Outdoor 714-0470

Cotter Pin .08 x 1.25 Intern - LH

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 716-0106A

"E" Ring .625 Dia.

$5.49

$

In Stock, only 2 left!

0

35

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

36

White Outdoor 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

37

White Outdoor 738-04130

Shoulder Screw .625 x .175, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

38

White Outdoor 741-0225

Hex Flange Bearing .630 ID
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

39

White Outdoor 747-04393

Lift Rod

$23.99

$

In Stock, Qty 9

0

40

White Outdoor 747-04282

Deck Lift Handle

$35.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04494B

Deck Lift Arm RH
(Superseded to 783-04494C)

Variations

White Outdoor 783-04494B-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 12

0

White Outdoor 783-04494B-4008

ARM-DECK LIFT RH - WINE RED (4008)

$21.99

$

In Stock, Qty 12

0

$20.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04711B

Deck Lift Arm LH
(Superseded to 783-04711C)

Variations

White Outdoor 783-04711B-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 13

0

White Outdoor 783-04711B-4008

ARM-DECK LIFT LH - WINE RED (4008)

$24.99

$

In Stock, Qty 13

0

$24.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-04466

Carriage Bolt 1/4-10 x .75 Gr. 5
(Superseded to 1186310)

$3.99

$

Usually ships in 3-6 days

0

43

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 725-1707D

Battery 245 CCA (Dry)
(Superseded to 925-1707D)

$

$

Not available

45

White Outdoor 683-04195

Support Bracket Ass'y

Variations

White Outdoor 683-04195-0606

BRACKET, RUNNING BOARD - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0637

BRACKET, RUNNING BOARD - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0638

BRACKET, RUNNING BOARD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0691

BRACKET, RUNNING BOARD - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0709

BRACKET, RUNNING BOARD - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

48

White Outdoor 712-04063

Hex L-Flg Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-0429

Hex L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 736-0173

Flat Washer .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 712-3087

Wingnut

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 738-1132

Shoulder Screw .25 x .15: 1/4-20

$5.49

$

In Stock, only 2 left!

0
