V 761 F (13AV761F597) - Columbia 38" Lawn Tractor (2008) Lower Frame & Wheel Assembly Parts Diagram

38" Lawn Tractor

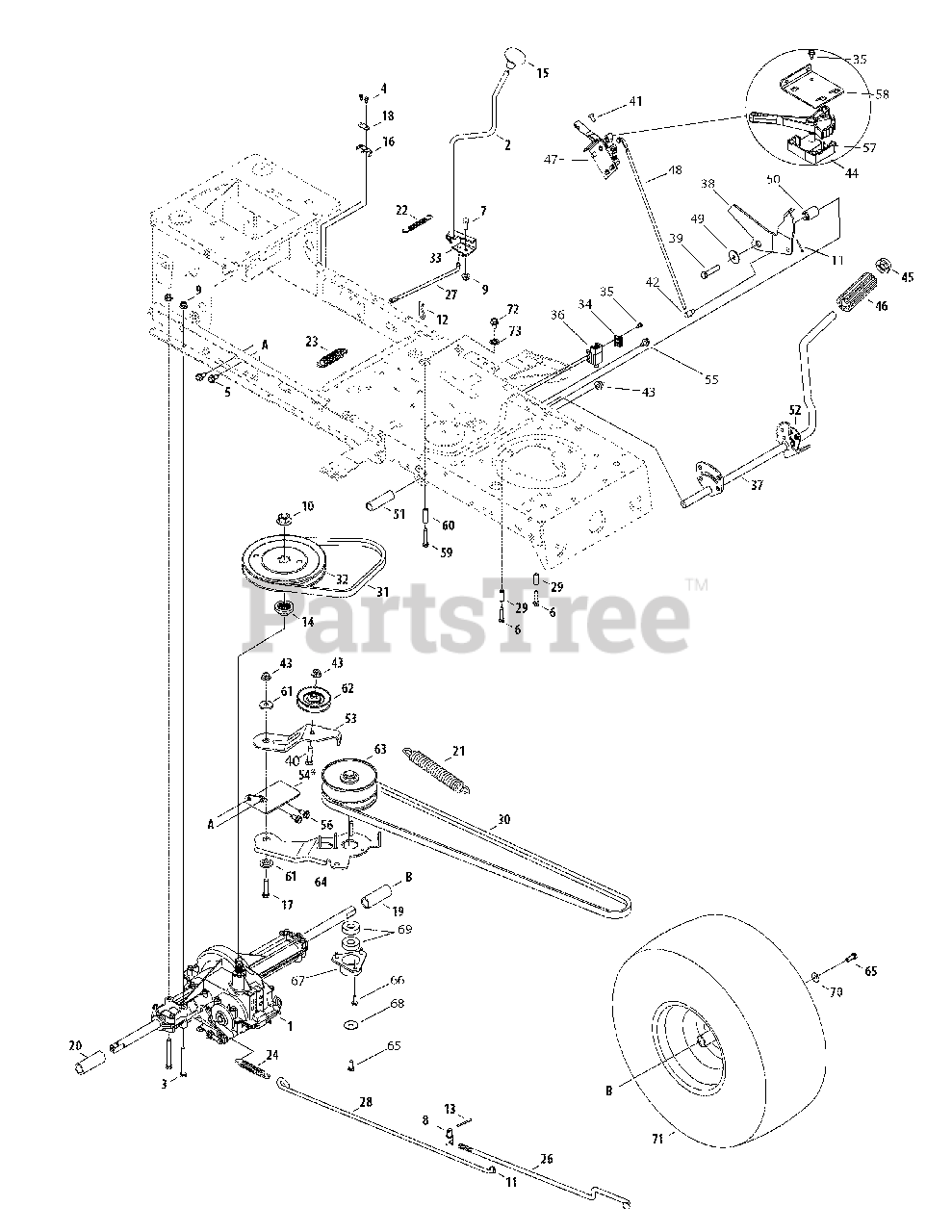

Lower Frame & Wheel Assembly Parts Diagram

  • Title

1

White Outdoor 618-04566

Transmission Ass’y
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

White Outdoor 647-04035

Shift Lever Ass’y

$37.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0176

Hex Scr 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

7

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 711-04075A

Ferrule
(Superseded to 911-04075A)

$11.99

$

In Stock, only 3 left!

0

9

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0700

Flange Nut

$10.99

$

In Stock, only 1 left!

0

11

White Outdoor 714-0111

Cotter Pin 3/32 dia x 1.00 Lg.

$4.99

$

In Stock, Qty 13

0

12

White Outdoor 714-0209

Cotter Pin
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

13

White Outdoor 714-0470

Cotter Pin 1/8" Dia x 1.25

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 718-0758A

Pulley Hub 5/8" Spline
(Superseded to 718-04407)

$12.99

$

In Stock, Qty 20+

0

15

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

16

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

17

White Outdoor 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

19

White Outdoor 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

20

White Outdoor 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

21

White Outdoor 732-04076A

Spring, Extension, 1.15 OD x 7.90

$13.99

$

In Stock, only 1 left!

0

22

White Outdoor 732-04488

Spring, Extension

$6.49

$

In Stock, Qty 20+

0

23

White Outdoor 732-04306

Spring, Extension, .80 OD x 3.28

$10.99

$

In Stock, only 1 left!

0

24

White Outdoor 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 1 left!

0

25

White Outdoor 736-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 1 left!

0

26

White Outdoor 747-04265

Control Rod, Variable Speed

$

$

Not available

27

White Outdoor 747-04277

Shift Rod

$

$

Not available

28

White Outdoor 747-04733A

Brake Rod

$21.99

$

Usually ships in 3-6 days

0

29

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

30

White Outdoor 754-04001A

Belt
(Superseded to 954-04001A)

$28.99

$

In Stock, Qty 20+

0

31

White Outdoor 754-0241A

Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 6

0

32

White Outdoor 756-04002

Pulley, V-Type, 7.25 dia.
(Superseded to 956-04002)

$27.99

$

In Stock, Qty 19

0

33

White Outdoor 783-04595

Shift Bracket, Adjustable
(Superseded to 783-04595A)

$10.99

$

In Stock, only 4 left!

0

34

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

35

White Outdoor 710-0224

Hex AB-Tap Scr #10 X .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

37

White Outdoor 647-04034C

Drive Pedal Assembly
(Superseded to 647-04034E)

Variations

White Outdoor 647-04034C-0606

PEDAL ASSY:DRIVE - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 647-04034C-0637

Drive Pedal Assembly - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

White Outdoor 647-04034C-0638

PEDAL ASSY:DRIVE - MTD/TROY-BILT RED (0638)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 647-04034C-0665

PEDAL ASSY:DRIVE - YARDMAN GREEN (0665)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 647-04034C-0650

PEDAL ASSY:DRIVE - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 647-04034C-0691

PEDAL ASSY:DRIVE - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

38

White Outdoor 783-04862

Latch Ass’y, Engagement (RMC)
(Superseded to 783-04862B)

$

$

Not available

38

White Outdoor 783-04903

Latch Ass’y, Engagement (w/o RMC)

Variations

White Outdoor 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

39

710-3114

Hex Screw 3/8-16 x 1.875 Gr. 5

$

$

Not available

40

White Outdoor 683-04225

6 Speed Shift Control Ass'y
(Superseded to 983-04225)

$

$

Not available

40

White Outdoor 683-04216

7 Speed Shift Control Ass'y
(Superseded to 983-04216)

$21.99

$

In Stock, only 2 left!

0

41

White Outdoor 710-04483

Screw, 1/4-20 x .5

$6.99

$

Usually ships in 3-6 days

0

42

White Outdoor 711-0736

Adjustment ferrule

$13.99

$

In Stock, only 2 left!

0

43

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 731-05361

Control Cover

$9.49

$

Usually ships in 3-6 days

0

45

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, only 4 left!

0

46

White Outdoor 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

47

White Outdoor 683-04216

Shift Lever - 6 Speed
(Superseded to 983-04216)

$21.99

$

In Stock, only 2 left!

0

47

731-05362A

Shift Lever - 7 Speed

$

$

Not available

48

White Outdoor 747-04430

Speed Selecter Control Rod

$21.99

$

Usually ships in 3-6 days

0

49

White Outdoor 738-0133

Flat Washer .411 ID x 1.25 OD x .10
(Superseded to 938-0102)

$

$

Not available

50

White Outdoor 750-04465

Flange Spacer .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 750-0802

Spacer .630 ID

$6.99

$

Usually ships in 3-6 days

0

52

White Outdoor 783-04536B

Pedal Support Bracket

Variations

White Outdoor 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

53

White Outdoor 683-04207

Idler Bracket
(Superseded to 753-05147)

$32.99

$

In Stock, only 2 left!

0

54

White Outdoor 683-04176A

Transmission Torque Bracket
(Superseded to 783-04567B)

$8.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

58

783-04830

Control Bracket

$

$

Not available

59

White Outdoor 710-1325

Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

61

White Outdoor 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

62

White Outdoor 756-04325

Flat Idler

$24.99

$

In Stock, Qty 20+

0

63

White Outdoor 656-04015

Variable Speed Pulley Ass’y 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

64

White Outdoor 683-04206

Variable Speed Bracket Ass’y
(Superseded to 753-05147)

$32.99

$

In Stock, only 2 left!

0

65

White Outdoor 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 710-0778

Hex Scrw 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 718-04261

Bearing Cup

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 7

0

69

White Outdoor 741-0124

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

70

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 634-0104

Wheel Assembly Complete, 20 x 8 x 8

Variations

White Outdoor 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0916

WHL ASSY 20 X 8 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0941

WHL ASSY 20 X 8 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0961

WHEEL ASM-20 X 8 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0991

WHEEL ASM COMP-20 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4009

WHEEL ASM COMP-20 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4028

WHEEL ASSY COMP-20 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0981

No Longer Available WHEEL ASM COMP-20 - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

71

White Outdoor 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Variations

White Outdoor 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

72

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 736-0222

Lockwasher 1/4"

$5.99

$

In Stock, only 3 left!

0
