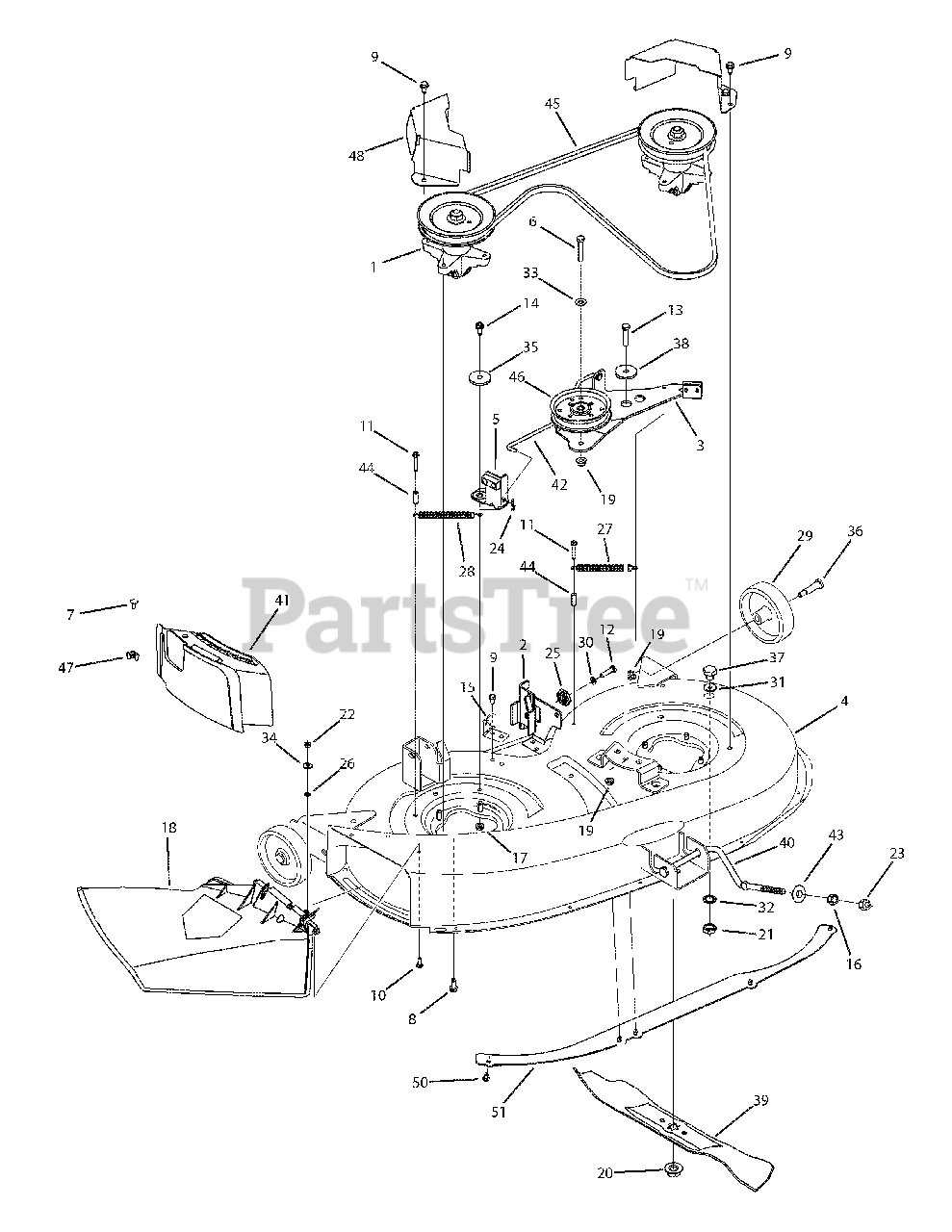

V 761 F (13AV761F597) - Columbia 38" Lawn Tractor (2008) Deck Assembly Parts Diagram

38" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 918-04474

Pulley Spindle Ass’y 5.75 dia.
(Superseded to 918-04474B)

$120.99

$

In Stock, Qty 9

0

1

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

White Outdoor 938-04241

Spindle Shaft:5.50 LG

Note: Not shown

$34.99

$

In Stock, only 1 left!

0

1

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

White Outdoor 750-04739

Spacer:.820x 1.150 x .480

Note: Not shown

$13.99

$

In Stock, Qty 6

0

1

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

White Outdoor 756-1188

Deck Pulley:5.75 Dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

2

White Outdoor 683-04228

Deck Hanger Brkt. Ass'y

Variations

White Outdoor 683-04228-0637

Deck Hanger Bracket Assembly - POWDER BLACK (0637)

$104.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04138B

Deck Brake Assembly
(Superseded to 683P04138C)

Variations

White Outdoor 683-04138B-0637

Brake Assembly, 42 - POWDER BLACK (0637)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138B-0606

Brake Assembly, 42 - MAJESTIC ORANGE (0606)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138B-0691

BRAKE ASSEMBLY 42" DECK - BLACK JACK (0691)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138B-4008

DECK BRAKE ASSY 42" DECK - WINE RED (4008)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138B-0650

BRAKE ASSEMBLY 42" DECK - RED METALLIC (0650)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138B-0665

BRAKE ASSEMBLY 42" DECK - YARDMAN GREEN (0665)

$117.99

$

In Stock, only 1 left!

0

$117.99

$

In Stock, only 1 left!

0

4

White Outdoor 683-04264-0606

Deck Shell, 38"
(Superseded to 983-04264C-0606)

Note: (w/wheel brackets)

$465.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-04167

Deck Brake Assembly
(Superseded to 983-04167)

Variations

White Outdoor 683-04167-0637

Deck Brake Assembly 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

White Outdoor 683-04167-0665

Deck Brake Assembly 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0604A

Hex Scr 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3015

Hex Bolt 1/4-20 x 1.00

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0528

Hex Wash Tap Scr 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 783-04740

Deck Engagement Cable Bracket

Variations

White Outdoor 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

White Outdoor 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

16

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-04063

Hex Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 631-0216

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

19

White Outdoor 712-04065

Hex Flange Locknut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0641

Hex Nut M16-1.5 DIN 936

Note: If equipped

$6.49

$

In Stock, Qty 7

0

22

White Outdoor 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 19

0

23

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

26

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 732-04280B

Extension Spring .75 dia. x 6.37 Lg.

$8.49

$

In Stock, only 4 left!

0

28

White Outdoor 732-04287

Extension Spring .50 dia x 6.37

$15.99

$

In Stock, only 1 left!

0

29

White Outdoor 734-0973

Wheel Ass’y - Deck 5" x 1.38"

Note: If equipped

$12.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

Note: If equipped

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0225

L-Washer Internal

Note: If equipped

$4.49

$

In Stock, only 2 left!

0

33

White Outdoor 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 738-04166

Shoulder Spacer

$6.49

$

In Stock, Qty 8

0

36

White Outdoor 738-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16
(Superseded to 938-0373)

Note: If equipped

$9.49

$

In Stock, Qty 20+

0

37

White Outdoor 738-04146

Screw Plug M16 x 1.50

Note: If equipped

$9.49

$

Usually ships in 3-6 days

0

38

White Outdoor 738-04162A

Shoulder Spacer .8540 x .200
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

39

White Outdoor 742-0610A

3 in 1 Blade 19.38" Lg.
(Superseded to 942-0610A)

$26.99

$

In Stock, Qty 20+

0

40

White Outdoor 747-04322

Deck Rod, Front Adjustable

$35.99

$

In Stock, only 1 left!

0

41

White Outdoor 731-2363

Mulching Plug

Note: If equipped

$29.99

$

In Stock, only 4 left!

0

42

White Outdoor 747-04381

Brake Control Rod

$20.99

$

Usually ships in 3-6 days

0

43

White Outdoor 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

44

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

45

White Outdoor 754-04062

V-Belt
(Superseded to 954-04062)

$47.99

$

In Stock, Qty 13

0

46

White Outdoor 756-04129

Idler Poulie w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

Note: If equipped

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 783-04602A

Belt Cover 5.66 dia.

Variations

White Outdoor 783-04602A-0637

Belt Cover, 5.66 Dia Black - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04602A-0606

Belt Cover, 5.66 Dia Orange - MAJESTIC ORANGE (0606)

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04602A-0638

COVER-BELT:5.66 - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

50

White Outdoor 710-0599

Screw, 1/4-20 x .50

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 783-1297

38" Deck Skirt
(Superseded to 783-1297-0637)

Note: If equipped

Variations

White Outdoor 783-1297-0637

Skirt Extension, 38" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

$30.99

$

In Stock, only 3 left!

0
