V 76 GF (13AV76GF897) - Columbia 38" Lawn Tractor (2009) Seat & Fender Parts Diagram

38" Lawn Tractor

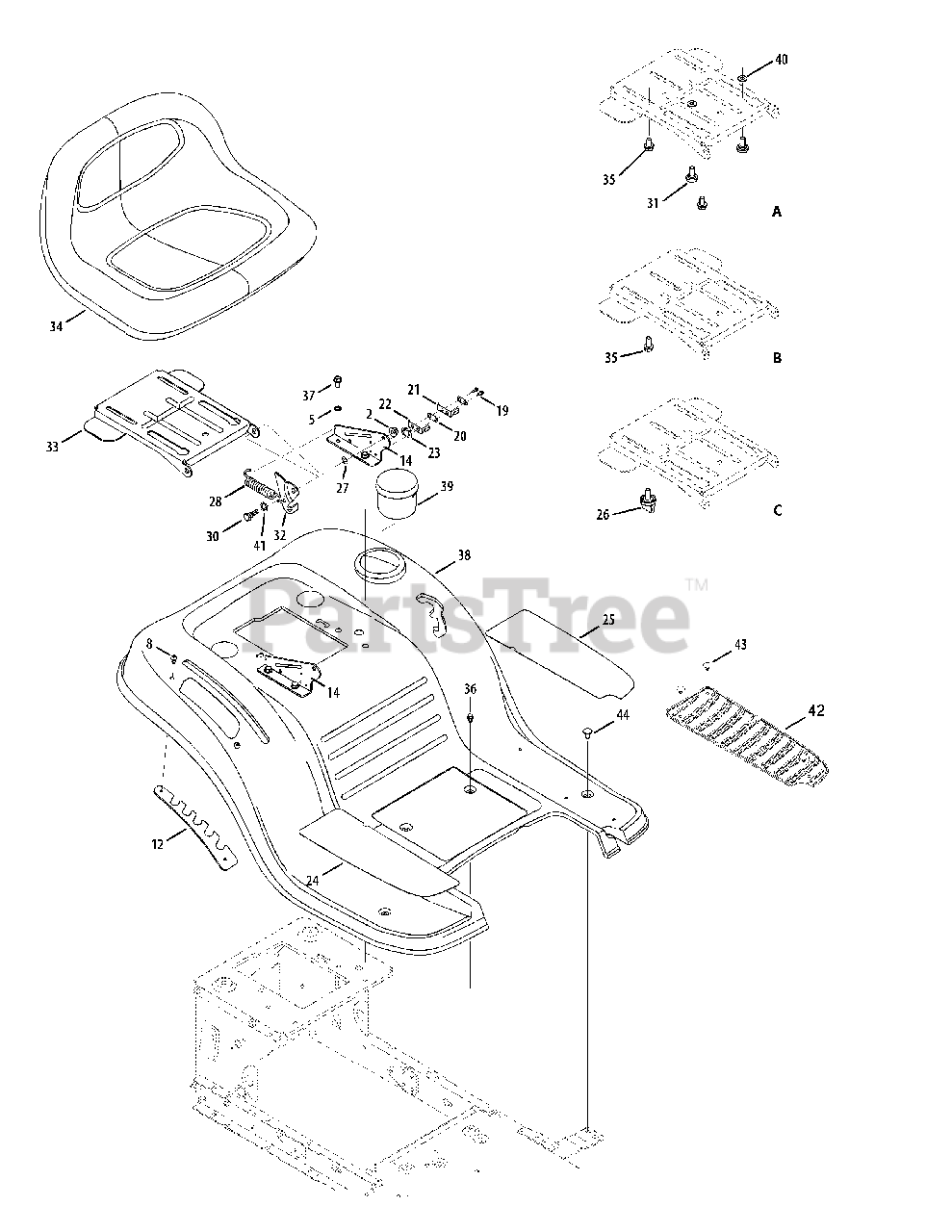

Seat & Fender Parts Diagram

  • Title
2

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-04483

Screw, 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-04843-0637

Lift Adjustment Bracket

$37.99

$

Usually ships in 3-6 days

0

14

White Outdoor 783-1489C-0637

Seat Mounting Bracket
(Superseded to 783-1489D-0637)

$23.99

$

In Stock, only 1 left!

0

19

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

21

White Outdoor 925-1303

Spring Switch

$6.49

$

In Stock, Qty 7

0

22

White Outdoor 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

23

White Outdoor 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

24

White Outdoor 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

White Outdoor 723-04026

Foot Pad, Abrasive, LH

$33.99

$

Usually ships in 3-6 days

0

$5.49

$

In Stock, Qty 20+

0

27

White Outdoor 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

28

White Outdoor 732-1184

Extension Spring .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

30

White Outdoor 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 738-04012A

Shoulder Screw .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

32

White Outdoor 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

33

White Outdoor 783-04081C-0637

Seat Pivot Bracket
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

34

White Outdoor 757-04099

Seat, Low Back
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

35

White Outdoor 710-04482

Screw 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 783-04587A-0606

Fender
(Superseded to 783-04587E-0606)

$421.99

$

Usually ships in 3-6 days

0

39

$15.99

$

In Stock, only 1 left!

0

40

White Outdoor 936-0300

Flat Washer .405 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

41

White Outdoor 936-0108

Flat Washer .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

42

$19.99

$

In Stock, only 3 left!

0

42

$18.99

$

In Stock, only 1 left!

0

43

$3.99

$

In Stock, Qty 13

0

44

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0
