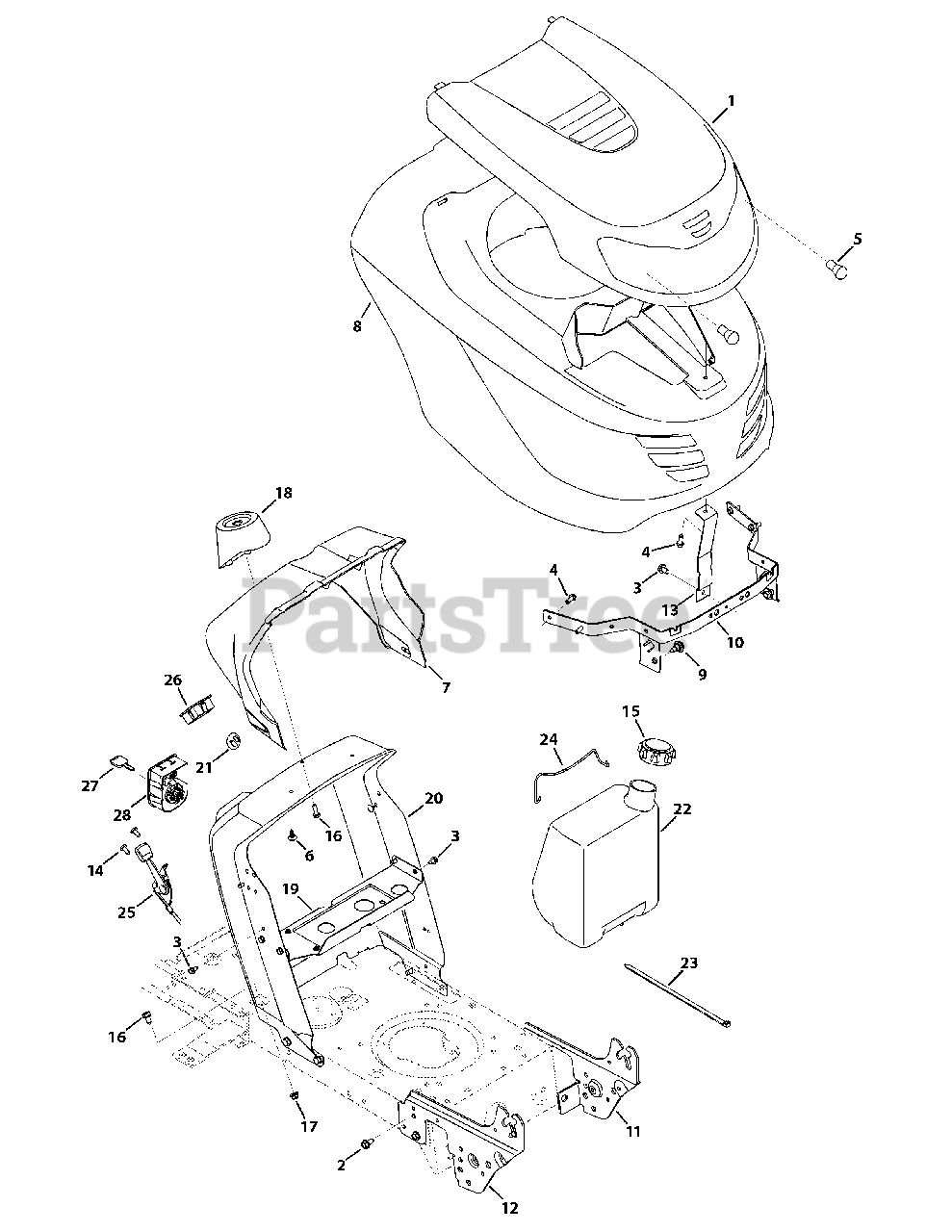

V 76 GF (13AV76GF897) - Columbia 38" Lawn Tractor (2009) Hood Style G Parts Diagram

38" Lawn Tractor

Hood Style G Parts Diagram

  • Title

1

White Outdoor 931-04308

Grille Style G

$104.99

$

Usually ships in 3-6 days

0

1

White Outdoor 931-06564

Lens Style G

Note: Not shown

$44.99

$

Usually ships in 3-6 days

0

1

White Outdoor 777X43285

Reflective Label

Note: Not shown

$

$

Not available

2

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

5

White Outdoor 925-0963

Miniature Lamp 12V Socket Type

$7.49

$

In Stock, only 1 left!

0

6

White Outdoor 726-3046

Rachet Clip

$3.99

$

In Stock, Qty 16

0

7

White Outdoor 931-06470

Dash Collar
(Superseded to 931-06470A)

$43.99

$

Usually ships in 3-6 days

0

8

White Outdoor 931-06537

Hood Style G

$154.99

$

Usually ships in 3-6 days

0

9

White Outdoor 738-04091A

Shoulder Screw 5/16-18, .43 x .29

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 783-04606C-0637

Pivot Hood Bracket

$48.99

$

In Stock, only 1 left!

0

11

White Outdoor 783-05327B-0637

LH Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

12

White Outdoor 783-05328A-0637

RH Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

White Outdoor 783-06117-0637

Hood Support Bracket

$

$

Not available

14

White Outdoor 710-04483

Hex Wash Hd Scr. 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 751-0603A

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

17

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

18

White Outdoor 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

19

White Outdoor 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

20

White Outdoor 983-04889A-0637

Dash Assembly
(Superseded to 983-04889C-0637)

$103.99

$

Usually ships in 3-6 days

0

21

White Outdoor 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

22

White Outdoor 751-0555B

Fuel Tank 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

23

White Outdoor 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

24

White Outdoor 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 14

0

25

White Outdoor 746-04364

Choke/Throttle Cable

$48.99

$

In Stock, only 3 left!

0

26

White Outdoor 925-04156

Indicator Monitor

$29.99

$

In Stock, only 1 left!

0

27

White Outdoor 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

28

White Outdoor 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

29

White Outdoor 683-04219B-0637

Bumper Ass'y

$60.99

$

In Stock, only 2 left!

0

30

White Outdoor 738-0143

Shoulder Scr. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 912-3000

Hex L-Nut 3/8-16 Gr. B
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

32

White Outdoor 731-05674

Cap

$5.49

$

In Stock, Qty 20+

0
