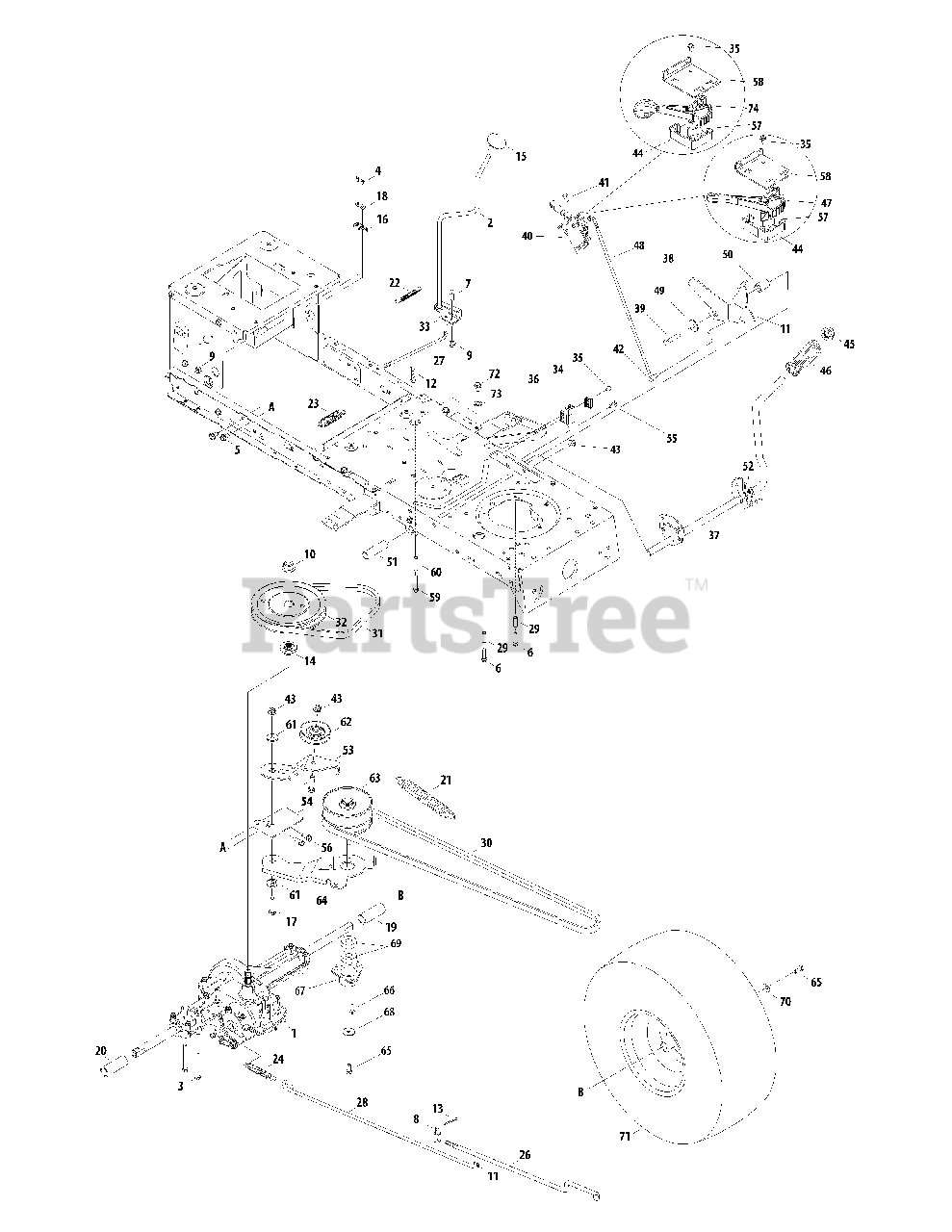

V 76 GF (13AV76GF897) - Columbia 38" Lawn Tractor (2009) Drive Assembly Parts Diagram

38" Lawn Tractor

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 918-04566

Transmission Ass’y
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

White Outdoor 647-04035

Shift Lever Ass’y

$37.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0176

Hex Scr 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

7

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 911-04075A

Ferrule

$11.99

$

In Stock, only 3 left!

0

9

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0700

Flange Nut

$10.99

$

In Stock, only 1 left!

0

11

White Outdoor 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

12

White Outdoor 914-0209

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

13

White Outdoor 714-04040

Bow Tie Cot ter Pin

$1.49

$

In Stock, Qty 20+

0

14

White Outdoor 718-04407

Pulley Hub 5/8" Spline

$12.99

$

In Stock, Qty 20+

0

15

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

16

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

17

White Outdoor 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

19

White Outdoor 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

20

White Outdoor 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

21

White Outdoor 732-04076A

Spring, Exten sion, 1.15 OD x 7.90

$13.99

$

In Stock, only 1 left!

0

22

White Outdoor 732-04488

Spring, Exten sion

$6.49

$

In Stock, Qty 20+

0

23

White Outdoor 732-04306

Spring, Exten sion, .80 OD x 3.28

$10.99

$

In Stock, only 1 left!

0

24

White Outdoor 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 1 left!

0

25

White Outdoor 736-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 1 left!

0

26

White Outdoor 747-04265

Control Rod, Variable Speed

$

$

Not available

27

White Outdoor 747-04277

Shift Rod

$

$

Not available

28

White Outdoor 747-04733A

Brake Rod

$21.99

$

Usually ships in 3-6 days

0

29

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

30

White Outdoor 954-04001A

Belt

$28.99

$

In Stock, Qty 20+

0

31

White Outdoor 954-0241A

Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 6

0

32

White Outdoor 956-04002

Pulley, V-Type, 7.25 dia.

$27.99

$

In Stock, Qty 19

0

33

White Outdoor 783-04595A

Shift Bracket, Adjustable

$10.99

$

In Stock, only 4 left!

0

34

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

35

White Outdoor 910-0224

Hex AB-Tap Scr #10 X .50" Lg.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

37

White Outdoor 647-04034C-0637

Drive Pedal Assembly
(Superseded to 647-04034E-0637)

$86.99

$

In Stock, only 1 left!

0

38

White Outdoor 783-04862

Latch Ass’y, Engage ment (RMC)
(Superseded to 783-04862B)

$

$

Not available

38

White Outdoor 783-04903

Latch Ass’y, Engage ment (w/o RMC)

Variations

White Outdoor 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

39

710-3114

Hex Screw 3/8-16 x 1.875 Gr. 5

$

$

Not available

40

White Outdoor 983-04225

6 Speed Shift Control Ass'y

$

$

Not available

40

White Outdoor 983-04216

7 Speed Shift Control Ass'y

$21.99

$

In Stock, only 2 left!

0

40

White Outdoor 983-04274

7 Speed Shift Control Ass'y (Troy Bilt)

$

$

Not available

41

White Outdoor 710-04483

Screw, 1/4-20 x .5

$6.99

$

Usually ships in 3-6 days

0

42

White Outdoor 711-0736

Adjustment ferrule

$13.99

$

In Stock, only 2 left!

0

43

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 731-05361

Control Cover

$9.49

$

Usually ships in 3-6 days

0

45

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, only 4 left!

0

46

White Outdoor 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

47

White Outdoor 983-04225

Shift Lever - 6 Speed

$

$

Not available

47

White Outdoor 983-04216

Shift Lever - 7 Speed

$21.99

$

In Stock, only 2 left!

0

48

White Outdoor 747-04430

Speed Selecter Control Rod

$21.99

$

Usually ships in 3-6 days

0

49

White Outdoor 938-0102

Flat Washer .411 ID x 1.25 OD x .10
(Superseded to 738-0102)

$

$

Not available

50

White Outdoor 750-04465

Flange Spacer .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 750-0802

Spacer .630 ID

$6.99

$

Usually ships in 3-6 days

0

52

White Outdoor 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

53

White Outdoor 753-05147

Idler Bracket

$32.99

$

In Stock, only 2 left!

0

54

White Outdoor 683-04176A

Transmission Torque Bracket
(Superseded to 783-04567B)

Note: Mounts in top holes on 38/42" deck units.

$8.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-0604A

Self-tap ping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 732-0627A

Shift Lever Spring

$9.49

$

In Stock, only 4 left!

0

58

783-04830-0637

Control Bracket

$

$

Not available

59

White Outdoor 710-1325

Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

61

White Outdoor 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

62

White Outdoor 756-04325

Flat Idler

$24.99

$

In Stock, Qty 20+

0

63

White Outdoor 956-04015

Variable Speed Pulley Ass’y 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

64

White Outdoor 753-05147

Variable Speed Bracket Ass’y

$32.99

$

In Stock, only 2 left!

0

65

White Outdoor 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 710-0778

Hex Scrw 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 718-04261

Bearing Cup

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 7

0

69

White Outdoor 941-0124

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

70

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 634-0104-0911

Wheel Assembly Complete, 20 x 8 x 8

$144.99

$

In Stock, only 1 left!

0

71

White Outdoor 734-1730-0901

Tire Only, 20 x 8 x 8, Square Shoul der

$99.99

$

In Stock, only 1 left!

0

71

White Outdoor 634-04369-0662

Rim Only

$165.99

$

Usually ships in 3-6 days

0

72

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 936-0222

Lockwasher 1/4"
(Superseded to 736-0222)

$

$

Not available

74

N/A

Shift Lever (spoon style) - 7 Speed

$

$

Not available
