V 61 GG (13AV61GG897) - Columbia 42" Lawn Tractor (2009) Engine Accessories Single Parts Diagram

42" Lawn Tractor

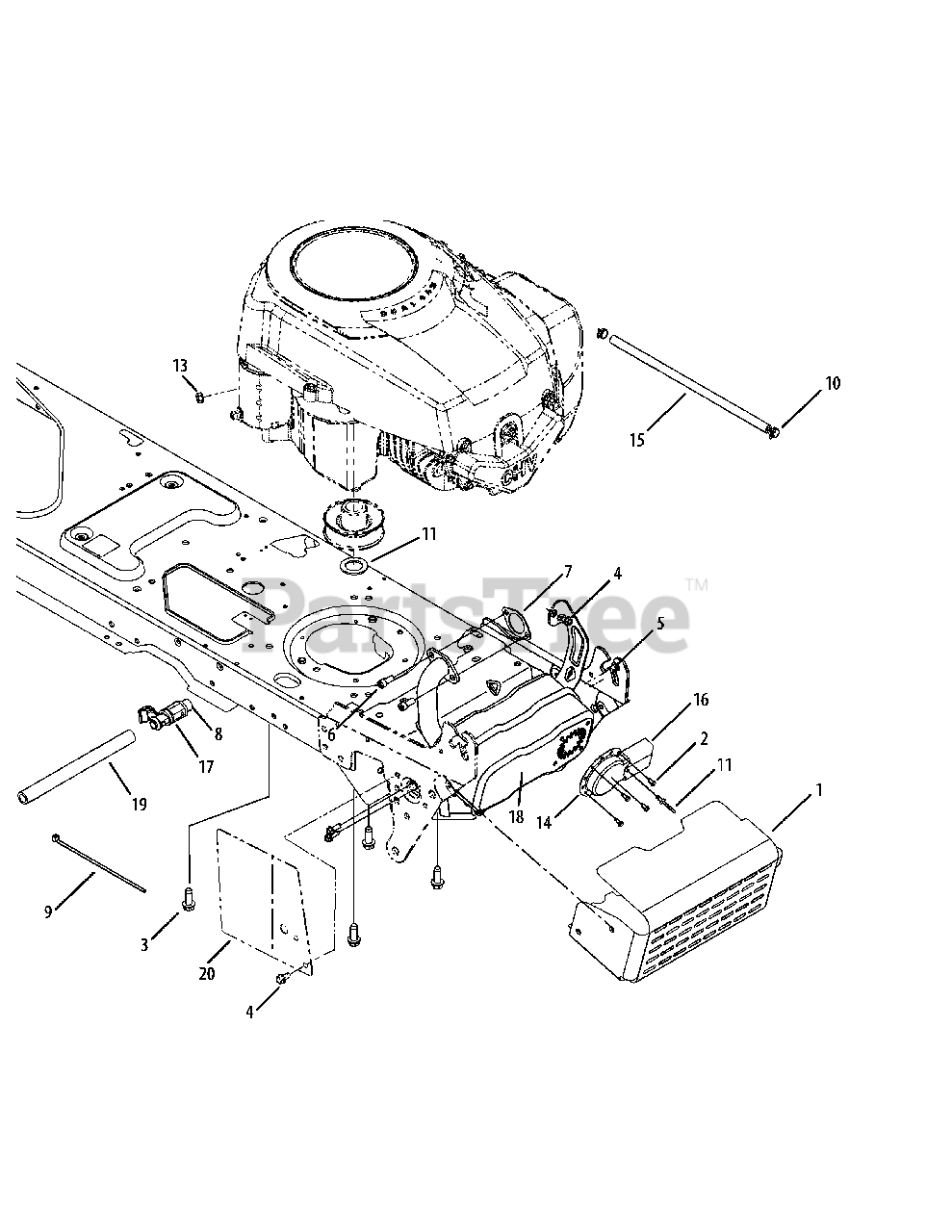

Engine Accessories Single Parts Diagram

  • Title

1

White Outdoor 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0227

Hex AB Scr #8-18 x .50

$4.49

$

In Stock, Qty 15

0

3

White Outdoor 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1314A

Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

8

N/A

Pipe Seal ant Locktite 567

Note: Purchased locally

$

$

Not available

9

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

11

White Outdoor 728-04000

Pop Rivet

$6.99

$

In Stock, Qty 7

0

13

White Outdoor 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

14

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

15

White Outdoor 751-10349-28

Fuel Line

$41.99

$

In Stock, only 1 left!

0

16

White Outdoor 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

17

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

18

White Outdoor 751-11022

Muffler
(Superseded to 951-11022A)

$152.99

$

Usually ships in 3-6 days

0

19

White Outdoor 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

20

White Outdoor 783-05106-0637

Heat Shield

$

$

Not available
