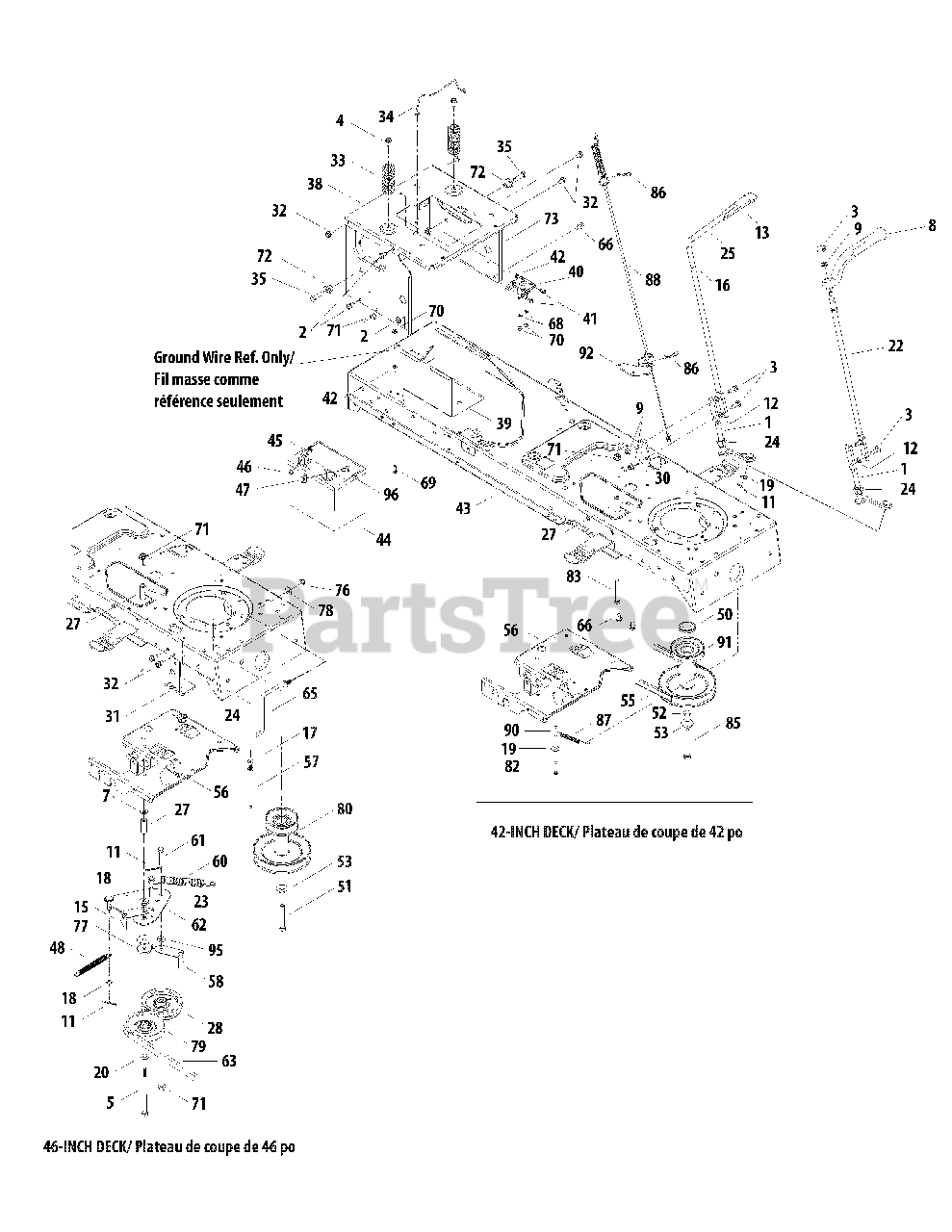

V 61 6G (13AV616G597) - Columbia 42" Lawn Tractor (2008) PTO & Battery Manual Parts Diagram

42" Lawn Tractor

PTO & Battery Manual Parts Diagram

  • Title

1

White Outdoor 647-04036A

PTO Engage lever Assembly
(Superseded to 947-04036A)

$43.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0604A

Hex Hd. TT Scr. 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 14

0

4

White Outdoor 710-1260A

Hex Wash HD AB Tap Scr 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0831

Hex Cap Screw, 3/8-16 x 1.5

$

$

Not available

7

White Outdoor 712-0229

Push Nut Bolt Retainer

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 647-04147

PTO Knob

$

$

Not available

9

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 714-0115

Cotter Pin 1/8" Dia x 1.00

$3.99

$

Usually ships in 3-6 days

0

12

White Outdoor 726-0201

Push Speed Nut

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 731-2111B

PTO Knob

$

$

Not available

15

White Outdoor 732-04245A

Belt Guard

$

$

Not available

16

White Outdoor 736-0108

Flat Washer .510 ID x .75 OD x .033

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0140

Flat Washer .385 ID x .62 OD x .06

$7.49

$

In Stock, Qty 7

0

19

White Outdoor 736-0173

Flat Washer .28 ID x .74 OD x .063

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 720-0425

Cap Plug .812 dia.

$

$

Not available

22

White Outdoor 747-04855

Deck Engagement Handle

$

$

Not available

23

White Outdoor 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

24

White Outdoor 741-0708

Hex Slpit Flange Bearing .50 ID

$4.49

$

In Stock, only 1 left!

0

25

White Outdoor 747-04855

Deck Engagement Handle

$

$

Not available

27

White Outdoor 748-0415B

Spacer .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

28

White Outdoor 756-0627D

Flat Idler Pulley 3.5 OD

$30.99

$

In Stock, Qty 20+

0

30

White Outdoor 783-0744A

Engagement Stop Bracket

Variations

White Outdoor 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-04467

Deck Stop

Variations

White Outdoor 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0726

Hex Wash HD AB Tap Scr 5/16 x .75

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

34

White Outdoor 747-04121A

Battery Retainer Rod

$6.49

$

In Stock, Qty 20+

0

35

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

38

White Outdoor 783-04329A

Frame Seat Bracket

Variations

White Outdoor 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04329A-4008

BRACKET-FRAME SEAT - WINE RED (4008)

$

$

Not available

$

$

39

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0222

Ext. L-Washer 1/4 ID

$5.99

$

In Stock, only 3 left!

0

43

White Outdoor 683-04173B

Lower Frame Assembly

Variations

White Outdoor 683-04173B-0606

FRAME ASSY-LOWER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-04173B-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04173B-0650

FRAME ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04173B-0665

FRAME ASSY-LOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04173B-0691

FRAME ASSY-LOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-04173B-0709

FRAME ASSY-LOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

44

White Outdoor 725-1707D

Battery 245 CCA (Dry)
(Superseded to 925-1707D)

$

$

Not available

45

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 15

0

46

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

47

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 732-1165

Extension Spring .50 x 5.0
(Superseded to 732-04197)

$6.99

$

In Stock, Qty 12

0

50

White Outdoor 750-0956

Spacer 1.010 x 1.4 x .825

$19.99

$

In Stock, only 2 left!

0

51

White Outdoor 710-04377

Hex Bolt 7/16-20 x 2.75 Gr. 5

$11.99

$

In Stock, only 1 left!

0

52

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

53

White Outdoor 736-0171

Lockwasher 7/16 ID

$4.49

$

In Stock, Qty 5

0

55

White Outdoor 754-0497

PTO Belt (w/42" deck)
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 19

0

56

White Outdoor 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

57

White Outdoor 711-1044A

Keeper Pin 5/16 x 4.75

$8.99

$

In Stock, Qty 10

0

58

White Outdoor 732-1013

Belt Guard
(Superseded to 732-1013A)

$10.99

$

In Stock, only 1 left!

0

60

White Outdoor 732-0944

Extension Spring .75 x 6.75

$10.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-1007

Hex TT Sems Scr. 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 683-0302

PTO Engagement Plate

Variations

White Outdoor 683-0302-0637

ENGAGEMENT PLATE ASSEMBLY - POWDER BLACK (0637)

$37.99

$

In Stock, only 1 left!

0

$37.99

$

In Stock, only 1 left!

0

63

White Outdoor 754-04064

PTO Belt (w/46" Deck)

$79.99

$

In Stock, only 1 left!

0

65

White Outdoor 747-04355

Belt Keeper Rod

$22.99

$

Usually ships in 3-6 days

0

66

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.99

$

In Stock, Qty 12

0

68

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

69

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

71

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

In Stock, only 2 left!

0

73

White Outdoor 783-04809

Upper Frame
(Superseded to 783-04809C-0637)

Variations

White Outdoor 783-04809-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04809-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04809-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04809-0665

FRAME UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04809-0716

FRAME-UPPER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

77

White Outdoor 736-0227

Flat Washer .39 ID x 1.5 OD x .135

$6.49

$

In Stock, Qty 13

0

78

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 756-0487

4" Dia. V-Idler

$48.99

$

In Stock, only 1 left!

0

80

White Outdoor 756-04207

Engine Pulley 3.39 x 6.12 Dia 46"
(Superseded to 756-04207A)

$

$

Not available

80

White Outdoor 756-04208A

Engine Pulley 3.56 x 6.12 Dia 46"

Note: (hydrostatic models)

$71.99

$

Usually ships in 3-6 days

0

82

White Outdoor 710-0778

Hex Bolt 1/4-20 x 1.5

$4.49

$

In Stock, only 3 left!

0

83

White Outdoor 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

85

White Outdoor 710-04608

Hex Bolt 7/16-20 x 3.25 Gr. 5

$6.99

$

In Stock, Qty 7

0

86

White Outdoor 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

87

White Outdoor 732-04248

Extension Spring .38 OD x 3.9 Lg.

$10.99

$

In Stock, only 2 left!

0

88

White Outdoor 746-04353A

Deck Engage Cable
(Superseded to 946-04353A)

$51.99

$

In Stock, Qty 7

0

90

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

91

White Outdoor 756-04196

Engine Pulley 3.39 x 6.12 dia 42" Trans
(Superseded to 756-04196A)

$90.99

$

In Stock, only 1 left!

0

91

White Outdoor 756-04195

Engine Pulley 3.56 x 6.12 Dia 42" Hydro
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

92

White Outdoor 783-05358

Cable Bracket

Variations

White Outdoor 783-05358-0637

Cable Bracket - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 783-05358-4008

BRACKET-CABLE - WINE RED (4008)

$

$

Not available

$

$

95

White Outdoor 736-3010

Flat Washer .406 ID x .812 OD x .134

$4.99

$

In Stock, only 2 left!

0

96

White Outdoor 738-1132

Shoulder Screw, 1/4-20

$5.49

$

In Stock, only 2 left!

0
