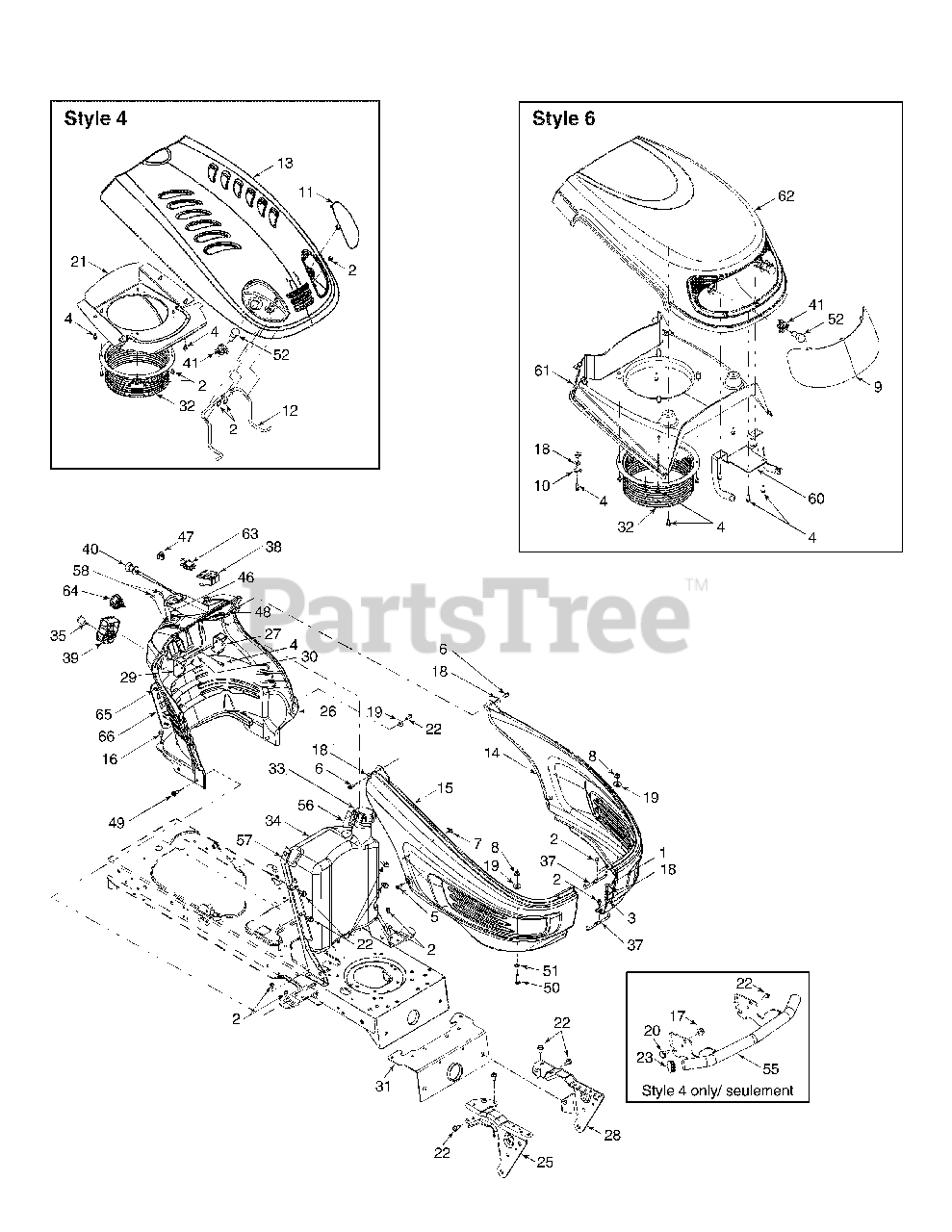

V 61 6G (13AV616G597) - Columbia 42" Lawn Tractor (2008) Hood & Grille Parts Diagram

42" Lawn Tractor

Hood & Grille Parts Diagram

  • Title

1

White Outdoor 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Hex Wash S-Tapp Scr. 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 10

0

5

White Outdoor 710-0924

Truss Mach Scr 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0292

Speed Nut

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 731-2286A

Head Light Lens Style 6
(Superseded to 931-2286A)

$55.99

$

Usually ships in 3-6 days

0

10

White Outdoor 747-2127

Hood Latch Rod

$12.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-1979

LH Head Light Lens Style 4
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-1978

RH Head Light Lens Style 4
(Superseded to 931-1978)

$17.99

$

Usually ships in 3-6 days

0

12

White Outdoor 747-1132A

Hood Support Rod

$

$

Not available

13

White Outdoor 731-1980B

Hood, Style 4 (Yellow)
(Superseded to 931-1980B)

$

$

Not available

14

White Outdoor 731-04958

LH Side Panel, Style 4, Yellow
(Superseded to 931-04958)

$

$

Not available

14

731-5473

LH Side Panel, Style 6

$

$

Not available

15

White Outdoor 731-1982C

RH Side Panel, Style 4, Yellow
(Superseded to 931-1982C)

$

$

Not available

15

White Outdoor 731-2308B

RH Side Panel, Style 6
(Superseded to 931-2308B)

$135.99

$

In Stock, only 1 left!

0

16

White Outdoor 710-0607

Hex Wash HD AB Tap Scr 5/16-18 x .5

$6.99

$

In Stock, Qty 9

0

17

White Outdoor 712-04065

Flange Locknut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0173

Flat Washer .28 ID x .74 DE x .063

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-3078

Flat Washer .344 ID x 1.0

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 738-0143

Shoulder Scr. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 783-0808A

Heat Shield, 4-style
(Superseded to 783-0808A-0637)

Variations

White Outdoor 783-0808A-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

25

White Outdoor 783-0726E

RH Dash Support Plate

Variations

White Outdoor 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726E-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726E-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726E-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726E-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0726E-4008

BRACKET:PIVOT SUPPORT RH - WINE RED (4008)

$

$

Not available

$

$

26

White Outdoor 731-05002

Dash Panel,

Note: (w/Manual PTO)

$

$

Not available

26

White Outdoor 731-05037

Dash Panel,

Note: (w/Electric PTO)

$

$

Not available

27

White Outdoor 731-04213

Parking Brake Button

$12.99

$

Usually ships in 3-6 days

0

28

White Outdoor 783-0727D

LH Dash Support Plate

Variations

White Outdoor 783-0727D-0606

BRACKET:PIVOT:SUPPORT LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0727D-0637

BRACKET:PIVOT:SUPPORT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727D-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727D-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0727D-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0727D-4008

BRACKET:PIVOT:SUPPORT LH - WINE RED (4008)

$

$

Not available

$

$

29

White Outdoor 731-04214

Cruise Control Button

$

$

Not available

30

White Outdoor 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-0728B

Pivot Bar Brkt.

Variations

White Outdoor 783-0728B-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0728B-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0728B-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0728B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0728B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0728B-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0728B-4008

BRACKET-PIVOT BAR - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

32

White Outdoor 731-2232A

Intake Bellow

Note: (Kohler and Intek Single)

$

$

Not available

32

White Outdoor 731-2234A

Intake Bellow

Note: (Intek Twin Engine)

$29.99

$

Usually ships in 3-6 days

0

33

White Outdoor 751-0603

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

34

White Outdoor 751-0818D

Fuel Tank 2 Gal.
(Superseded to 951-0818D)

Note: (w/Electric PTO)

$97.99

$

Usually ships in 3-6 days

0

34

White Outdoor 751-0659D

Fuel Tank 2 Gal.

Note: (w/Manual PTO)

$84.99

$

In Stock, Qty 5

0

34

White Outdoor 751-0658E

Fuel Tank 3 Gal.

$115.99

$

In Stock, only 3 left!

0

35

White Outdoor 725-1745

Ignition Key w/Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

35

White Outdoor 725-1744

Ignition Key w/o Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

White Outdoor 747-04301

Side Panel Support

$

$

Not available

38

White Outdoor 725-04036A

Systems Indicator Monitor w/Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

38

White Outdoor 725-04036

Sys. Ind. Mon. w/Hr. Mtr., Curved Face
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

39

White Outdoor 725-04230B

Ignition Switch-Export Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

40

White Outdoor 746-1085A

Choke Cable 39" Lg.
(Superseded to 946-1085A)

Note: (Twin (optional))

$30.99

$

In Stock, only 1 left!

0

40

White Outdoor 746-1088

Choke Cable 23" Lg.
(Superseded to 946-1088)

Note: (Single) (optional)

$29.99

$

In Stock, only 1 left!

0

41

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

46

White Outdoor 746-04365

Throttle/Choke Cable
(Superseded to 746P04365)

Note: (Twin 20 HP)

$42.99

$

Usually ships in 3-6 days

0

46

White Outdoor 746-04417

Throttle/Choke Cable
(Superseded to 946-04417)

Note: (Twin 25 HP)

$54.99

$

Usually ships in 3-6 days

0

46

White Outdoor 746-04364

Throttle/Choke Cable

Note: (Single)

$48.99

$

In Stock, only 3 left!

0

47

White Outdoor 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

48

White Outdoor 783-0462

Bracket - PTO Switch

$

$

Not available

49

White Outdoor 710-1611B

Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

50

White Outdoor 710-0376

Hex Scr 5/16 x 1,00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

52

White Outdoor 725-0963

Miniature Lamp 12V Socket Type
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

53

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

54

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 683-04219A

Bumper Assembly
(Superseded to 683-04219B-0637)

Variations

White Outdoor 683-04219A-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

56

White Outdoor 783-04323F

L.H. Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

57

White Outdoor 783-04285F

R.H. Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

58

White Outdoor 710-1017

Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg

$8.49

$

In Stock, Qty 9

0

60

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 731-2284

Hood Plenum

$63.99

$

Usually ships in 3-6 days

0

61

White Outdoor 731-2358

Hood Plenum-Black

$

$

Not available

62

White Outdoor 731-2283A

Hood, Style 6
(Superseded to 931-2283A)

$

$

Not available

62

White Outdoor 731-05160

Hood, Style 6, Beige
(Superseded to 931-05160)

$

$

Not available

63

White Outdoor 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: (if equipped)

$70.99

$

In Stock, only 2 left!

0

64

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

65

White Outdoor 726-04029

Ratchet Clip .30 Dia.

$3.99

$

Usually ships in 3-6 days

0

66

White Outdoor 735-04023

Accessory Net

$

$

Not available

67

White Outdoor 725-04404A

Headlight Harness
(Superseded to 925-04404A)

Note: (Elect. PTO w/hr. meter)

$240.99

$

Usually ships in 3-6 days

0

67

White Outdoor 725-04403A

Headlight Harness
(Superseded to 925-04403)

Note: (Manual PTO w/hr. meter)

$

$

Not available

White Outdoor 629-04083B

Wire Harness
(Superseded to 929-04083B)

Note: (not shown)

$39.99

$

Usually ships in 3-6 days

0
