V 606 G (13AV606G597) - Columbia 42" Lawn Tractor (2008) Seat & Fender Parts Diagram

42" Lawn Tractor

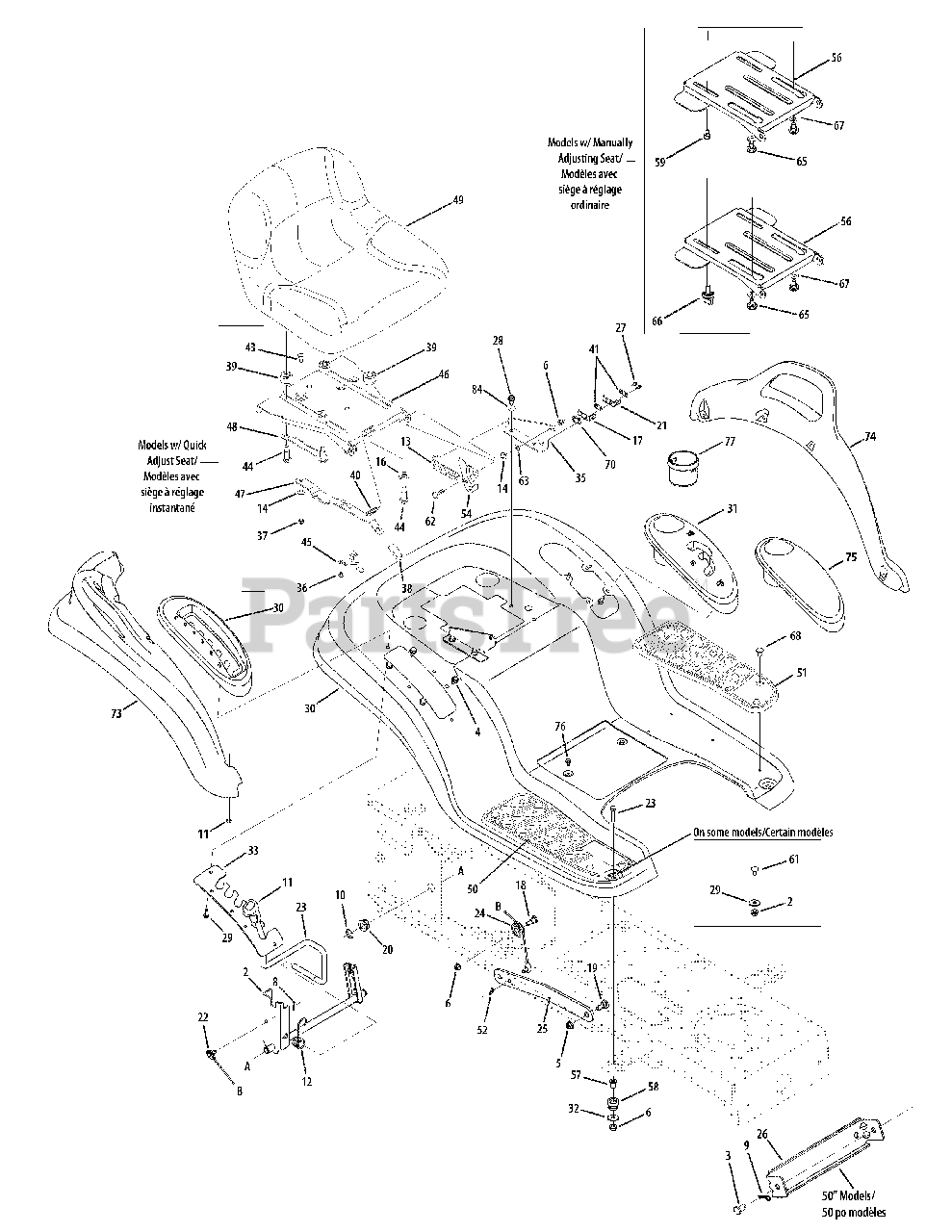

Seat & Fender Parts Diagram

  • Title

1

White Outdoor 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

White Outdoor 683-04223

Lift Shaft Assembly
(Superseded to 683-04223-0637)

Note: (42" and 46" Deck)

Variations

White Outdoor 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

4

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-04065

Hex Flange Locknut 3/8-16 Gr. F,Nylon

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04063

Hex Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 714-04023

Internal Cotter Pin .080 x 1.5625

$4.49

$

In Stock, only 4 left!

0

10

White Outdoor 716-0106A

E-ring

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

White Outdoor 732-1184

Extension Spring .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0242

Cupped Wash. .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-3019

Flat Washer .531 ID x 1.062 OD x .134

$5.99

$

In Stock, Qty 11

0

17

White Outdoor 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 8

0

18

White Outdoor 738-0138A

Shoulder Scr. .437 Dia x .47

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 738-0380

Shoulder Screw .500 x .25

Note: (46"/50")

$7.99

$

In Stock, only 1 left!

0

20

White Outdoor 741-0225

Hex Flange Bearing .630 ID
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

White Outdoor 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

22

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

24

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

White Outdoor 783-05546

Arm Lift
(Superseded to 783-05546A-0637)

Variations

White Outdoor 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

26

White Outdoor 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

White Outdoor 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

28

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

Note: (w/783-0677B)

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-1611B

Screw 5/16-18 x .75 (601)

$6.99

$

In Stock, only 2 left!

0

29

White Outdoor 710-0895

Hex Scr. 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

30

White Outdoor 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-2104C

Shift Lever Cover w/Cup Holder
(Superseded to 931-2104C)

$35.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3078

Flat Washer .344 ID x 1.0

$4.49

$

In Stock, only 4 left!

0

33

White Outdoor 783-0677B

Lift Adjustment Bracket

Variations

White Outdoor 783-0677B-0637

BRACKET:LIFT:ADJ - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

White Outdoor 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

34

White Outdoor 783-04331A

Fender (801)

Variations

White Outdoor 783-04331A-0638

FENDER STYLE 4-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04331A-0665

FENDER-4 STY,2 STY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04331A-4008

FENDER-4 STY,2 STY - WINE RED (4008)

$

$

Not available

$

$

34

White Outdoor 783-04333A

Fender

Variations

White Outdoor 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04333A-4008

No Longer Available - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

35

White Outdoor 783-1489C

Seal Mounting Bracket

Variations

White Outdoor 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1268

Hex B-Tapp Wash Scr #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

37

White Outdoor 712-04064

Hex Flange Locknut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

White Outdoor 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

40

White Outdoor 732-0499

Compression Spring 1.5" Lg

$9.49

$

In Stock, only 1 left!

0

41

White Outdoor 736-0242

Cupped Washer .340 ID x .872 OD x .060

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 738-0137A

Shoulder Screw .340 x .285: 1/4-20

$10.99

$

In Stock, Qty 10

0

44

White Outdoor 738-0966A

Shoulder Screw, .50 x .925, 3/8-16

$4.99

$

In Stock, Qty 19

0

45

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

White Outdoor 783-0738D

Seat Pivot Bracket

Variations

White Outdoor 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

White Outdoor 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

47

White Outdoor 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

White Outdoor 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

48

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

White Outdoor 757-04003A

Seat 15.279" High, High Back-Blk

$

$

Not available

49

White Outdoor 757-04012D

High Back Seat YM Yellow

$

$

Not available

50

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

52

White Outdoor 714-0111

Cotter Pin 3/32 dia. x 1.00 Lg.

$4.99

$

In Stock, Qty 13

0

53

White Outdoor 783-04963A

Deck Lift Link

Note: (46" Man PTO/50")

Variations

White Outdoor 783-04963A-0637

LINK-LIFT - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04963A-4008

LINK-LIFT - WINE RED (4008)

$26.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

54

White Outdoor 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

56

White Outdoor 783-04081B

Seat Pivot Bracket, Manually Adjusted

Variations

White Outdoor 783-04081B-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081B-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

57

735-0190

Grommet

$

$

Not available

58

White Outdoor 750-3310

Flg. Spacer .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

59

White Outdoor 710-0870

Hex Wash Hd Scr. 3/8-16 x .625 Gr. 5

$6.49

$

In Stock, only 1 left!

0

61

White Outdoor 726-3046

Ratchet Clip .25 Dia.

$3.99

$

In Stock, Qty 16

0

62

White Outdoor 738-0296

Shoulder Bolt .437 Dia. x .268

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 726-0201

Push Speed Nut

Note: (Quick Adjustment Only)

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 738-04012A

Shoulder Spacer .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

66

White Outdoor 720-04061

Knob, 3/8-16 x .625

$5.49

$

In Stock, Qty 20+

0

67

White Outdoor 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 710-0451

Carriage Bolt 5/16 x 18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 710-0604A

Hex TT Scr. 5/16-18 x .875

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

71

White Outdoor 710-0932

Carriage Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

72

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

73

White Outdoor 731-2618

RH Fender Flare

$

$

Not available

74

White Outdoor 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

75

White Outdoor 731-1993A

Cover w/Cup Holder

$25.99

$

Usually ships in 3-6 days

0

76

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 731-04591

Cup Holder, Style 7
(Superseded to 731-04591A)

$15.99

$

In Stock, only 1 left!

0

78

White Outdoor 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 736-3084

Flat Washer .510 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

80

White Outdoor 738-1011A

Shoulder Screw .50 x 2.230:3/8-16

$8.49

$

In Stock, Qty 11

0

81

White Outdoor 738-04130

Shoulder Screw .625 x .175: 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

82

White Outdoor 783-04494B

Deck Lift Arm RH (42" Deck)
(Superseded to 783-04494C)

Variations

White Outdoor 783-04494B-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-04494B-4008

ARM-DECK LIFT RH - WINE RED (4008)

$21.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

82

White Outdoor 783-04711B

Deck Lift Arm LH
(Superseded to 783-04711C)

Note: (Not Shown)

Variations

White Outdoor 783-04711B-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04711B-4008

ARM-DECK LIFT LH - WINE RED (4008)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

84

White Outdoor 736-0607

Ext. Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

88

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0
