V 60 GG (13AV60GG897) - Columbia 42" Lawn Tractor (2009) Hood & Grille Assembly Parts Diagram

42" Lawn Tractor

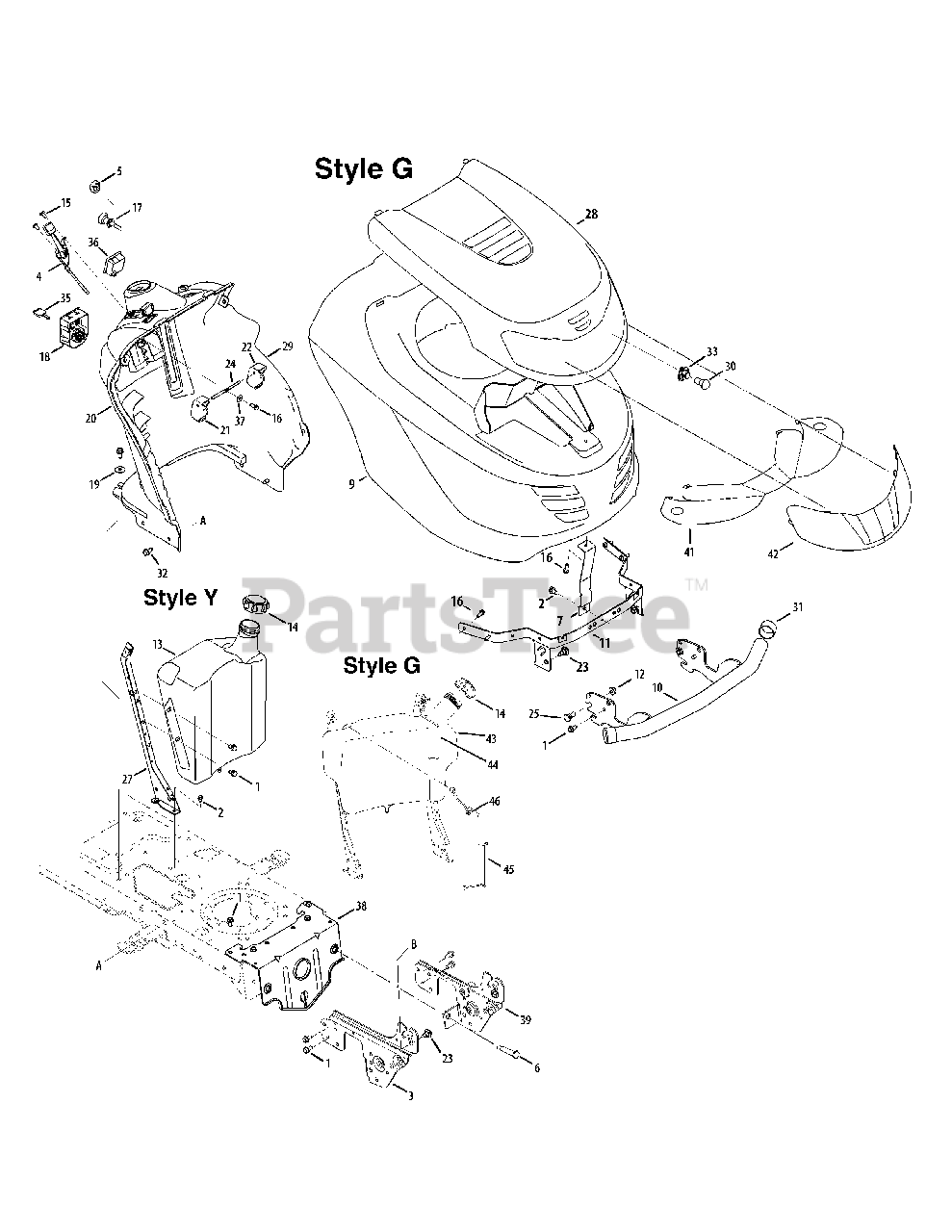

Hood & Grille Assembly Parts Diagram

  • Title

1

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 783-05328A-0637

RH Pivot Support Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

4

White Outdoor 746-04364

Throttle/Choke Cont. Cable 25" Lg. (Single)

$48.99

$

In Stock, only 3 left!

0

5

White Outdoor 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

6

White Outdoor 738-04128

Shoulder Bolt .5 x 2.38, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

7

White Outdoor 783-06117-0637

Hood Support Bracket

$

$

Not available

9

White Outdoor 931-06538

Grill Style "G" (w/side fill)

$202.99

$

Usually ships in 3-6 days

0

10

White Outdoor 683-04219B-0637

Bumper Assembly

$60.99

$

In Stock, only 2 left!

0

11

White Outdoor 783-04606C-0637

Hood Pivot Bracket

$48.99

$

In Stock, only 1 left!

0

12

White Outdoor 912-3000

Hex Lock-Nut 3/8-16 Gr.B
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

13

N/A

Fuel Tank

Note: Not used in this application

$

$

Not available

14

White Outdoor 751-0603A

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-1017

Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg

$8.49

$

In Stock, Qty 9

0

16

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, only 4 left!

0

17

White Outdoor 746-1085A

Choke Cable 37.5" Lg.
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

18

White Outdoor 925-04230B

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0701

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

20

White Outdoor 931-06495

Dash Panel (w/fuel level window)
(Superseded to 931-06495A)

$

$

Not available

21

White Outdoor 731-04214

Cruise Control Button

$

$

Not available

22

White Outdoor 731-04213

Park ing Brake Button

$12.99

$

Usually ships in 3-6 days

0

23

White Outdoor 738-04091A

Shoulder Screw .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 747-1155

Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0143

Shoulder Scr. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 783-04285F-0637

RH Dash Support Plate

$

$

Not available

27

White Outdoor 783-04323F-0637

LH Dash Support Plate

Note: (not shown)

$34.99

$

Usually ships in 3-6 days

0

28

White Outdoor 931-04308

Upper "G" Style Hood

$104.99

$

Usually ships in 3-6 days

0

30

White Outdoor 925-0963

Miniature Lamp 12V Socket Type

$7.49

$

In Stock, only 1 left!

0

31

White Outdoor 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-0726

Screw 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 925-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

35

White Outdoor 925-1745A

Ignition Key w/Plastic Cover

$17.99

$

In Stock, Qty 20+

0

38

925-1744

Ignition Key w/o Plastic Cover

$

$

Not available

36

White Outdoor 725-04861

Wire Harness (w/Hour Meter)

$164.99

$

Usually ships in 3-6 days

0

37

White Outdoor 936-0142

Flat Washer .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 783-05326-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

39

White Outdoor 783-05327B-0637

LH Pivot Support Bracket

$40.99

$

Usually ships in 3-6 days

0

41

777x43285

Reflective Label

$

$

Not available

42

White Outdoor 931-06564

Lens (Style G)

$44.99

$

Usually ships in 3-6 days

0

43

White Outdoor 951-10573

Fuel Tank 2.75 Gal.

$214.99

$

Usually ships in 3-6 days

0

44

White Outdoor 747-05050

Tank Support Rod LH

$

$

Not available

45

White Outdoor 747-05049

Tank Support Rod RH

$10.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0642

Hex TT Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0
