V 60 GG (13AV60GG897) - Columbia 42" Lawn Tractor (2009) Fender Assembly Parts Diagram

42" Lawn Tractor

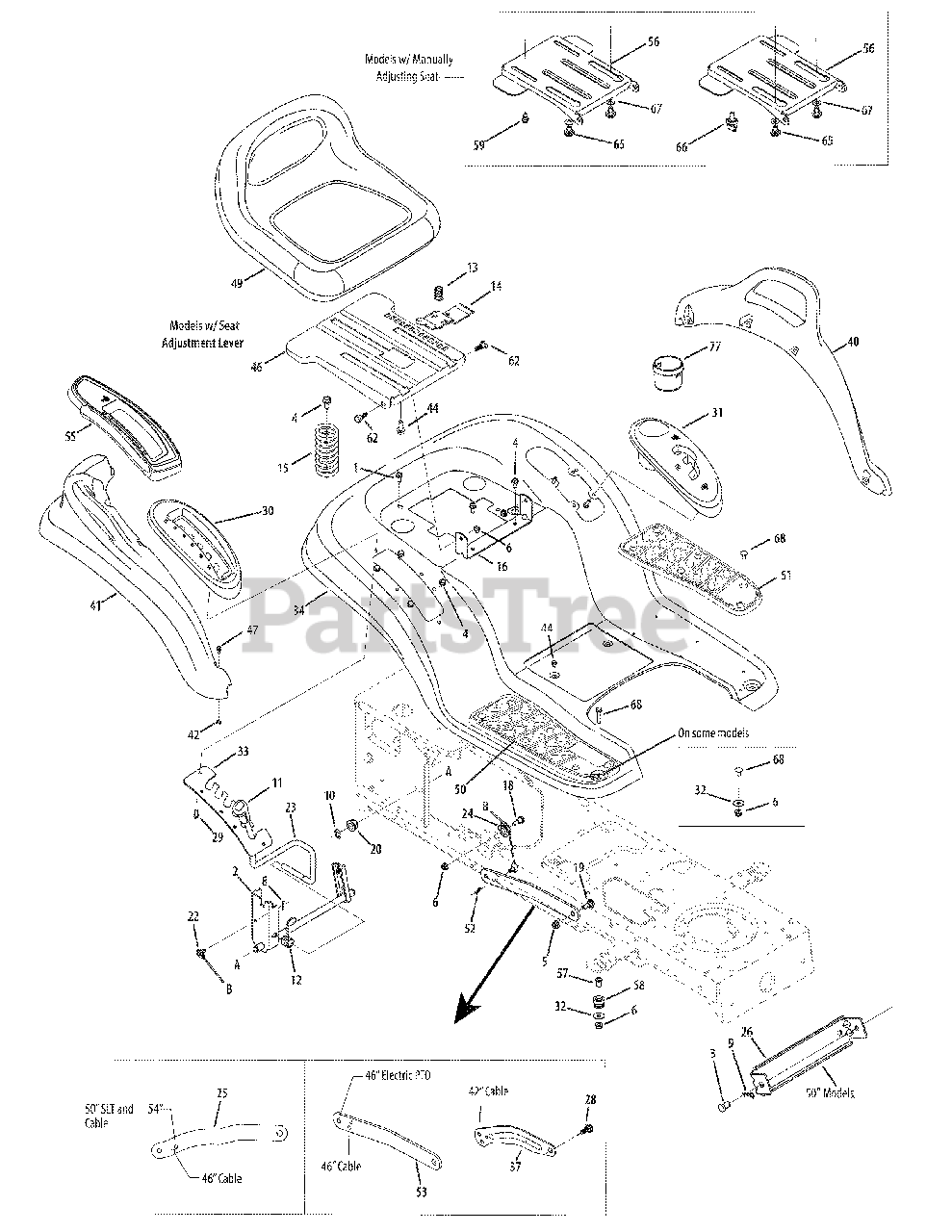

Fender Assembly Parts Diagram

  • Title

2

White Outdoor 683-04223-0637

Lift Shaft Assembly

Note: (42" and 46" Deck)

$

$

Not available

3

White Outdoor 911-0332

Clevis Pin

$16.99

$

In Stock, Qty 16

0

4

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-04065

Hex Flange Locknut 3/8-16 Gr. F,Nylon

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04063

Hex Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 914-0104

Int. Cotter Pin 5/16 Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 914-04023

Internal Cotter Pin .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

10

White Outdoor 716-0106A

E-ring

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

White Outdoor 732-04563

Spring, Compression Seat Adj Levr

$5.49

$

In Stock, only 2 left!

0

14

White Outdoor 783-06050

Lever, Seat Adjust

$10.99

$

In Stock, only 1 left!

0

15

White Outdoor 732-04561

Spring, Compression Seat

$16.99

$

Usually ships in 3-6 days

0

16

White Outdoor 783-06088

Seat, Pivot Bracket

Variations

White Outdoor 783-06088-4021

Seat Pivot Bracket, Cub Yellow - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0691

Seat Pivot Bracket - BLACK JACK (0691)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0638

BRACKET-SEAT PIVOT - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0650

BRACKET-SEAT PIVOT - RED METALLIC (0650)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 783-06088-0665

BRACKET-SEAT PIVOT - YARDMAN GREEN (0665)

$21.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0138A

Shoulder Scr. .437 Dia x .47

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 938-0380

Shoulder Screw .500 x .25 (46"/50")
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

20

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

22

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

24

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

White Outdoor 783-05546-0637

Arm Lift
(Superseded to 783-05546A-0637)

Note: (46"/54" deck w/electric PTO)

$20.99

$

In Stock, only 2 left!

0

26

White Outdoor 783-0720C-0637

Deck Stabilizer Bracket

$45.99

$

In Stock, only 2 left!

0

28

White Outdoor 738-04130

Shoulder Screw .625 x .175: 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

29

White Outdoor 710-0895

Hex Scr. 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

30

White Outdoor 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

White Outdoor 931-2104C

Shift Lever Cover w/Cup Holder

$35.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3078

Flat Washer .344 ID x 1.0

$4.49

$

In Stock, only 4 left!

0

33

White Outdoor 783-0677B-0637

Lift Adjustment Bracket

$

$

Not available

34

White Outdoor 783-06246-0606

Fender

$

$

Not available

37

White Outdoor 783-04494B-0637

Deck Lift Arm RH (42" Deck)
(Superseded to 783-04494C-0637)

$21.99

$

In Stock, only 1 left!

0

37

White Outdoor 783-04711B-0637

Deck Lift Arm LH (Not Shown)
(Superseded to 783-04711C-0637)

$24.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

41

White Outdoor 731-2618

RH Fender Flare

$

$

Not available

42

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

44

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 783-06049-0606

Seat Mount Bracket

$68.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0932

Carriage Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

49

White Outdoor 757-04086

High Back Seat Black
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

50

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

52

White Outdoor 914-0111

Cotter Pin 3/32 dia. x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

53

N/A

Arm Lift (46" deck w/manual PTO & 50" deck)

Note: Not used in this application

$

$

Not available

55

N/A

Lift Lever Cover (Model 60R)

Note: Not used in this application

$

$

Not available

56

White Outdoor 783-04081C-0637

Seat Pivot Bracket, Manually Adjusted
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

57

White Outdoor 735-0690

Grommet

$11.99

$

In Stock, only 1 left!

0

58

White Outdoor 750-3310

Flg. Spacer .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

59

White Outdoor 710-0870

Hex Wash Hd Scr. 3/8-16 x .625 Gr. 5

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 938-0296

Shoulder Bolt .437 Dia. x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 738-04012A

Shoulder Spacer .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

66

White Outdoor 720-04061

Knob, 3/8-16 x .625

$5.49

$

In Stock, Qty 20+

0

67

White Outdoor 936-0300

Flat Washer .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 710-0451

Carriage Bolt 5/16 x 18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 726-0278

Insulator Plate

Note: Not Shown

$6.99

$

In Stock, Qty 10

0

White Outdoor 757-04073

Arm Rest Kit

Note: Not Shown

$130.99

$

Usually ships in 3-6 days

0

White Outdoor 747-1130B

Deck Stabilizer Rod

Note: Not Shown

$41.99

$

In Stock, only 3 left!

0

White Outdoor 720-0309A

Seat Adjuster Grip

Note: Not Shown

$9.49

$

Usually ships in 3-6 days

0

White Outdoor 783-0611

Seat Stop

Note: Not Shown

$10.99

$

In Stock, only 3 left!

0

White Outdoor 710-04482

Hex Flange Bolt, 3/8-16 x .875

Note: Not Shown.Stop bolt used on RH bottom of seat

$4.49

$

In Stock, Qty 16

0

White Outdoor 783-06448

Retaining Clip for seat switch

Note: Not shown

$5.99

$

In Stock, only 3 left!

0
