V 554 - Husqvarna 54" Zero-Turn Mower (Original) STEERING Parts Diagram

54" Zero-Turn Mower

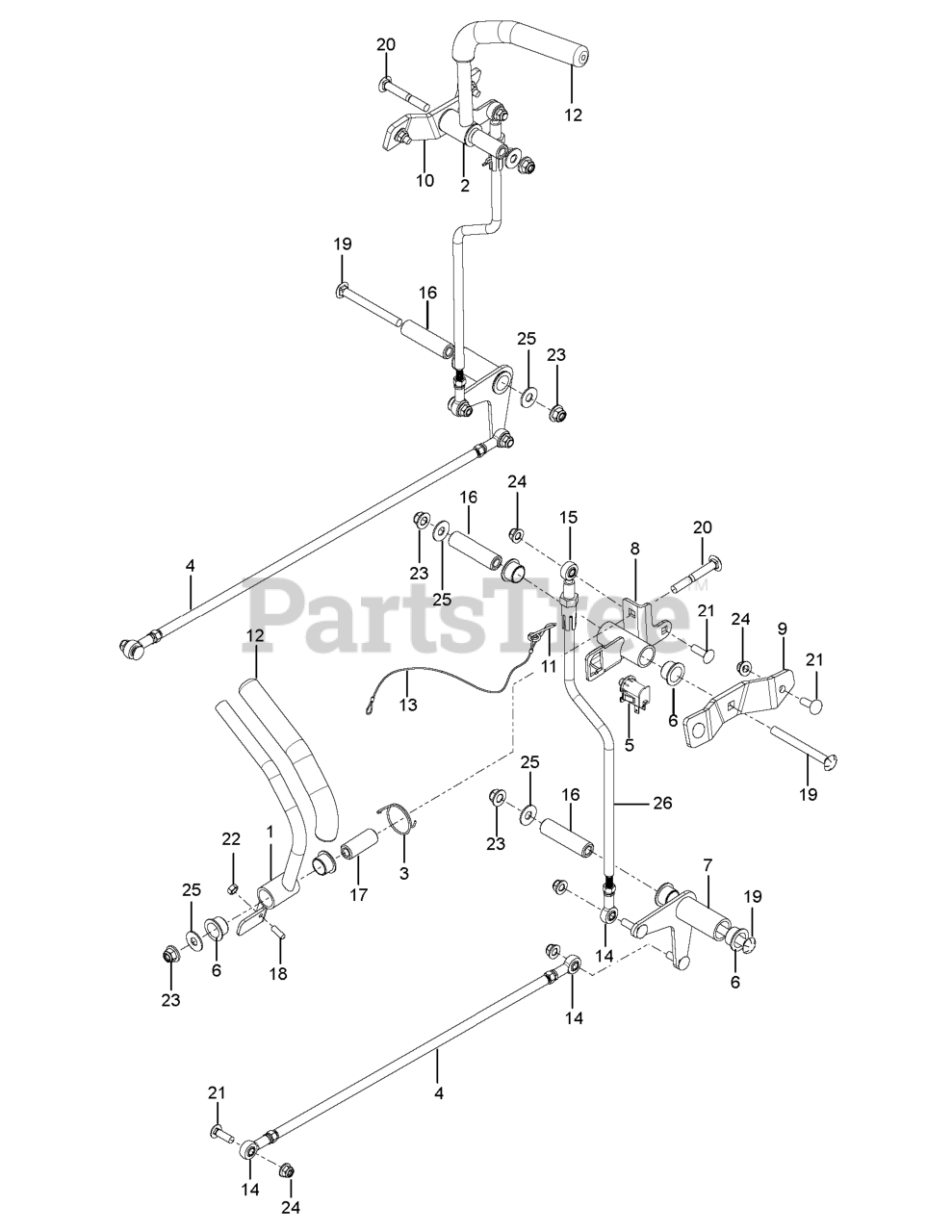

STEERING Parts Diagram

  • Title

15

Husqvarna 598852501

CONTROL ROD COUPLER KIT

Note: Control Rod Coupler Service Kit

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 590624501

SPRING TORSION; OPS

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 596517801

KIT.ASSEMBLY.STANDON.CONTROLS

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

10

Husqvarna 590600002

BRACKET RH PIVOT; STAND ON E-D

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 582687502

BELLCRANK WELDMENT; STAND ON C

$20.99

$

Usually ships in 3-10 days

0

19

Husqvarna 589398602

SCREW

$

$

Not available

11

Husqvarna 582551901

CLIP.RETAINER.CONTROLS

$6.99

$

In Stock, only 1 left!

0

8

Husqvarna 590624202

BELLCRANK WELDMENT; CONTROLS;

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 582687901

LINKAGE CONTROL LINKAGE ASSY;

$

$

Not available

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 590600102

BRACKET LH PIVOT; STAND ON E-D

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 1 left!

0

6

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

18

Husqvarna 592727201

SCREW ASME B18.3, HEXAGON SOCK

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Husqvarna 582687302

SPACER BELLCRANK PIVOT SHORT

$

$

Not available

Husqvarna 596517701

KIT.SVC.ASM.LEVER.RH

$37.99

$

Usually ships in 3-10 days

0

Husqvarna 596531801

KIT.SVC.ASM.LEVER.CNTRL.LH

Note: 1, 3, 5,, 6, 7, 8, 12, 17, 18, 20, 22, 23, 25

$74.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

25

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 588692601

ROD END FEMALE RH THREAD
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 582686702

HANDLE ASSY HANDLE WELDMENT, R

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 582687301

SPACER BELLCRANK PIVOT LONG

$10.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590623502

LEVER ASSY WELDMENT; OPS E-DIP

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

26

Husqvarna 596931601

Controls

Note: Incl. 14 & 15

$45.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590623901

GRIP 1/2 DIAM; .215 THICK; 8.5

$7.49

$

Usually ships in 3-10 days

0
