V 554 (967672601-00) - Husqvarna 54" Zero-Turn Mower (2017-11) PARKING BRAKE Parts Diagram

54" Zero-Turn Mower

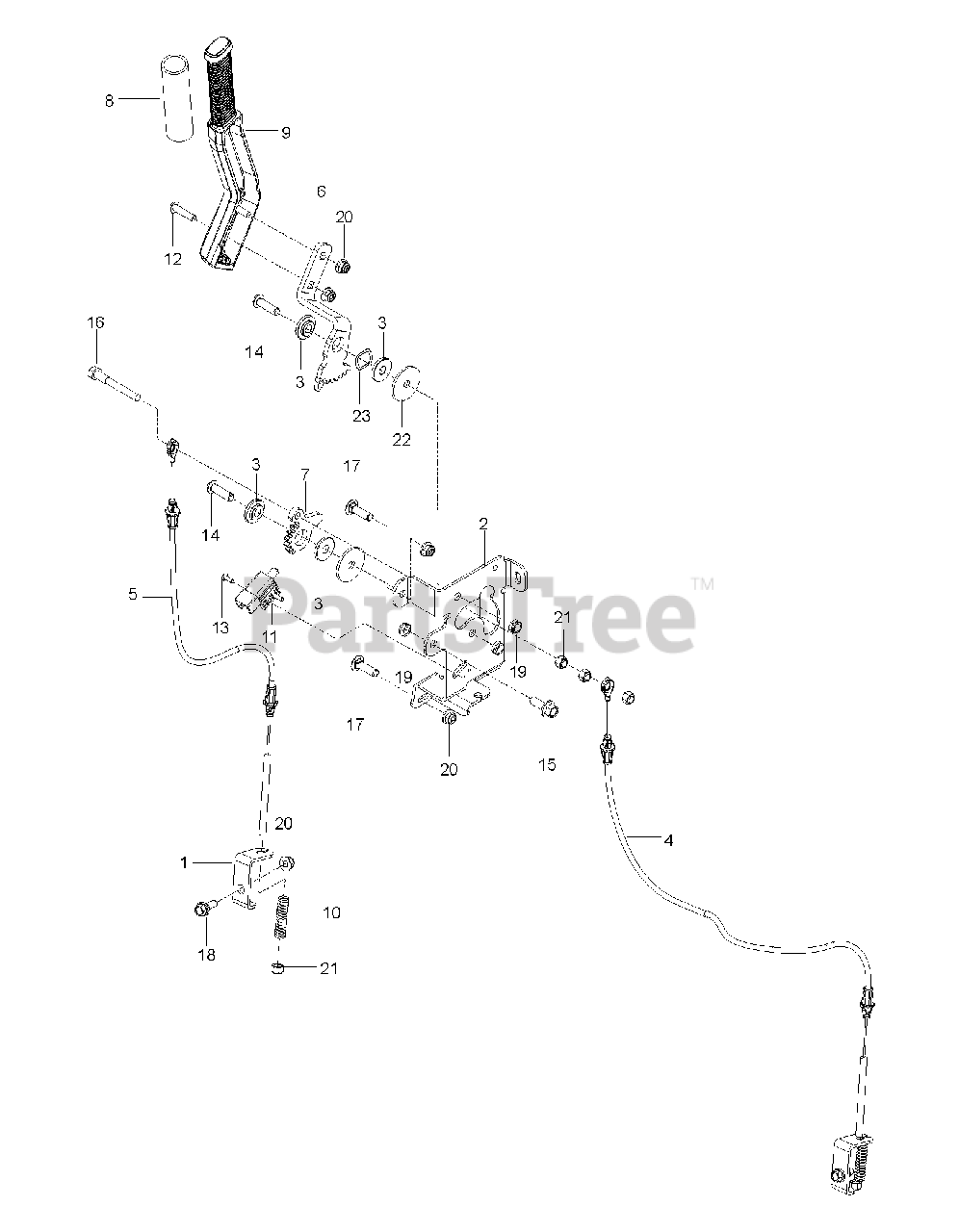

PARKING BRAKE Parts Diagram

  • Title

1

Husqvarna 590721101

BRACKET BRAKE ARM; PIVOT

$

$

Not available

2

Husqvarna 590706002

BRACKET PARKING BRAKE;STAND ON

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539132161

BUSHING, BRAKE

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 590586601

CABLE PARKING BRAKE;STAND ON;L

$47.99

$

In Stock, only 1 left!

0

5

Husqvarna 590586701

CABLE PARKING BRAKE;STAND ON;R

$44.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590204301

GEAR INPUT;PARKING BRAKE;STAND

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590204501

GEAR OUTPUT;PARKING BRAKE;STAN

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 592619301

GRIP PARKING BRAKE; STAND ON

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 588670401

LEVER PARKING BRAKE; STAND ON

$68.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590878201

SPRING PARKING BRAKE; STAND ON

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 578296403

SCREW.BUTTHEAD.5/16-18X1-1.25

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 590862601

SCREW HEXALOBULAR SOCKET BUTTO
(Superseded to 589797202)

$2.49

$

Usually ships in 3-10 days

0

15

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

16

Husqvarna 590790801

BOLT HEXAGON SHOULDER 5/16-18

$48.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

18

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

23

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0
