V 554 (967672601-00) - Husqvarna 54" Zero-Turn Mower (2017-11) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

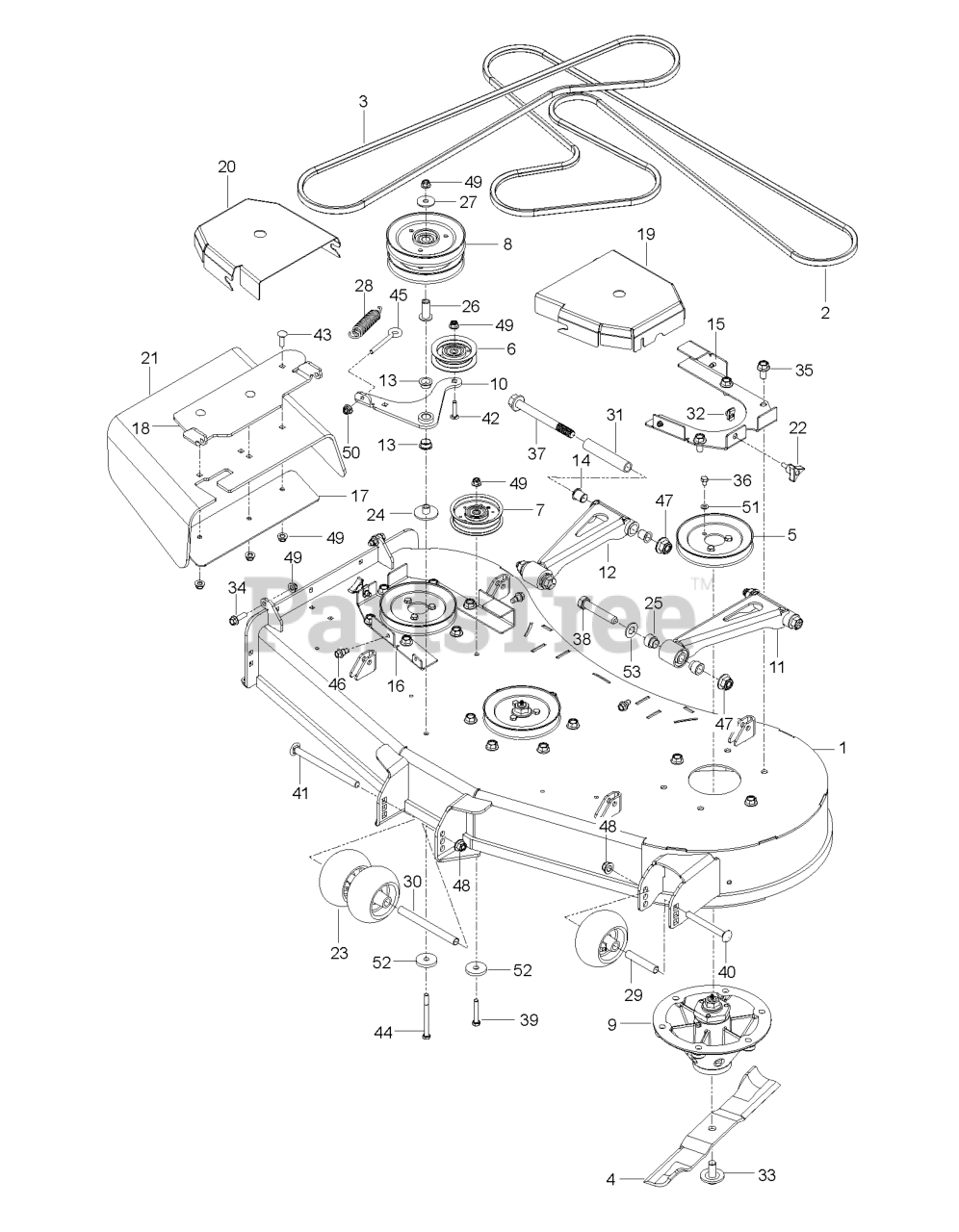

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 593125601

DECK.WLDT.54"CCC.STANDON X668

$2165.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501851401

BELT STANDON 54 CCC DECK

$121.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592873501

Stand-On Deck Drive Belt

$51.99

$

In Stock, only 1 left!

0

4

Husqvarna 582107702

BLADE STANDON 54 CCC DISCHARGE

$48.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130646

PULLEY - 6.57

$26.99

$

In Stock, only 2 left!

0

6

Husqvarna 590542401

PULLEY.IDLER.FLAT.3.06"

$39.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590542501

Flat Idler Pulley, 4

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 589595701

PULLEY.STANDON.54CCC.STACKED

$159.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580943306

Spindle Assembly, Iron

$363.99

$

In Stock, only 1 left!

0

10

Husqvarna 589808502

ARM STANDON WELDMENT; DECK TEN

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 590185802

ARM STANDON LH DRAWBAR WELDMEN

$205.99

$

Usually ships in 3-10 days

0

12

Husqvarna 590185902

ARM STANDON 54 CCC RH DRWBR

$205.99

$

Usually ships in 3-10 days

0

13

Husqvarna 501603706

BEARING FLANGED; PLASTIC 5/8"

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 501603705

BEARING FLANGED;PLASTIC 7/8" I

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589603702

BRACKET STANDON 54 CCC LH PULL

$

$

Not available

16

Husqvarna 589418702

BRACKET STANDON 54 CCC RH PULL

$

$

Not available

17

Husqvarna 589418103

BRACKET STANDON LOWER DEFLECTO

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 589418203

BRACKET STANDON UPPER DEFLECTO

$45.99

$

Usually ships in 3-10 days

0

19

Husqvarna 590183802

COVER STANDON 54 CCC LH PULLEY

$45.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589418502

COVER STANDON 54 CCC RH PULLEY

$51.99

$

Usually ships in 3-10 days

0

21

Husqvarna 592797401

DEFLECTOR STANDON MOLDED DECK

$62.99

$

In Stock, only 1 left!

0

22

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 590185301

SPACER STANDON DECK TENSIONER

$

$

Not available

25

Husqvarna 590325201

SPACER STANDON DRAWBAR BEARING

$

$

Not available

26

Husqvarna 590185401

SPACER STANDON STACKED PULLEY

$

$

Not available

27

Husqvarna 590185501

SPACER STANDON STACKED PULLEY

$

$

Not available

28

Husqvarna 539106850

SPRING

$

$

Not available

29

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

30

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

31

Husqvarna 590325301

TUBE STANDON DRAWBAR SPACER

$

$

Not available

32

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

33

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

34

Husqvarna 525834201

HHFS 3/8-16 X 1.25 GD 5

$

$

Not available

35

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

36

Husqvarna 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 590678701

BOLT HEXAGON HEAD WITH FLANGE

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 580754601

5/8-11 X 3-1/2 HHB GRADE 5

$

$

Not available

39

Husqvarna 874780636

BOLT.HEX
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

41

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

44

Husqvarna 590678601

BOLT HEXAGON HEAD 3/8-16 X 4-1

$

$

Not available

45

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

46

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

47

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

49

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

50

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

51

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

52

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

53

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available
