V 554 (967672601-00) - Husqvarna 54" Zero-Turn Mower (2017-11) IGNITION SYSTEM Parts Diagram

54" Zero-Turn Mower

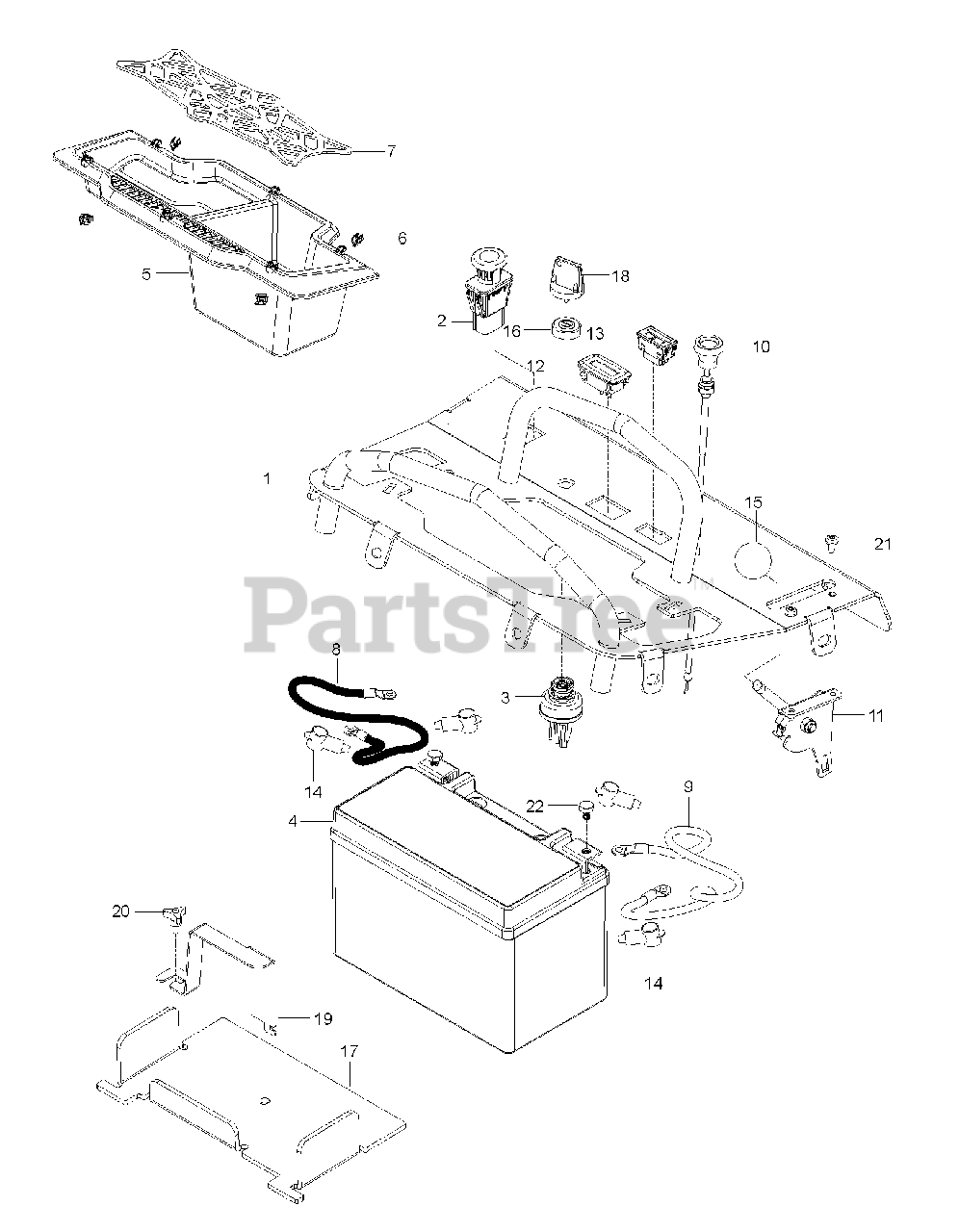

IGNITION SYSTEM Parts Diagram

  • Title
1

Husqvarna 501866202

CONTROL PANEL WELDMENT

$284.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

$60.99

$

In Stock, only 1 left!

0

3

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

In Stock, only 1 left!

0

4

Husqvarna 589819501

Starter Battery, 8AH Agm Leoch

$125.99

$

In Stock, only 1 left!

0

5

Husqvarna 582685801

TRAY.STORAGE.MS428
(Superseded to 582685802)

$14.99

$

Usually ships in 3-10 days

0

6

$4.99

$

Usually ships in 3-10 days

0

7

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 592838301

PRIMARY CABLE STAND ON SINGLE

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 592838301

PRIMARY CABLE STAND ON SINGLE

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574206903

CABLE, CHOKE, 38
(Superseded to 531077201)

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 582688701

THROTTLE, KAWASAKI 33"

$

$

Not available

12

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

13

Husqvarna 592872702

LED.SMALL.FUEL.LEVEL.V500

$26.99

$

Usually ships in 3-10 days

0

14

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

16

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 590577001

PAD BATTERY TEMP ISOLATION, ST

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 590927606

STRAP.PNT.BATTERY.HOLD.DOWN.GY

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582460801

SCREW M6 X 8MM HEX CAP

$

$

Not available

Husqvarna 592876801

HARNESS MAIN, V500X V500 CARBU

Note: NOT SHOWN

$241.99

$

Usually ships in 3-10 days

0

Husqvarna 589838501

HARNESS.ADAPTER.KAWASAKI.FX.PZ

Note: NOT SHOWN

$22.99

$

Usually ships in 3-10 days

0

Husqvarna 592830801

HARNESS ASSY JUMPER, STAND ON

Note: NOT SHOWN

$62.99

$

Usually ships in 3-10 days

0

Husqvarna 592964701

HARNESS JUMPER, BLADE CLUTCH 1

Note: NOT SHOWN

$31.99

$

Usually ships in 3-10 days

0
