V 554 (967672601-00) - Husqvarna 54" Zero-Turn Mower (2017-11) ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

54" Zero-Turn Mower

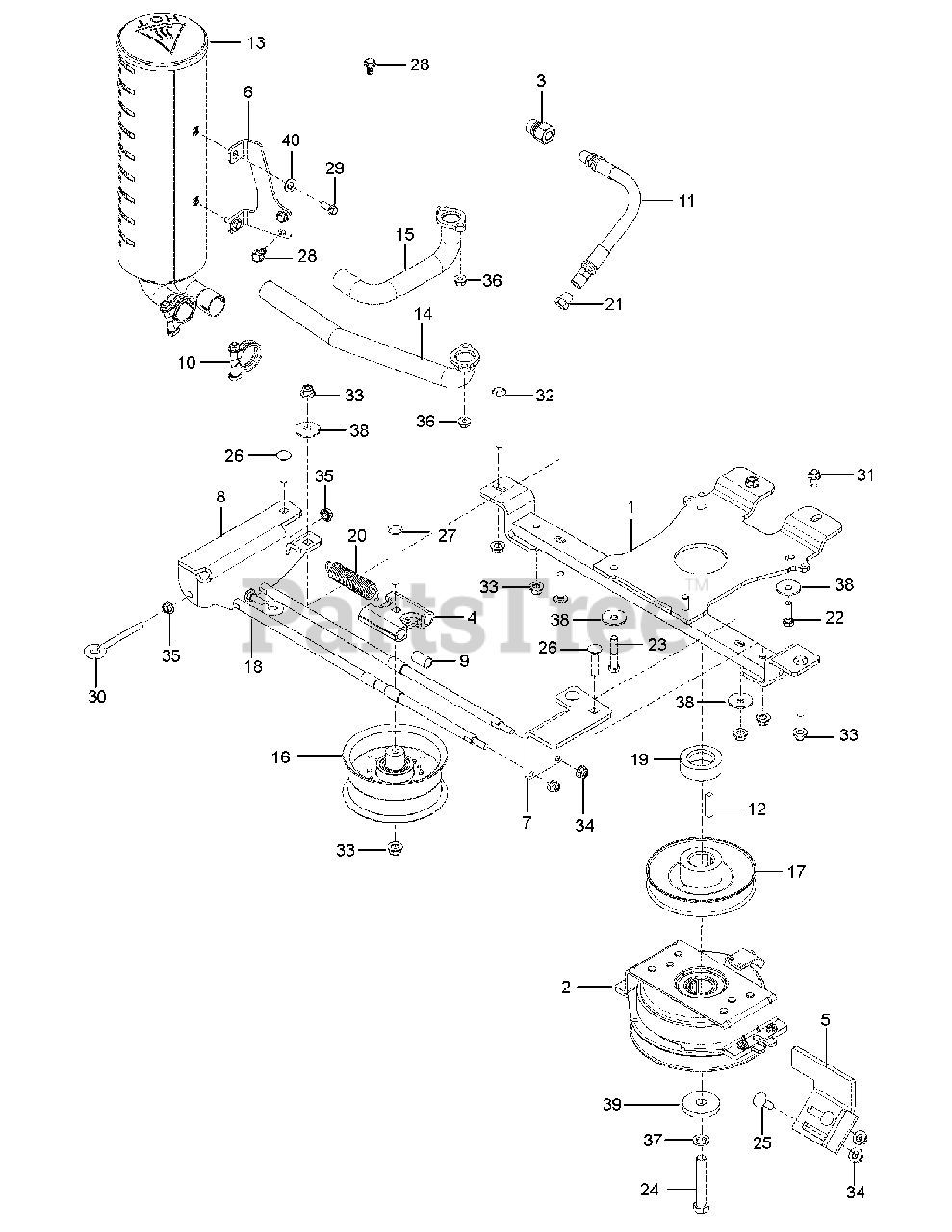

ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

  • Title

1

Husqvarna 590812902

Plate

$159.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589414601

CLUTCH OGURA GT2.75; 6.85" OP

$569.99

$

In Stock, only 1 left!

0

3

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

4

Husqvarna 590635601

BLOCK STANDON DECK DRIVE TENSI

$

$

Not available

5

Husqvarna 589604602

BRACKET STANDON CLUTCH ANTI-RO

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590907402

Muffler Mounting Bracket

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589807302

BRACKET STANDON LH DRIVE TENSI

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 589807402

BRACKET STANDON RH DRIVE TENSI

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 590646801

Sleeve Bushing, Plastic

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 596038101

CLAMP 33 MM EXHAUST TUBE

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

12

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 589721601

MUFFLER.ASSY.STAND.ON.VERTICAL

$241.99

$

Usually ships in 3-10 days

0

14

Husqvarna 589721001

MUFFLER.LH.HEADER.751V

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589721101

MUFFLER.RH.HEADER.751V

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 589603801

PULLEY.5"X2.03".FLAT.IDLER

$100.99

$

Usually ships in 3-10 days

0

17

Husqvarna 510019801

PULLEY, ENGINE

$56.99

$

In Stock, only 1 left!

0

18

Husqvarna 589813601

SHAFT.TNSNR.DRIVE.DECK.STANDON

$

$

Not available

19

Husqvarna 590680601

SPACER ENGINE PULLEY

$

$

Not available

20

Husqvarna 589807501

SPRING STANDON DECK DRIVE EXTE

$

$

Not available

21

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 10

0

25

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 872140628

BOLT.RDHD SQNK 3/8-16 X 3-1/2

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 590003301

Bolt

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 592858701

BOLT 5/16-18 X .75 HEX FLANGE

$6.49

$

In Stock, Qty 9

0

30

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

31

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 589398602

SCREW

$

$

Not available

33

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

34

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

37

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

38

Husqvarna 539912063

CONE WASHER

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

40

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0
