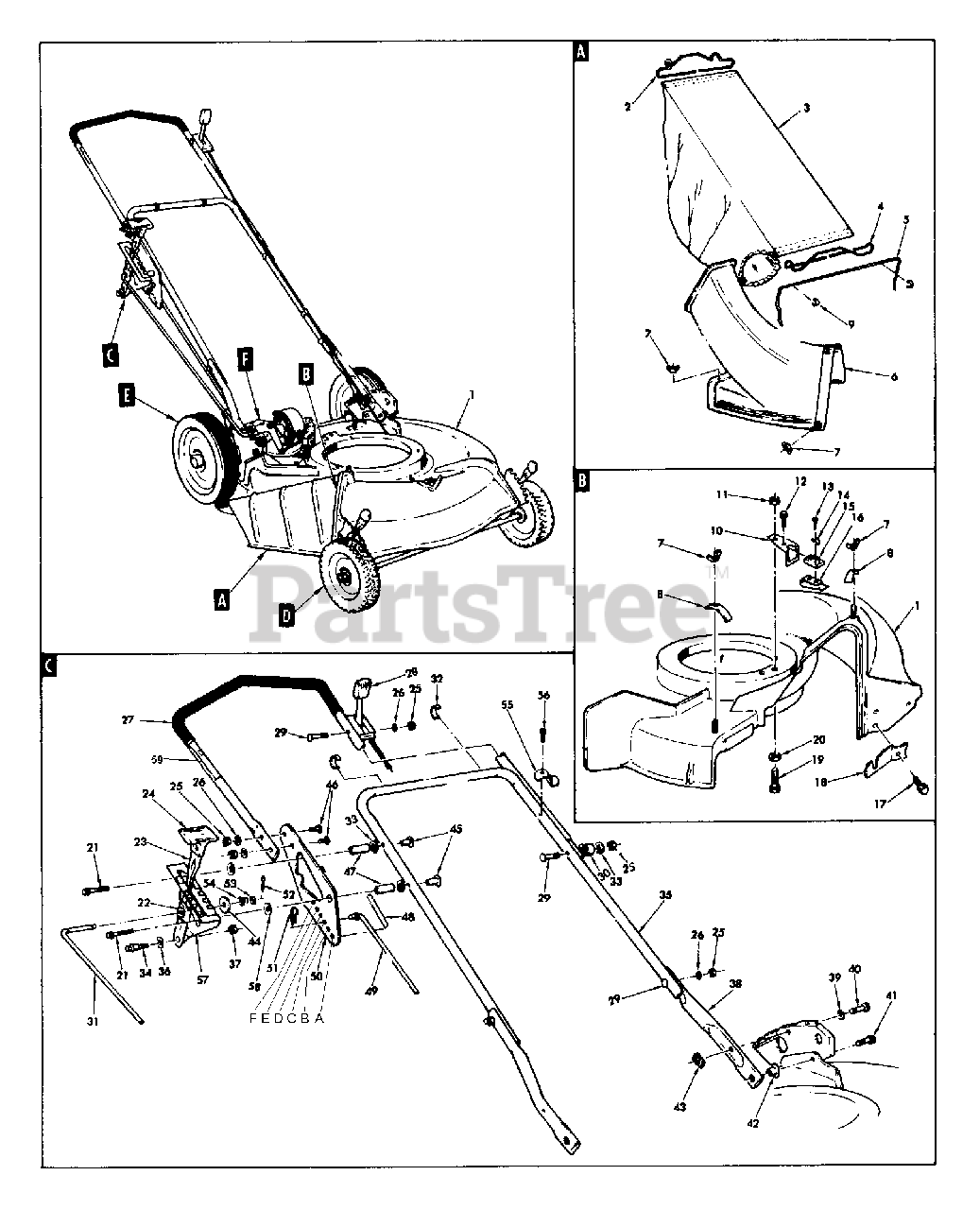

V 21XPS (83555) - Snapper 21" Walk-Behind Mower, 3.5hp Grass Catcher And Side Chute Parts Diagram

21" Walk-Behind Mower, 3.5hp

Grass Catcher And Side Chute Parts Diagram

  • Title

1

Snapper 50297

Deck Assembly

$

$

Currently unavailable

2

Snapper 7019247

Rear Wire
(Superseded to 7019247YP)

Note: Was 31128

$22.99

$

In Stock, only 3 left!

0

3

Snapper 11098

Grass Bag

$

$

Currently unavailable

4

Snapper 7031127

Front Wire
(Superseded to 7031127YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 37305

Roll Bar

$

$

Currently unavailable

6

Snapper 7060315

Bag Chute Assembly

Note: Was 50293

$

$

Not available

7

Snapper 7090375

5/16-18 Wing Nut
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7031123

Clamp
(Superseded to 7031123YP)

$28.99

$

Usually ships in 2-12 days

0

9

Snapper 7011780

Nylon Ring
(Superseded to 7011780YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7050802

Ground Strap

Note: Was 31029, Model V-21XP

$

$

Not available

10

Snapper 31144

Ground Strap
(Superseded to 5031144)

Note: Model V-21XPS

$125.99

$

Usually ships in 2-12 days

0

11

Snapper 7090222

5/16-24 Hex Lock Nut
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

13

Snapper 7090379

10-18 x 3/4 Screw
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090385

Tab Washer

$

$

Not available

15

Snapper 10952

Insulator

$

$

Currently unavailable

16

Snapper 10975

Interlock

$

$

Currently unavailable

17

Snapper 7090361

5/16-18 x 5/8 SEMS
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

18

Snapper 31124

Side Bracket

$

$

Currently unavailable

19

Snapper 7090244

5/16-24 x 1 5/8 CS Grade 5
(Superseded to 7091513YP)

Note: Was 90359

$4.49

$

In Stock, Qty 13

0

20

Snapper 7090188

5/16 SAE Flat Washer
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 90012

Hex Hd. Mach. Screw

$

$

Currently unavailable

22

Snapper 11116

Wear Block

$

$

Currently unavailable

23

Snapper 7031008

Shift Handle
(Superseded to 7031008YP)

$8.49

$

Usually ships in 2-12 days

0

24

Snapper 7010957

Shift Knob

$

$

Currently unavailable

25

Snapper 7091576

1/4-20 Hex Nut
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7091294

1/4 Internal Tooth lock washer
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

27

Snapper 50619

Upper Handle Ass'y.

$

$

Currently unavailable

28

Snapper 7018186

Throttle Control
(Superseded to 7018186YP)

Note: Was 18067

$69.99

$

Usually ships in 2-12 days

0

29

Snapper 7090000

1/4-20 x 1 1/2 Car. Bolt

$

$

Not available

30

Snapper 11798

Spacer

$

$

Currently unavailable

31

Snapper 37326

Shift Rod

$

$

Currently unavailable

32

Snapper 7010996

Ring, Nylon
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7011763

Fender Washer 1 x 5/16 x 1/16
(Superseded to 7011763SM)

$4.49

$

In Stock, only 4 left!

0

34

Snapper 7011078

5/16 Shoulder Screw
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

35

Snapper 7036037

Lower Handle Pivoting

Note: Was 39557

$

$

Not available

36

Snapper 7011079

Spring Washer
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

37

Snapper 7090197

5/16-18 Jam Nut
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7038209

Lower Handle Stationary

Note: Was 37333

$

$

Not available

39

Snapper 7090189

5/16 Internal-External tooth lock washer
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

40

Snapper 7091541

HWST, 5/16C X3/4 YZ
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

41

UNKNOWN

$

$

Not available

42

Snapper 7090388

5/16-18 Dot "T" Nut
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

43

Snapper 7010974

5/16-24 Weld Nut
(Superseded to 7010974YP)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 11114

Friction Washer

$

$

Currently unavailable

45

Snapper 11803

Tee Nut, R.B.

$

$

Currently unavailable

46

Snapper 7091530

1/4-20 x 3/4 Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 1 left!

0

47

Snapper 7011800

Spacer

$

$

Not available

48

Snapper 11810

Decal

$

$

Currently unavailable

49

Snapper 11799

Rod Release

$

$

Currently unavailable

50

Snapper 39556

Bracket, Handle

$

$

Currently unavailable

51

Snapper 7011714

Hair Pin, plated
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

52

Snapper 7091598

Cotter Pin, 1/8 x 3/4
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

53

Snapper 7090122

3/8 SAE Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 10946

Shift Spring

$

$

Currently unavailable

55

Snapper 31734

Bracket, Handle L.H.

$

$

Currently unavailable

56

Snapper 7091075

Screw, 10-18
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0

57

Snapper 31009

Detent

$

$

Currently unavailable

58

Snapper 7091294

1/4 SAE Washer
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

59

Snapper 11811

Handle Decal

$

$

Currently unavailable
