V 21P (83053) - Snapper 21" Walk-Behind Mower, 3.5hp Mower Assembly Parts Diagram

21" Walk-Behind Mower, 3.5hp

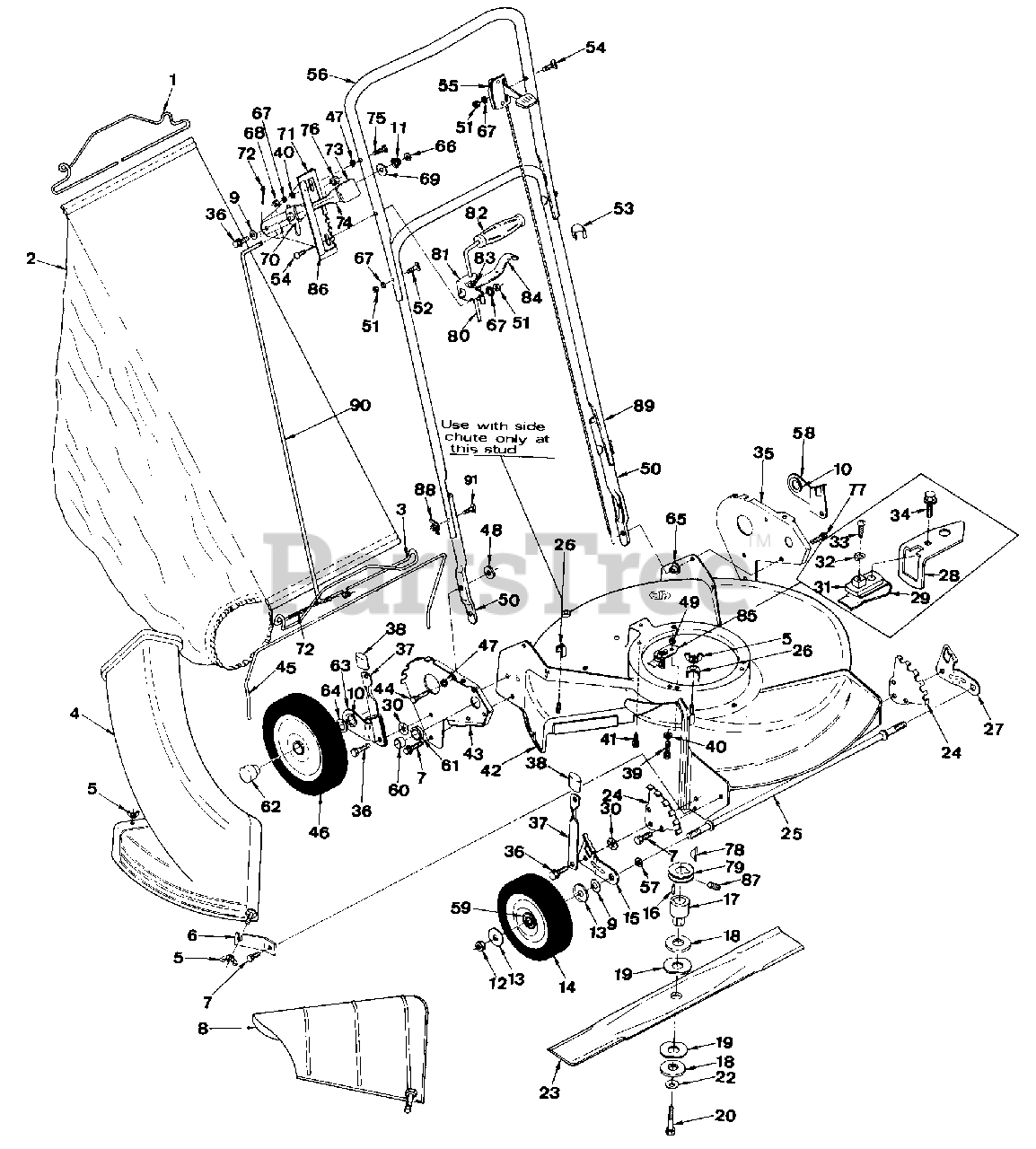

Mower Assembly Parts Diagram

  • Title

1

Snapper 7019247

Rear Wire
(Superseded to 7019247YP)

Note: Was 31128

$22.99

$

In Stock, only 3 left!

0

2

Snapper 11098

Grass Bag

$

$

Currently unavailable

3

Snapper 7031127

Front Wire
(Superseded to 7031127YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7060315

Bag Chute Assembly

Note: Was 50293

$

$

Not available

5

Snapper 7090375

5/16-18 Wing Nut
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 31124

Side Brkt.

$

$

Currently unavailable

7

Snapper 7090361

5/16-18 x 5/8 SEMS
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

8

Snapper 50302

Side Chute Ass'y.

$

$

Currently unavailable

9

Snapper 7011079

Spring Washer
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7026693

Bearing
(Superseded to 707608)

Note: Was 10953

$9.49

$

In Stock, Qty 20+

0

11

Snapper 10946

Shift Spring

$

$

Currently unavailable

12

Snapper 7090377

7/16-20 Jam Lock Nut
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7031121

Hub Cap, Front
(Superseded to 7031121YP)

$6.99

$

In Stock, Qty 10

0

14

Snapper 7011083

Front Wheel, 7 x 1:50

$

$

Not available

15

Snapper 7031017

Wheel Arm, Front RH
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 21018

Shock Clutch

$

$

Currently unavailable

Snapper 60131

Shock Clutch Kit

$

$

Currently unavailable

18

Snapper 7031122

Clutch Washer

$

$

Not available

19

Snapper 7011102

Fiber Washer

$

$

Not available

20

Snapper 7090167

Cap Screw, 3/8-24 x 2", Grade 5
(Superseded to 7090167SM)

Note: Was 10007

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7011132

Washer
(Superseded to 7011132YP)

$4.49

$

In Stock, only 1 left!

0

23

Snapper 7018193

Cutter Blade

Note: Was 18065

$

$

Not available

24

Snapper 7037300

Front Bracket

$30.99

$

In Stock, only 1 left!

0

25

Snapper 7021119

Axle
(Superseded to 7021119YP)

$22.99

$

In Stock, Qty 17

0

26

Snapper 7031123

Clamp
(Superseded to 7031123YP)

$28.99

$

Usually ships in 2-12 days

0

27

Snapper 7031016

Wheel Arm, Front.LH
(Superseded to 7031016YP)

$7.99

$

In Stock, only 3 left!

0

28

Snapper 7050802

Ground Strap

Note: Was 31029, Model V-21P

$

$

Not available

28

Snapper 31144

Ground Strap
(Superseded to 5031144)

Note: Model V-21PS

$125.99

$

Usually ships in 2-12 days

0

28

Snapper 31181

Ground Strap

Note: Model V-21P-4

$

$

Currently unavailable

29

Snapper 10975

Interlock

$

$

Currently unavailable

30

Snapper 11104

Push Nut

$

$

Currently unavailable

31

Snapper 10952

Insulator

$

$

Currently unavailable

32

Snapper 7090385

Tab Washer

$

$

Not available

33

Snapper 7090379

10-18 x 3/4" Screw
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7091075

10-24 x 5/8 SEMS CS
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0

35

Snapper 7037309

Rear Bracket, LH

$

$

Not available

36

Snapper 7011078

5/16 Shoulder Screw
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

37

Snapper 10921

Height Latch

$

$

Currently unavailable

38

Snapper 7011093

Grip
(Superseded to 7011093YP)

$6.49

$

In Stock, Qty 20+

0

39

Snapper 7090244

5/16-24 x 1 5/8" CS, Grade 5
(Superseded to 7091513YP)

Note: Was 90359

$4.49

$

In Stock, Qty 13

0

40

Snapper 7090188

5/16 SAE Flat Washer
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7090324

3/8-16 x 1 Cap Screw ST
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 50297

Deck Assembly

$

$

Currently unavailable

43

Snapper 7037308

Rear Bracket, RH

$

$

Not available

44

Snapper 7090227

5/16-24 x 5/8 HHCS

$

$

Not available

45

Snapper 37305

Roll Bar

$

$

Currently unavailable

46

Snapper 7010945

Rear Wheel

$

$

Not available

47

Snapper 7090189

5/16 Int.-Ext. Tooth L'washer
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

48

Snapper 7010974

5/16-24 Weld Nut
(Superseded to 7010974YP)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 7090222

5/16-24 Hex Lock Nut
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

50

Snapper 7038209

Lower Handle Stat

Note: Was 37333

$

$

Not available

51

Snapper 7090095

1/4-28 Hex Nut
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

52

Snapper 11027

1/4-28 x 1 1/4" CH Bolts

$

$

Currently unavailable

53

Snapper 7010098

Clip

$

$

Currently unavailable

54

Snapper 11028

1/4-28 x 1 1/2 CH Bolt

$

$

Currently unavailable

55

Snapper 7018186

Throttle Control
(Superseded to 7018186YP)

Note: Was 18067

$69.99

$

Usually ships in 2-12 days

0

56

Snapper 35949

Upper Handle

$

$

Currently unavailable

57

Snapper 7011103

Spacer

$

$

Not available

58

Snapper 7031019

Wheel Arm, Rear LH
(Superseded to 7031019YP)

$30.99

$

Usually ships in 2-12 days

0

59

Snapper 7011125

Bearing
(Superseded to 7011125YP)

$11.99

$

Usually ships in 2-12 days

0

60

Snapper 7011726

Flex Bushing

$

$

Not available

61

Snapper 7010756

Ball Bearing
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

62

Snapper 7011113

Hub Cap, Plastic
(Superseded to 7011113YP)

$3.49

$

Usually ships in 2-12 days

0

63

Snapper 7032722

Wheel Arm, Rear RH
(Superseded to 7032722YP)

Note: Was 31018

$

$

Not available

64

Snapper 7010935

3/4 Special Washer
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

65

Snapper 7090388

5/16-18 Dot "T" Nut
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

66

Snapper 7090122

3/8 SAE Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

67

Snapper 7090053

1/4 Int. Tooth L'Washer
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

68

Snapper 7091576

1/4-20 Hex Nut
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

69

Snapper 11114

Friction Washer

$

$

Currently unavailable

70

Snapper 11116

Wear Block

$

$

Currently unavailable

71

Snapper 31009

Detent

$

$

Currently unavailable

72

Snapper 7091598

1/8" x 3/4" Cotter Pin
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

73

Snapper 7010957

Shift Knob

$

$

Currently unavailable

74

Snapper 7031008

Shift Handle
(Superseded to 7031008YP)

$8.49

$

Usually ships in 2-12 days

0

75

Snapper 7090078

1/4-20 x 1 1/4 Carriage Bolt
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

76

Snapper 7090197

5/16-18 Jam Nut
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

77

Snapper 7091541

5/16-18 x 3/4 HHWFCS ST
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

78

Snapper 7010783

Hi-Pro Key
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

79

Snapper 21170

Engine Pulley
(Superseded to 5021170)

Note: Model V-21P-PS

$

$

Not available

79

Snapper 21195

Engine Pulley
(Superseded to 5021195)

Note: Model V-21P-4

$

$

Currently unavailable

80

Snapper 37326

Release Rod

$

$

Currently unavailable

81

Snapper 31178

Release Brkt.

$

$

Currently unavailable

82

Snapper 11721

Grip

$

$

Currently unavailable

83

Snapper 11722

Spring

$

$

Currently unavailable

84

Snapper 7031177

Release Latch

$

$

Currently unavailable

85

Snapper 7050802

Interlock Ass'y.

Note: Was 50308, Model V-21P

$

$

Not available

85

Snapper 7050802

Interlock Ass'y.

Note: Was 50320, Model V-21PS

$

$

Not available

85

Snapper 7050802

Interlock Ass'y.

Note: Was 50342, Model V-21P-4

$

$

Not available

86

Snapper 10949

Shift Decal

$

$

Currently unavailable

87

Snapper 7090471

1/4-20 x 5/16 Skt. Set Screw
(Superseded to 7090471YP)

$4.49

$

Usually ships in 2-12 days

0

88

Snapper 7015693

Wing Nut
(Superseded to 014X79MA)

Note: Was 50348

$4.99

$

Usually ships in 2-12 days

0

89

Snapper 7036037

Lower Handle Pivoting

Note: Was 37331

$

$

Not available

90

Snapper 37326

Shift Rod

$

$

Currently unavailable

91

Snapper 7090463

1/4-28 x 1 3/4 Curved Head Bolt

$

$

Not available

Snapper 7038391

Heat Shield, 3 1/2 HP
(Superseded to 7038391YP)

Note: Was 31135 (Model V-21P); Not Shown

$27.99

$

Usually ships in 2-12 days

0

Snapper 7038391

Heat Shield, 4 HP
(Superseded to 7038391YP)

Note: Was 31190 (Model V-21P); Not Shown

$27.99

$

Usually ships in 2-12 days

0

Snapper 7090457

Lock Washer

Note: (Model V-21P); Not Shown

$

$

Not available

Snapper 7038391

Heat Shield, 3 1/2 HP
(Superseded to 7038391YP)

Note: Was 31135 (Model V-21PS); Not Shown

$27.99

$

Usually ships in 2-12 days

0

Snapper 7038391

Heat Shield, 4 HP
(Superseded to 7038391YP)

Note: Was 31190 (Model V-21PS); Not Shown

$27.99

$

Usually ships in 2-12 days

0

Snapper 7090457

Lock Washer

Note: (Model V-21PS); Not Shown

$

$

Not available

Snapper 7011167

Switch Key
(Superseded to 7011167YP)

Note: (Model V-21PS); Not Shown

$5.99

$

In Stock, only 1 left!

0

Snapper 31141

Switch Plate

Note: (Model V-21PS); Not Shown

$

$

Currently unavailable

Snapper 11770

Battery Assembly

Note: (Model V-21PS); Not Shown

$

$

Currently unavailable

Snapper 57081

Battery Clamp

Note: (Model V-21PS); Not Shown

$1.99

$

Usually ships in 2-12 days

0

Snapper 7011141

Harness Ass'y.

Note: (Model V-21PS); Not Shown

$

$

Currently unavailable
