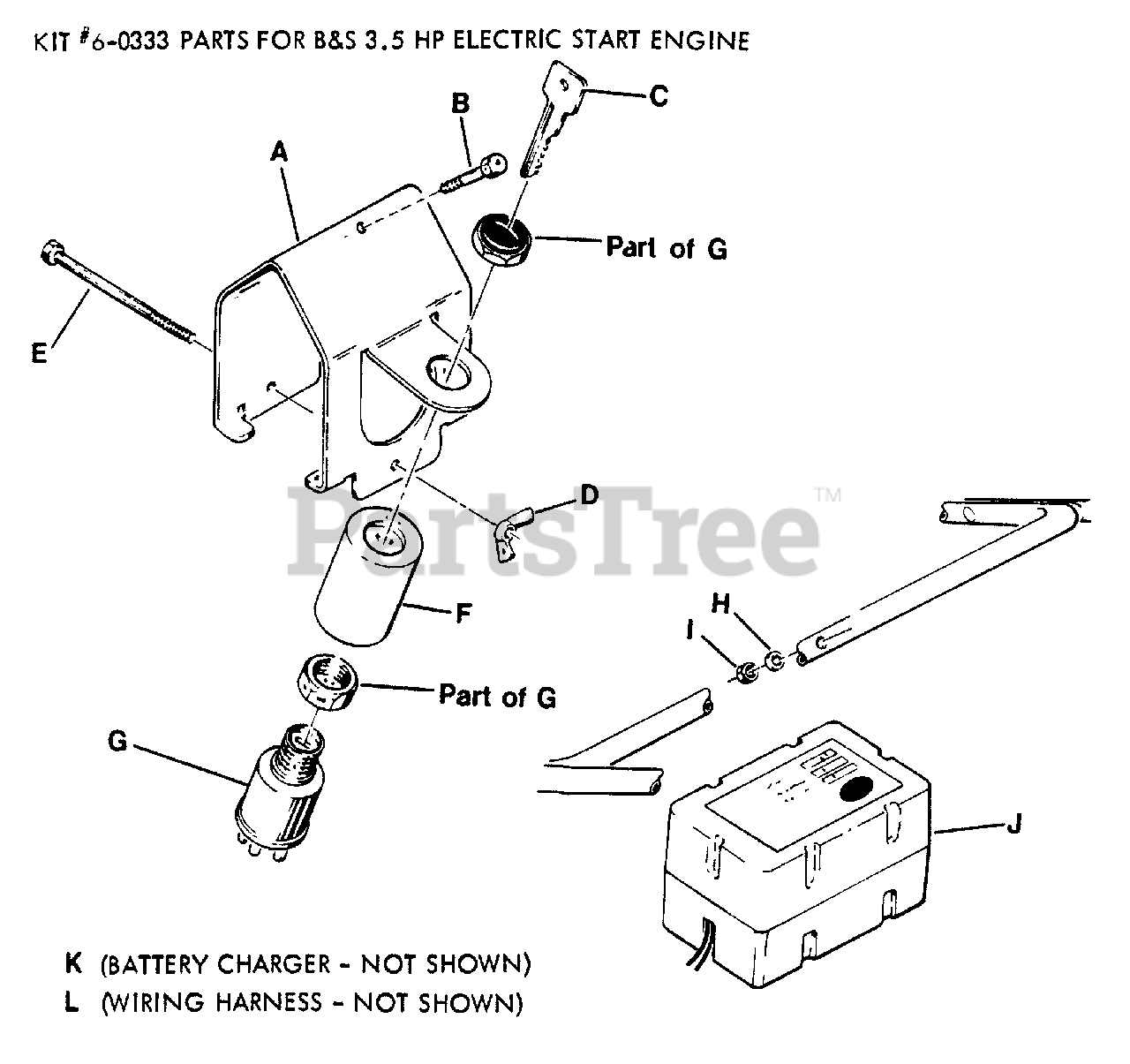

V 212S (86955) - Snapper 21" Walk-Behind Mower, 3.5hp Electric Start Parts Parts Diagram

21" Walk-Behind Mower, 3.5hp

Electric Start Parts Parts Diagram

  • Title

A

Snapper 7050862

ASSEMBLY, Bracket

Note: (Includes decal)

$

$

Currently unavailable

B

Snapper 7090529

SCREW, 1/4-28 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090529YP)

$4.49

$

Usually ships in 2-12 days

0

C

Snapper 7011167

KEY
(Superseded to 7011167YP)

Note: (Part of switch assembly- item G)

$5.99

$

In Stock, only 1 left!

0

D

Snapper 7090098

NUT, 1/4-28 Wing

$

$

Currently unavailable

E

Snapper 7090487

SCREW, 1/4-28 x 3-1/4" Hex Head Cap, Grade 5

$

$

Currently unavailable

F

Snapper 7012551

COVER, Switch
(Superseded to 7012551YP)

$5.49

$

Usually ships in 2-12 days

0

G

Snapper 7011139

SWITCH, Ignition
(Superseded to 7011139YP)

$42.99

$

Usually ships in 2-12 days

0

H

Snapper 90093

WASHER, 1/4" Internal Tooth Lock

$

$

Currently unavailable

I

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

J

Snapper 7018215

BATTERY, 12 Volt, 2.5 Amp

$

$

Currently unavailable

?K

Snapper 11789

CHARGER, Battery (60 Hertz)

$

$

Currently unavailable

?L

Snapper 7018095

HARNESS, Wiring
(Superseded to 7018095YP)

Note: (Complete with terminals)

$43.99

$

Usually ships in 2-12 days

0

60333

Snapper 60333

ELECTRIC START ENGINE

Note: PARTS FOR B&S 3.5 HP

$

$

Currently unavailable
