V 212P4 (87161) - Snapper 21" Walk-Behind Mower, 4hp Handles, Controls - Self Propelled (Except CV) Parts Diagram

21" Walk-Behind Mower, 4hp

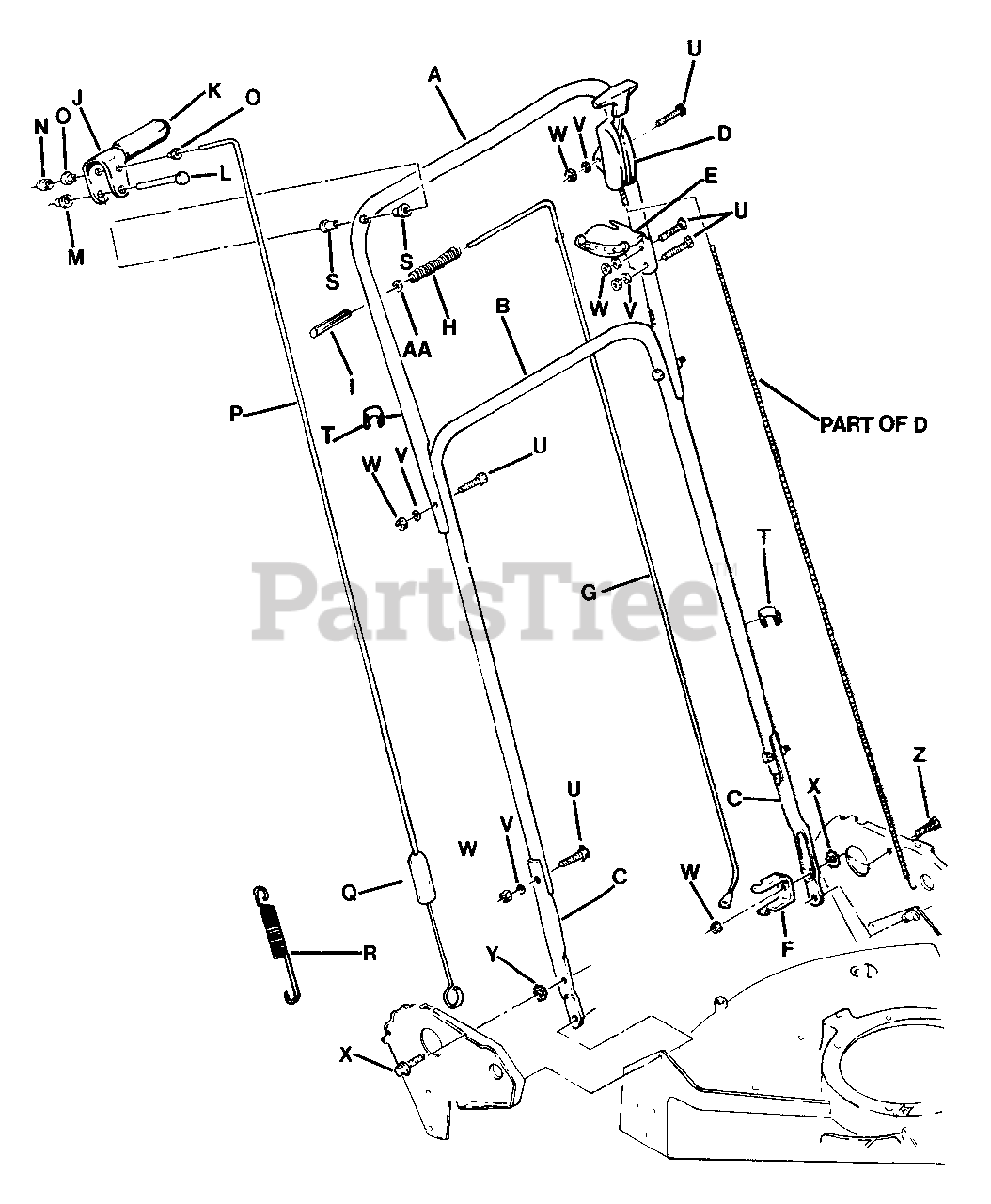

Handles, Controls - Self Propelled (Except CV) Parts Diagram

  • Title
A

Snapper 7033444

HANDLE, Upper

Note: Was 39600

$

$

Not available

B

Snapper 7036037

HANDLE, Pivoting

Note: Was 37331

$

$

Not available

C

Snapper 7038209

HANDLE, Lower

Note: Was 37333

$

$

Not available

D

Snapper 7018186

CONTROL, Throttle (Briggs)
(Superseded to 7018186YP)

$69.99

$

Usually ships in 2-12 days

0

Snapper 7018187

CONTROL, Throttle (Tecumseh)
(Superseded to 7018187YP)

$23.99

$

Usually ships in 2-12 days

0

E

Snapper 37727

SECTOR, Speed Control

$

$

Currently unavailable

F

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Was 31755

$26.99

$

In Stock, only 1 left!

0

G

Snapper 7023795

LEVER, Speed Control

Note: Was 12110

$

$

Not available

H

Snapper 7012093

SPRING, Speed Control Lever
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

I

Snapper 7023801

GRIP, Speed Control Lever
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

J

Snapper 7032826

HANDLE, Clutch
(Superseded to 7074473BMYP)

Note: Was 31881

$16.99

$

In Stock, Qty 20+

0

K

Snapper 7014307

GRIP, Clutch Handle
(Superseded to 7014307YP)

Note: Was 11982

$4.49

$

In Stock, Qty 20+

0

L

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

M

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7012134

NUT, 1/8" Push

$3.49

$

Usually ships in 2-12 days

0

O

Snapper 7012135

BUSHING, Pull Rod (Nylon)

$4.49

$

In Stock, only 1 left!

0

P

Snapper 7023134

ROD, Clutch Pull
(Superseded to 7023134YP)

Note: Was 12120

$18.99

$

In Stock, Qty 14

0

Q

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$

$

Not available

R

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

S

Snapper 7014343

BUSHING, Clutch Handle Pin
(Superseded to 7014343YP)

Note: Was 12070

$3.99

$

In Stock, Qty 20+

0

$

$

Currently unavailable

U

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

V

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

W

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

X

Snapper 7090240

SCREW, 5/16-24 x 1-1/4" Hex Head Cap, Grade 2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

Y

Snapper 7090189

WASHER, 5/16" Internal/External Tooth
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

Z

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

AA

Snapper 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

?BB

Snapper 7090111

SCREW, 1/4-28 x 1-3/4 Hex Head Cap, Grade 5

$2.99

$

In Stock, only 3 left!

0
