UW-645 - Toro Utility Wagon (1967) PARTS LIST-UTILITY WAGON MODEL 7-2211 (FORMERLY UW-645) Parts Diagram

Utility Wagon

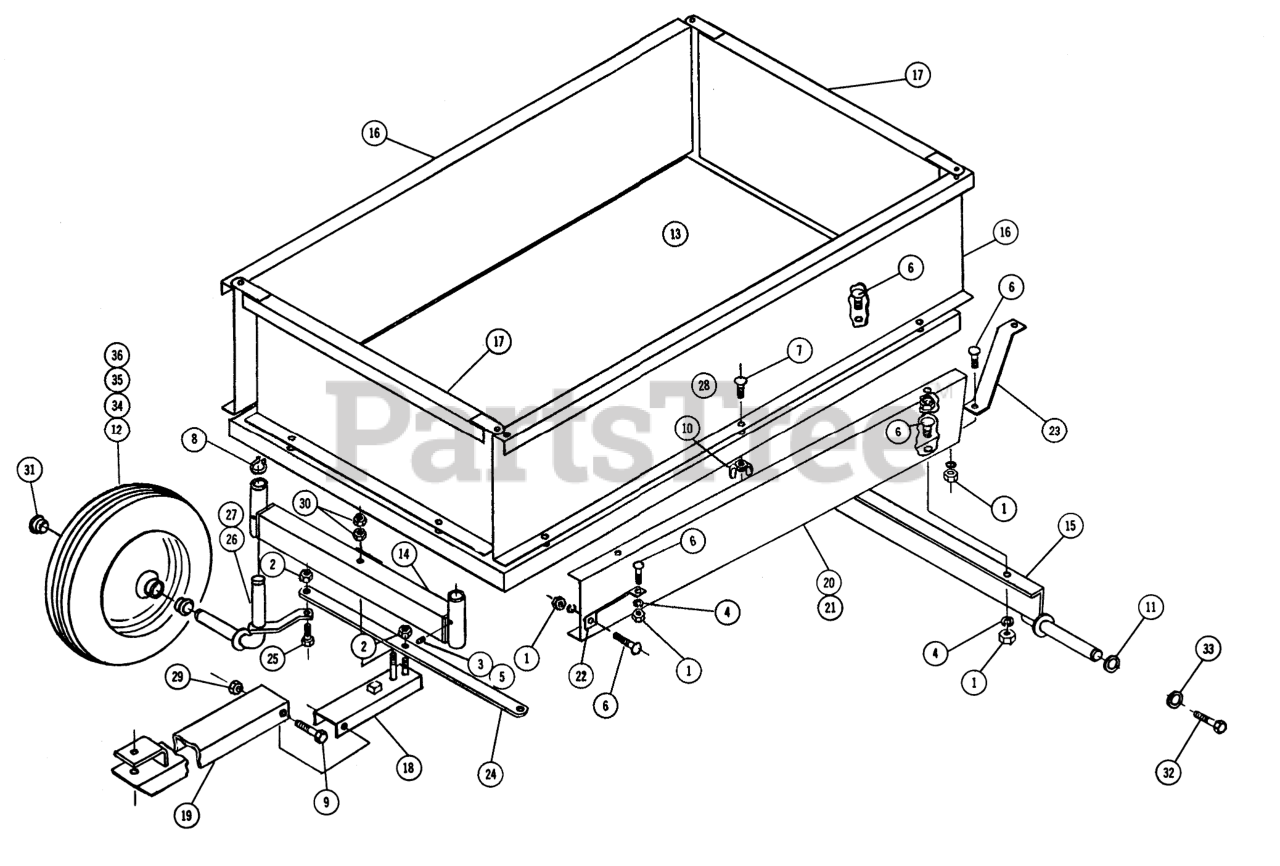

PARTS LIST-UTILITY WAGON MODEL 7-2211 (FORMERLY UW-645) Parts Diagram

  • Title

1

Toro 915113-4

Nut

$

$

Currently unavailable

2

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

3

Toro 1030

Zerk

$

$

Not available

4

Toro 920083-4

Lockwasher

$

$

Currently unavailable

5

Toro 920218-4

Washer

$

$

Currently unavailable

6

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

7

Toro 900066-4

Bolt-Carriage

$

$

Currently unavailable

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

9

Toro 908065-4

Bolt-Hex 1/2-13 x 3

$

$

Currently unavailable

10

Toro 915586-4

3/8 NC Wing Nut

$

$

Currently unavailable

11

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

12

Toro 1758

Tire & Wheel

$

$

Not available

13

Toro 3007

Bed

$

$

Currently unavailable

14

Toro 3050

Front Axle Assembly

$

$

Currently unavailable

15

Toro 3014

Rear Axle Assembly

$

$

Not available

16

Toro 3018

Side Panel

$

$

Not available

17

Toro 3019

End Panel
(Superseded to 703248)

$

$

Not available

18

Toro 3042

Swivel Hitch Assembly

$

$

Not available

19

Toro 3044

Draw Bar Assembly

$

$

Currently unavailable

20

Toro 3032

Clip

$

$

Currently unavailable

21

Toro 3033

Bed Support L.H.

$

$

Currently unavailable

22

Toro 3034

Front Brace

$

$

Not available

23

Toro 3035

Rear Brace

$

$

Currently unavailable

24

Toro 3047

Tie Rod

$

$

Not available

25

Toro 3608

Clevis Pin

$

$

Currently unavailable

26

Toro 5270

Spindle Assembly R.H.

$

$

Not available

27

Toro 5271

Spindle Assembly L.H.

$

$

Not available

28

Toro 8138

Decal
(Superseded to 83-3410)

$

$

Not available

29

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

30

Toro 915240-4

Hex Jam Nut 5/8-11

$

$

Currently unavailable

31

Toro 1521

BEARING

$

$

Not available

32

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

34

Toro 1760

Tire

$

$

Not available

35

Toro 1761

Tube

$

$

Not available

36

Toro 1759

Wheel

$

$

Not available

Toro 3039

Hitch Plate

Note: Not shown or included. Use with 8-5521 Slot Hitch only.

$

$

Not available
