UVGT 1621BV (85903) - Snapper Green Trail Cruiser Utility Vehicle, 16hp Briggs & Stratton HOOD GROUP Parts Diagram

Green Trail Cruiser Utility Vehicle, 16hp Briggs & Stratton

HOOD GROUP Parts Diagram

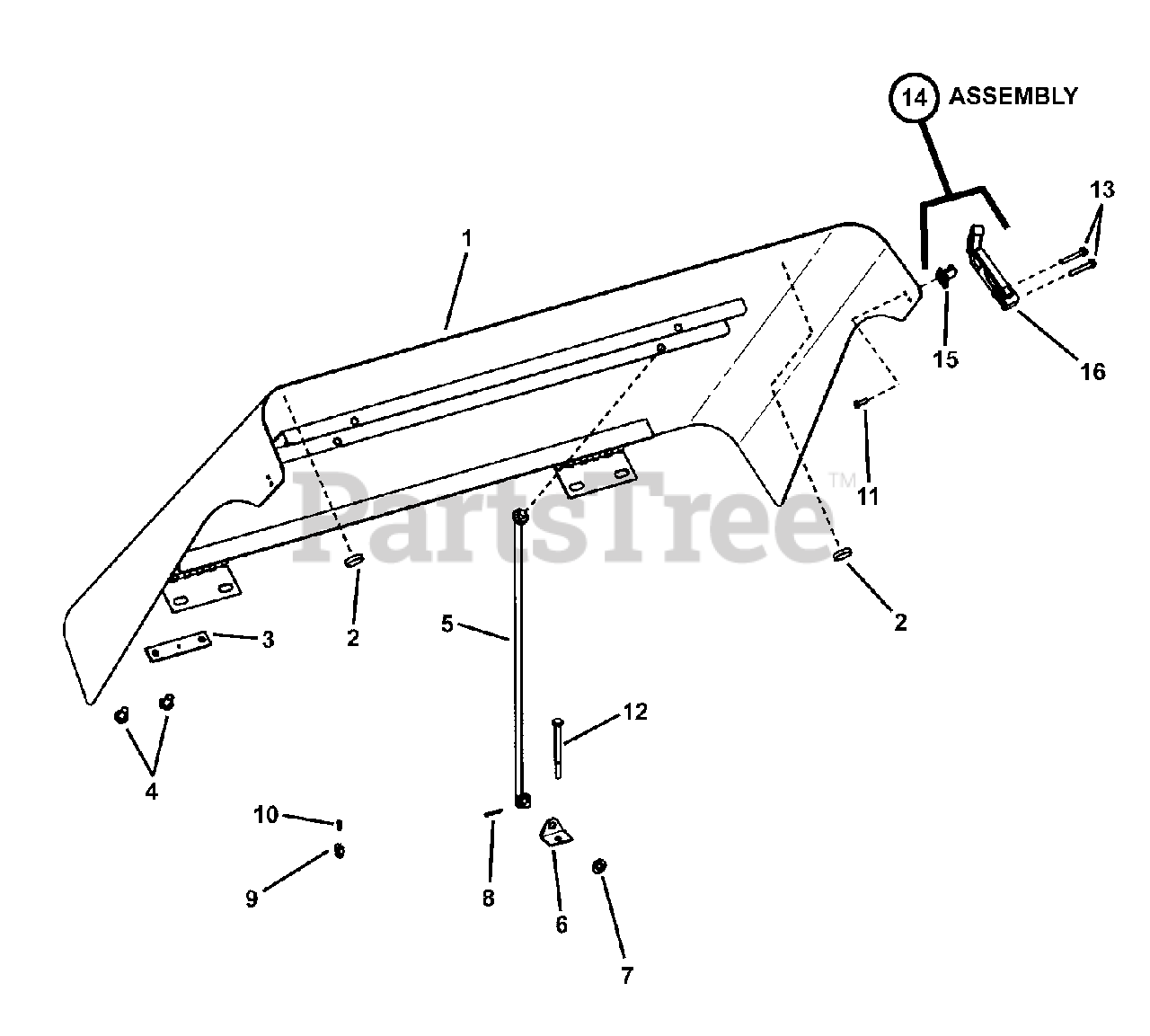

  • Title

1

Snapper 7043253

WELDMENT, Hood (Red)
(Superseded to 7043253YP)

$376.99

$

Usually ships in 2-12 days

0

1

Snapper 7043254

WELDMENT, Hood (Green)
(Superseded to 7043254YP)

$490.99

$

Usually ships in 2-12 days

0

2

Snapper 7035270

HOOD PAD
(Superseded to 7035270YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7043211

PLATE WASHER
(Superseded to 7043211YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7091833

SCREW 5/16-18 x 5/8" Cross Recessed Pan Head
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7043208

HOOD PROP
(Superseded to 7043208YP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 7043209

BRACKET, Hood Prop
(Superseded to 7043209YP)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7091597

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7043210

HOLDER, Hood Prop
(Superseded to 7043210YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7092074

SCREW, #6-20 x .34 Pan Head Self-Tap
(Superseded to 7092074YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7091942

SCREW, #10-24 x 1/2" Pan Head Machine
(Superseded to 7091942YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7091317

SCREW, 1/4-20 x 3" Hex Head Cap, GR 5
(Superseded to 704208)

Note: Ref. FRONT CLIP GROUP (Dash) page, item 5

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7091216

SCREW, #10 x 1-1/4" Hex Washer Self-Tap, HI-LO
(Superseded to 7091216YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7029051

ASSY, Hood Latch (incl. Ref, Nos. 15 & 16)

$

$

Not available

15

Snapper 7028017

KEEPER
(Superseded to 7028017YP)

$9.99

$

Usually ships in 2-12 days

0

16

Snapper 7028035

ASSEMBLY, Hood Handle
(Superseded to 7028035YP)

Note: consists of 7028035 (Handle) & 7043029 (Bracket)

$30.99

$

Usually ships in 2-12 days

0
