UVGT 1621BV (85903) - Snapper Green Trail Cruiser Utility Vehicle, 16hp Briggs & Stratton BED ASSEMBLY (Tail Gate) Parts Diagram

Green Trail Cruiser Utility Vehicle, 16hp Briggs & Stratton

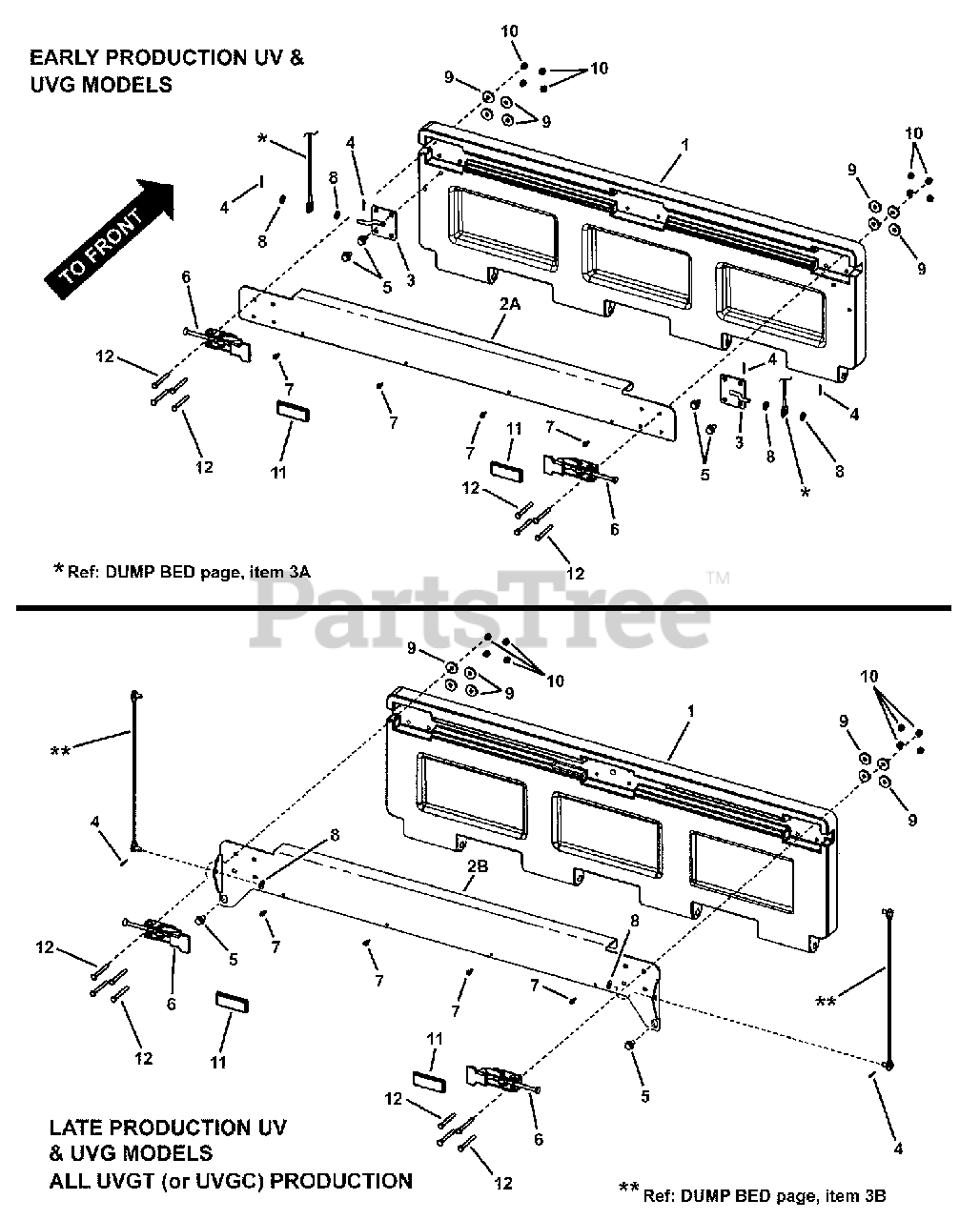

BED ASSEMBLY (Tail Gate) Parts Diagram

  • Title

1

Snapper 7075882

TAILGATE, Plastic
(Superseded to 7075882YP)

$216.99

$

Usually ships in 2-12 days

0

2A

Snapper 7043204

* COVER, Tailgate
(Superseded to 7043204YP)

$99.99

$

Usually ships in 2-12 days

0

2B

Snapper 7043212

COVER, Tailgate
(Superseded to 7043212YP)

$107.99

$

Usually ships in 2-12 days

0

3

Snapper 7027803

* BRACKET, Gate (weldment)
(Superseded to 7027803YP)

$31.99

$

Usually ships in 2-12 days

0

4

Snapper 7090037

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

6

Snapper 7034792

LATCH, Tailgate
(Superseded to 7034792YP)

$71.99

$

Usually ships in 2-12 days

0

7

Snapper 7092106

SCREW, #10 x 5/8" HiLo Nail Point
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091076

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7091627

WASHER, .281 x 1.00 x .125 Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

10

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7023682

REFLECTOR, Red
(Superseded to 1701600SM)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper 7091256

SCREW, 1/4-20 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0
