UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton R.O.P.S. Group (179rops) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

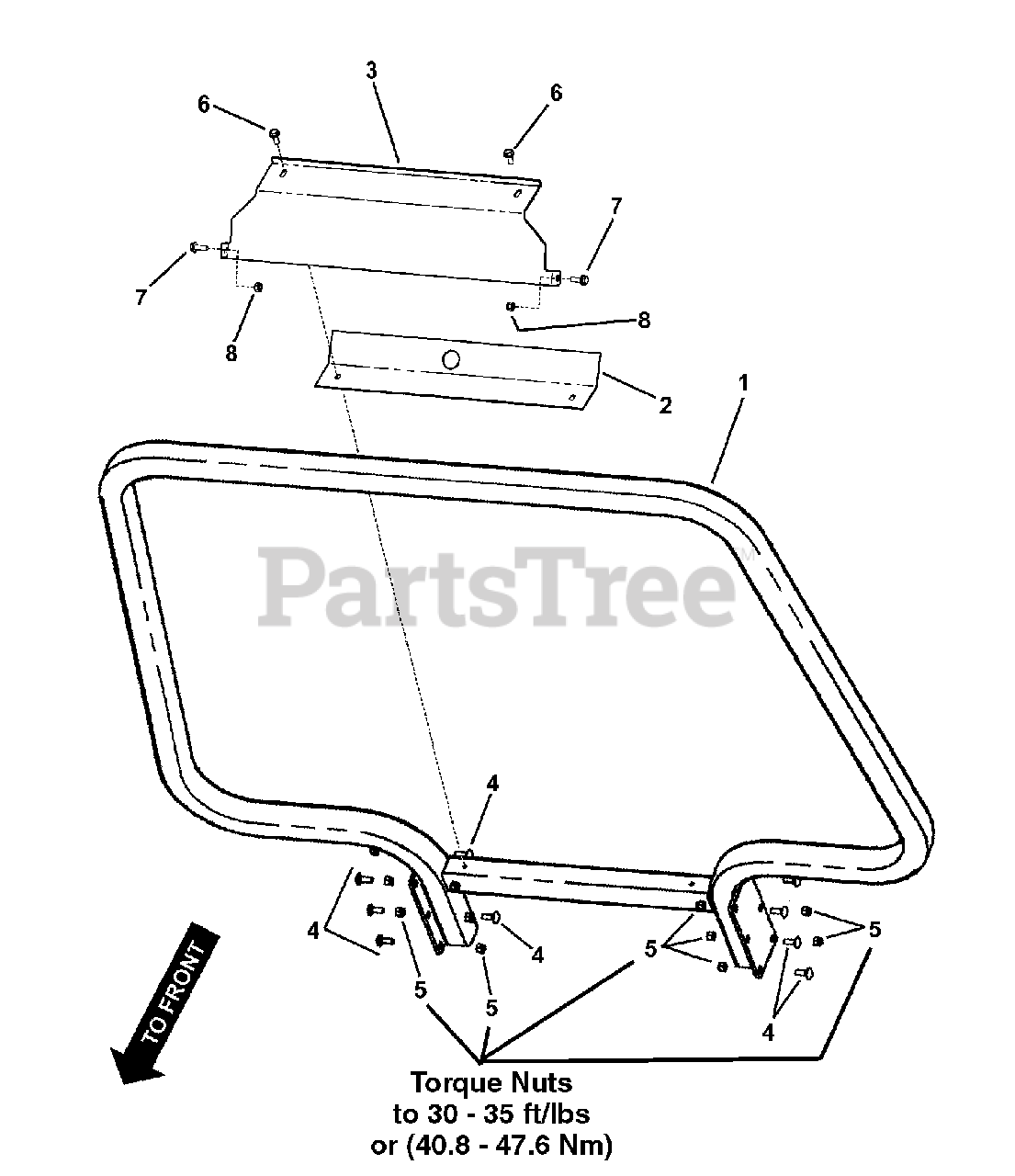

R.O.P.S. Group (179rops) Parts Diagram

  • Title
1

Simplicity 7058752

ROPS ASSEMBLY
(Superseded to 7058752YP)

$1424.99

$

Usually ships in 2-12 days

0

2

Simplicity 7044936

HEAT SHIELD, Cab (UV-2)
(Superseded to 7044936YP)

$34.99

$

Usually ships in 2-12 days

0

3

Simplicity 7073024

SHIELD, Heat/Debris, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7073024YP)

$82.99

$

Usually ships in 2-12 days

0

3

Simplicity 7063349

SHIELD, Heat/Debris, Used on Trail Cruiser Model 85903

$

$

Not available

4

Simplicity 7091640

CARRIAGE BOLT, 3/8-16 x 1 GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1664847SM

SCREW, Hex Washer Self-Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 7091905SM

BOLT, Hex Flange Lock, 5/16-18 x 7/8

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025057SM

NUT, Hex Nyloc, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
