UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Front Suspension Group (179fsg) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

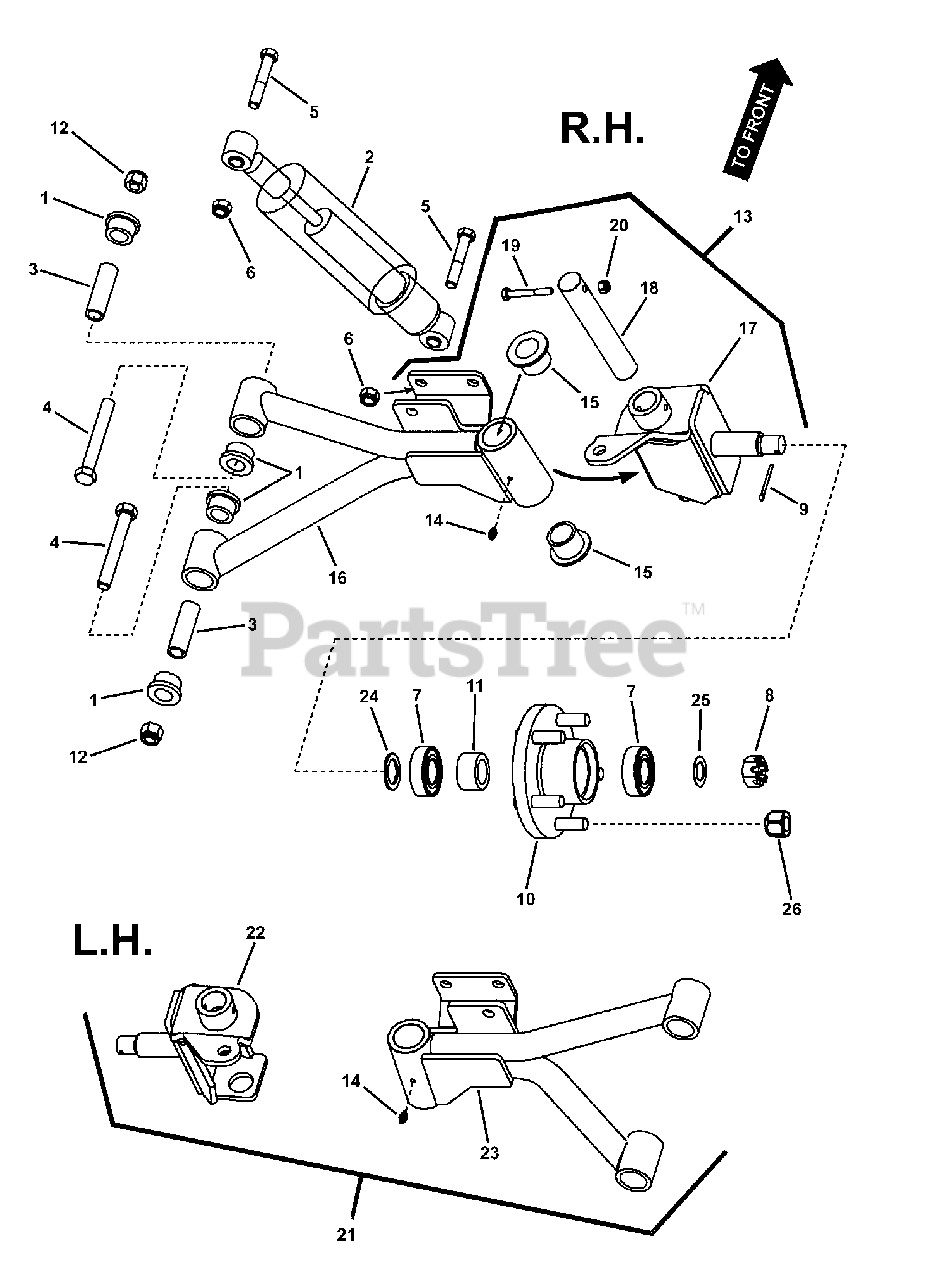

Front Suspension Group (179fsg) Parts Diagram

  • Title

1

Simplicity 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

2

Simplicity 7072614

ASSEMBLY, Shock/Spring

$

$

Not available

3

Simplicity 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0

4

Simplicity 7029355

BOLT, Hex Head, 1/2-13 x 3-3/4 GR 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 7091703SM

CAPSCREW, Hex Head, (Special) 7/16-20 x 2-1/2 GR 5

$7.99

$

Usually ships in 2-12 days

0

6

Simplicity 7090970

NUT, Hex Top Lock, 7/16-20
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 7019572

BALL BEARING, 6205-2RS
(Superseded to 7019572YP)

$30.99

$

Usually ships in 2-12 days

0

8

Simplicity 7092038

NUT, Slotted Hex, 3/4-16 GR 5
(Superseded to 7092038YP)

$6.49

$

Usually ships in 2-12 days

0

9

Simplicity 7090297

COTTER PIN, 1/8 x 1-1/2
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 7072615

WHEEL HUB, Front

$

$

Not available

11

Simplicity 7072618

SPACER, Front Wheel
(Superseded to 7072618YP)

$17.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091922

NUT, Hex Nyloc, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 7058539SM

A-ARM & SPINDLE ASSEMBLY, RH (Includes Ref. Nos. 14 thru 20)

$

$

Not available

14

Simplicity 7013864SM

FITTING, Lube 3/16 Serrated

$3.49

$

In Stock, Qty 12

0

15

Simplicity 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

16

Simplicity 7053445

A-ARM ASSEMBLY, RH

$

$

Not available

17

Simplicity 7058485

SPINDLE ASSEMBLY, RH
(Superseded to 7058485YP)

$179.99

$

Usually ships in 2-12 days

0

18

Simplicity 7072679

ROD, Spindle Pivot
(Superseded to 7072679YP)

$45.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921963SM

CAPSCREW, Hex Head, G1/4-20 x 2 R 5

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 7091603SM

NUT, Hex Nyloc, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 7058596SM

A-ARM & SPINDLE ASSEMBLY, LH (Includes Ref. Nos. 14, 15, 18, 19, 20, 22 & 23)

$

$

Not available

22

Simplicity 7058419

SPINDLE ASSEMBLY, LH

$

$

Not available

23

Simplicity 7053444

A-ARM ASSEMBLY, LH
(Superseded to 7053444YP)

$164.99

$

Usually ships in 2-12 days

0

24

Simplicity 7016561

BUSHING, 14 Gage Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

25

Simplicity 7031965

THRUST WASHER, 3/4 I.D.
(Superseded to 7031965YP)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 7027192SM

LUG NUT, 1/2-20 Hex

$2.49

$

Usually ships in 2-12 days

0
