UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Frame Group - LH Rear (179rfgl) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

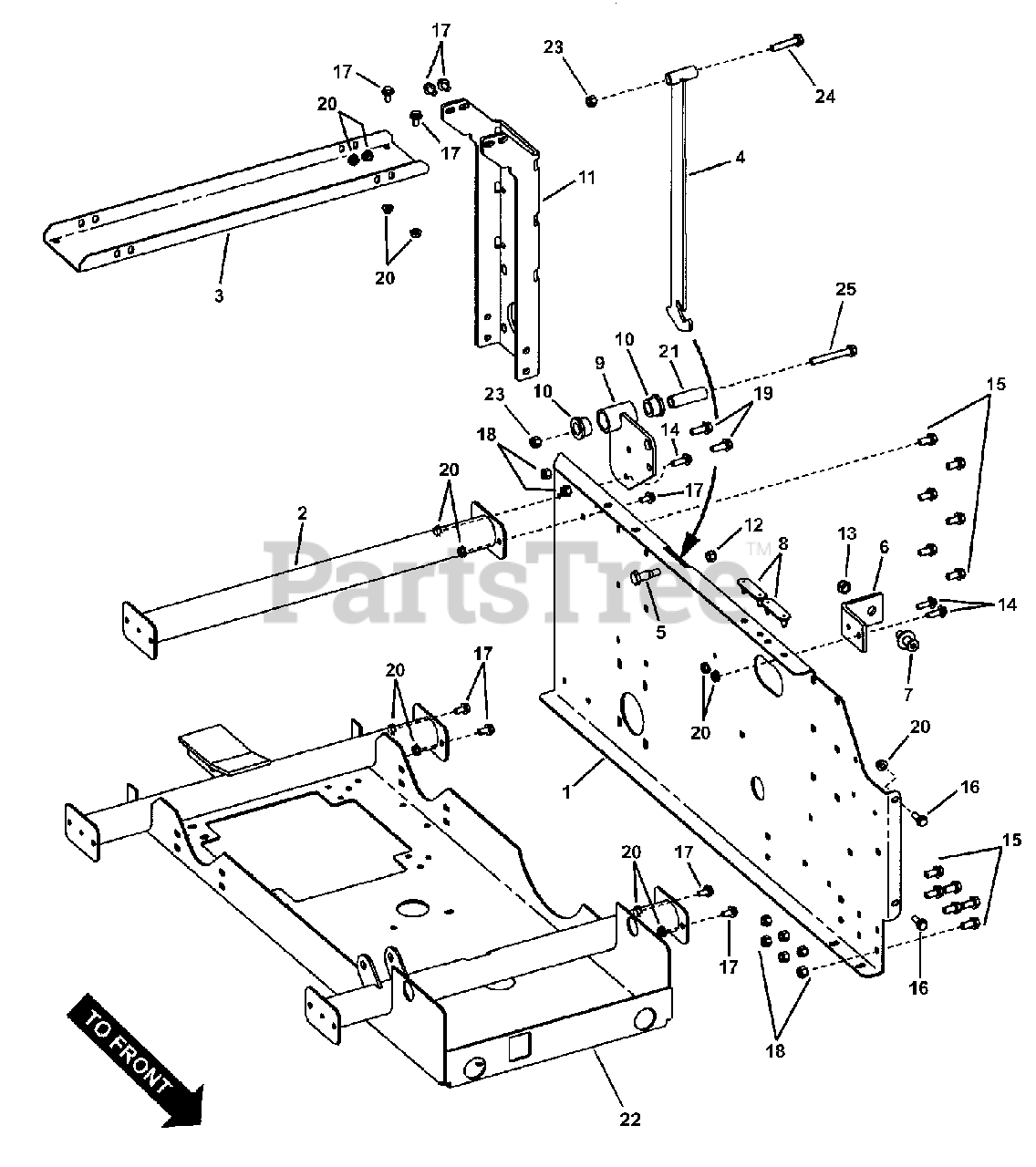

Frame Group - LH Rear (179rfgl) Parts Diagram

  • Title

1

Simplicity 7072943

FRAME, Rear, LH, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7072943YP)

$170.99

$

Usually ships in 2-12 days

0

1

Simplicity 7069499

FRAME, Rear, LH, Used on Trail Cruiser Model 85903
(Superseded to 7069499YP)

$170.99

$

Usually ships in 2-12 days

0

2

Simplicity 7058635

BRACE ASSEMBLY, Tube, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

2

Simplicity 7063350

BRACE ASSEMBLY, Tube, Used on Trail Cruiser Model 85903

$

$

Not available

3

Simplicity 7073062

CHANNEL, Frame Stiffener, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

3

Simplicity 7074318

CHANNEL, Frame Stiffener, Used on Trail Cruiser Model 85903
(Superseded to 7074318YP)

$55.99

$

Usually ships in 2-12 days

0

4

Simplicity 7058738

PROP ASSEMBLY, Bed
(Superseded to 7058738YP)

$68.99

$

Usually ships in 2-12 days

0

5

Simplicity 7015446

BOLT, Hex Head Shoulder, 3/8-24 x .760 GR 5
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 7028354

BRACKET, Bed Latch
(Superseded to 7028354YP)

$24.99

$

Usually ships in 2-12 days

0

7

Simplicity 7073190

PIN, Bed Latch Striker (7/16-14 thread)
(Superseded to 7073190YP)

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 7072962

BUMPER, Rubber

$

$

Not available

9

Simplicity 7058686

PIVOT ASSEMBLY, Dump Bed, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7058686YP)

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 7063351

PIVOT ASSEMBLY, Dump Bed, Used on Trail Cruiser Model 85903
(Superseded to 7063351YP)

$67.99

$

Usually ships in 2-12 days

0

10

Simplicity 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 7072945

STIFFENER, CVT Frame, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

11

Simplicity 7035762

STIFFENER, CVT Frame, Used on Trail Cruiser Model 85903
(Superseded to 7035762YP)

$136.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091518SM

NUT, Hex Nyloc, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

13

Simplicity 7091917

NUT, Hex Nyloc, 7/16-14
(Superseded to 7091917YP)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 7091681

BOLT, Hex Flange Lock, 5/16-18 x 1
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 7090815

SCREW, Hex Washer Self-Tap, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

16

Simplicity 7091905SM

BOLT, Hex Flange Lock, 5/16-18 x 7/8

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8 GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

18

Simplicity 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 7027198

BOLT, Hex Flange Lock, 3/8-16 x 1 GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18 GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0

22

Simplicity 7046206

DRIVE BASE ASSEMBLY
(Superseded to 7046206YP)

$490.99

$

Usually ships in 2-12 days

0

23

Simplicity 7091922

NUT, Hex Nyloc, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

24

Simplicity 7091821

CAPSCREW, Hex Head, 1/2-13 x 3
(Superseded to 7091821YP)

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 7029355

BOLT, Hex Head, 1/2-13 x 3-3/4 GR 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0
