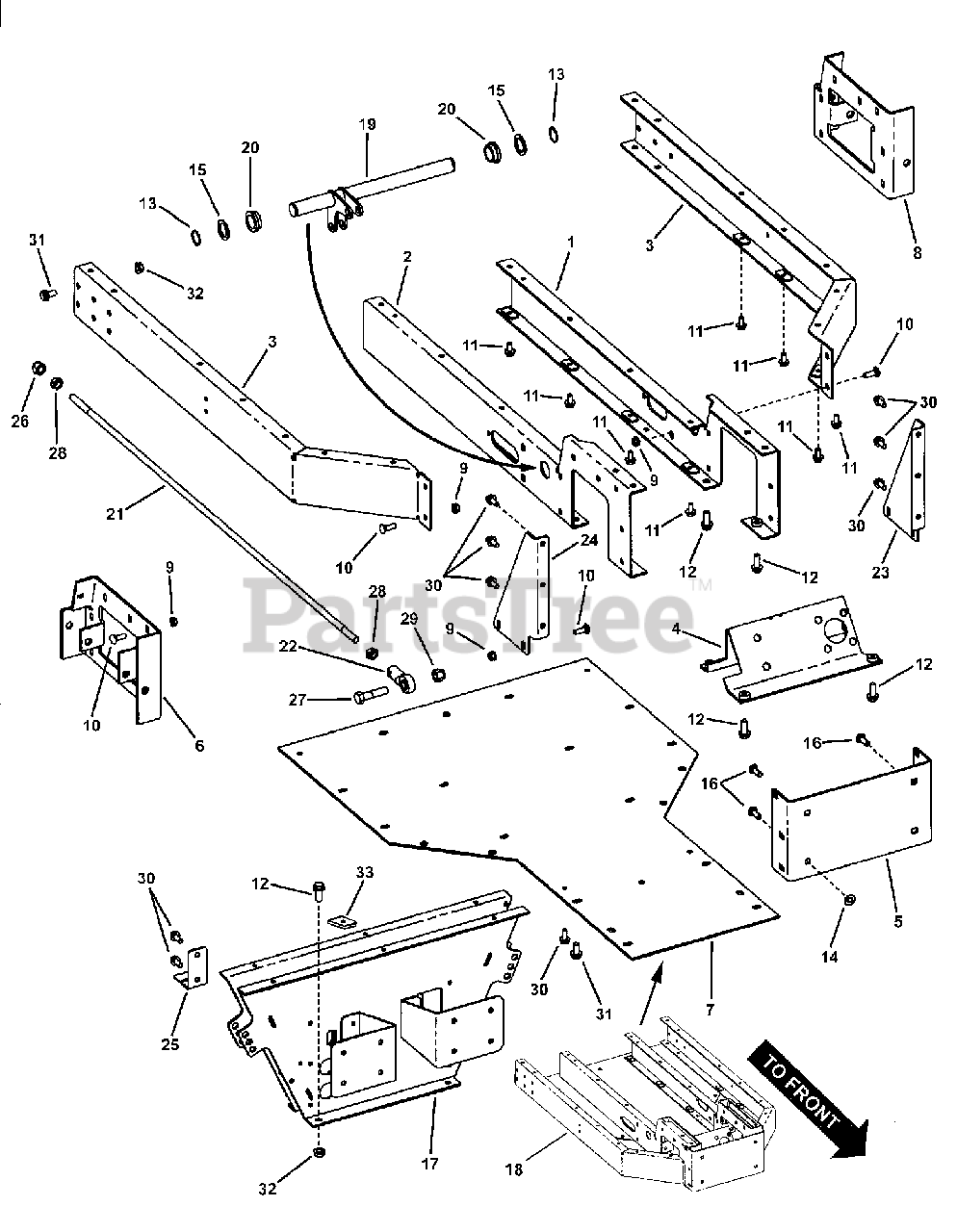

UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Frame Group - Front (179ffg) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

Frame Group - Front (179ffg) Parts Diagram

  • Title

1

Simplicity 7058505

FRAME RAIL ASSEMBLY, Inner LH
(Superseded to 7058505YP)

$205.99

$

Usually ships in 2-12 days

0

2

Simplicity 7058551

FRAME RAIL ASSEMBLY, Inner RH

$

$

Not available

3

Simplicity 7058694

FRAME ASSEMBLY, Outer CVT
(Superseded to 7058694YP)

$159.99

$

Usually ships in 2-12 days

0

4

Simplicity 7058739

BRACKET ASSEMBLY, Steering
(Superseded to 7058739YP)

$92.99

$

Usually ships in 2-12 days

0

5

Simplicity 7072464

END, Frame
(Superseded to 7072464YP)

$49.99

$

Usually ships in 2-12 days

0

6

Simplicity 7072473

SUSPENSION PIVOT, RH
(Superseded to 7072473YP)

$82.99

$

Usually ships in 2-12 days

0

7

Simplicity 7072516

STIFFENER, Frame

$

$

Not available

8

Simplicity 7072619

SUSPENSION PIVOT, LH
(Superseded to 7072619YP)

$82.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18 GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 7091714

CARRIAGE BOLT, 5/16-18 x 1 GR5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8 GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

12

Simplicity 7027198

BOLT, Hex Flange Lock, 3/8-16 x 1 GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

13

Simplicity 2827320SM

RING, 1.00 Dia. External Retaining

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 7016561

BUSHING, 14 Ga Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

16

Simplicity 7027181

CARRIAGE BOLT, 3/8-16 x 1-1/4 GR 5

$

$

Not available

17

Simplicity 7044680

GRILL SUPPORT
(Superseded to 7044680YP)

$250.99

$

Usually ships in 2-12 days

0

18

Simplicity 7058667

FRONT FRAME ASSEMBLY, Assembled (Includes Ref. Nos. 1 thru 12)

$

$

Not available

19

Simplicity 7058648

BRAKE ASSEMBLY, Lower CVT

$

$

Not available

20

Simplicity 7072645

BEARING, 1 I.D.
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 7072989

ROD, Lower CVT Brake, 1/2-20 Thread, Both Ends
(Superseded to 7072989YP)

$47.99

$

Usually ships in 2-12 days

0

22

Simplicity 7073012

ROD END, Female 1/2-20
(Superseded to 7073012YP)

$66.99

$

Usually ships in 2-12 days

0

23

Simplicity 7073091

SUSPENSION GUSSET, LH
(Superseded to 7073091YP)

$25.99

$

Usually ships in 2-12 days

0

24

Simplicity 7073092

SUSPENSION GUSSET, RH

$

$

Not available

25

Simplicity 7073162

THROTTLE ANCHOR, Front, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

25

Simplicity 7074326

THROTTLE ANCHOR, Front, Used on Trail Cruiser Model 85903
(Superseded to 7074326YP)

$17.99

$

Usually ships in 2-12 days

0

26

Simplicity 7079295

NUT, Hex Nyloc, 1/2-20
(Superseded to 7079295YP)

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 7090543

CAPSCREW, Hex Head, 1/2-13 x 2-3/4 GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 7090559

NUT, Hex Jam, 1/2-20 GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 7091922

NUT, Hex Nyloc, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 1664847SM

SCREW, Hex Washer Self-Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 7091588SM

BOLT, Hex Flange Lock, 3/8-16 x 3/4 GR 5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

32

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 7041033

NUT, Tinnerman, 1/4
(Superseded to 7041033YP)

$5.99

$

In Stock, Qty 6

0
