UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Electrical Group (179elec) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

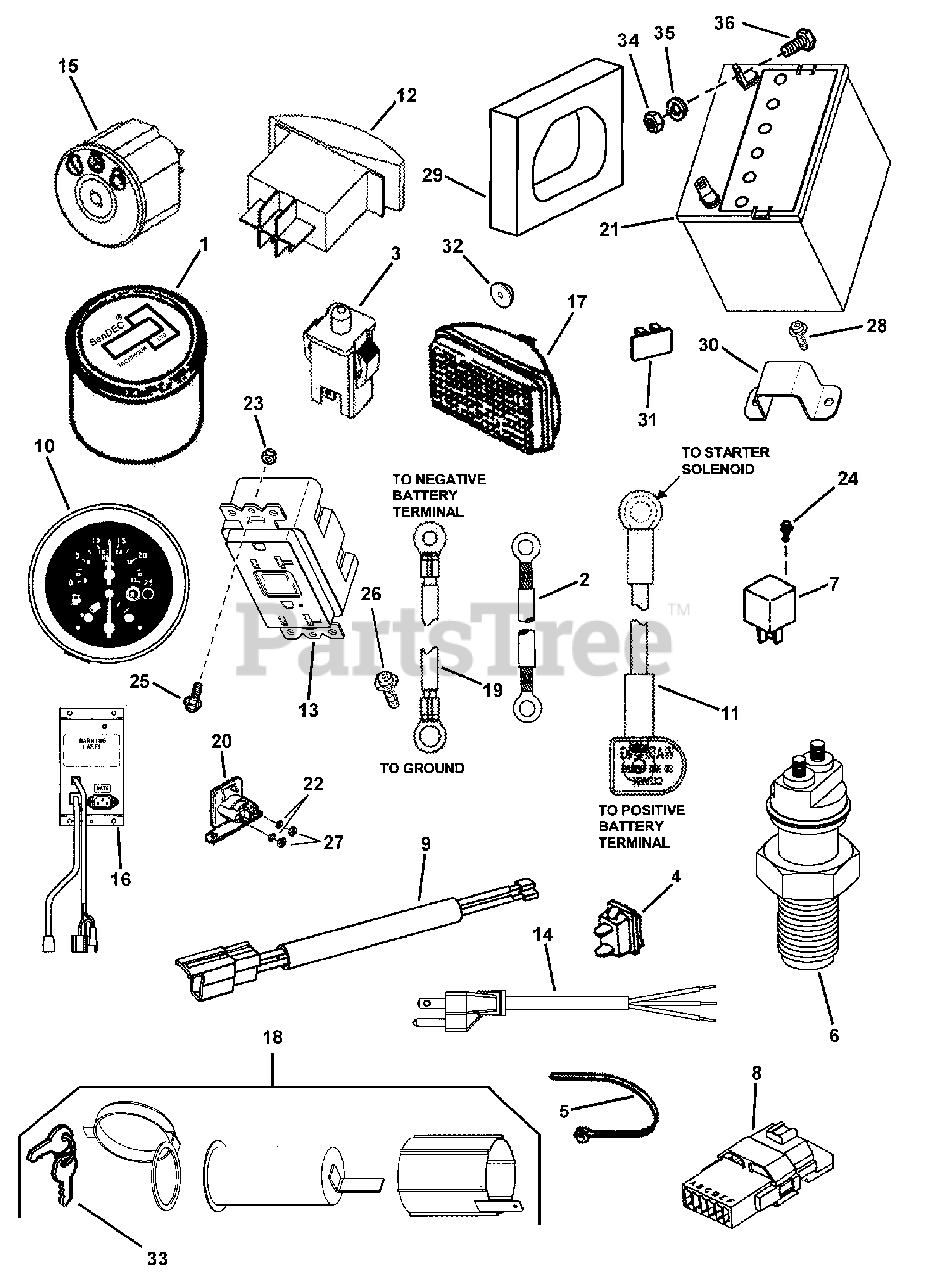

Electrical Group (179elec) Parts Diagram

  • Title

1

Simplicity 7021642SM

HOUR METER, Inductive

$210.99

$

Usually ships in 2-12 days

0

1

Simplicity 7044636

HOUR/Tachometer
(Superseded to 7021642SM)

$210.99

$

Usually ships in 2-12 days

0

2

Simplicity 7019326

WIRE, Positive 17
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

3

Simplicity 7022231

SWITCH, DP NO/NO, Snap-In
(Superseded to 7022231YP)

$29.99

$

Usually ships in 2-12 days

0

4

Simplicity 7023187

SWITCH, Rocker SPST
(Superseded to 7023187YP)

$14.99

$

In Stock, only 1 left!

0

5

Simplicity 7024649

WIRE TIE, 11 Inch Std Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 7026570

SENSOR, Speed
(Superseded to 7026570YP)

$149.99

$

Usually ships in 2-12 days

0

7

Simplicity 7028570

RELAY, OPC E.C.
(Superseded to 7028570YP)

$29.99

$

In Stock, only 2 left!

0

8

Simplicity 7028583

INTERLOCK, UV2, B&S
(Superseded to 7028583YP)

$64.99

$

Usually ships in 2-12 days

0

9

Simplicity 7029163

WIRING HARNESS, UV2 Generator
(Superseded to 7029163YP)

Note: , Used on Model 85632

$7.99

$

Usually ships in 2-12 days

0

10

Simplicity 7033898

GAGE PACKAGE, Speed/Gas
(Superseded to 7033898YP)

$225.99

$

Usually ships in 2-12 days

0

11

Simplicity 7035607

CABLE, Positive Battery
(Superseded to 7035607YP)

$34.99

$

Usually ships in 2-12 days

0

12

Simplicity 7035659

SWITCH, Lights
(Superseded to 7035659YP)

$18.99

$

Usually ships in 2-12 days

0

13

Simplicity 7041595

OUTLET, Utility Vehicle

Note: , Used on Model 85632

$

$

Not available

14

Simplicity 7044672

ELECTRIC CORD with Plug
(Superseded to 7044672YP)

Note: , Used on Model 85632

$16.99

$

Usually ships in 2-12 days

0

15

Simplicity 7072684

SWITCH, Ignition
(Superseded to 7072684YP)

$31.99

$

In Stock, only 1 left!

0

16

INVERTER BOX, 120 VAC

Note: , Used on Model 85632

$

$

Not available

17

Simplicity 7072830

HEADLIGHT
(Superseded to 7072830YP)

$100.99

$

Usually ships in 2-12 days

0

18

Simplicity 7073090SM

OUTLET, 12 Volt DC Power

$23.99

$

Usually ships in 2-12 days

0

19

Simplicity 7073962

CABLE, Battery Ground
(Superseded to 7073962YP)

$9.49

$

Usually ships in 2-12 days

0

20

Simplicity 7075671

SOLENOID, RER, Super-Trombetta
(Superseded to 7075671YP)

$31.99

$

In Stock, only 1 left!

0

21

Simplicity 7035610

BATTERY, 11 Plate 375CCA, Wet

$

$

Not available

22

Simplicity 7090053SM

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 7090376

NUT, Hex Nyloc, #10-32
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 7091075SM

SCREW, Hex Washer Flange Self-Tap, #10-24 x 5/8

$4.49

$

In Stock, Qty 5

0

25

Simplicity 7091240

SCREW, Hex Washer Head Machine, #10-32 x 5/8
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

26

Simplicity 7091286

SCREW, Hex Washer Self-Tap, #10-24 x 1/2 SEMS
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 14

0

27

Simplicity 7091576SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 7092013

SCREW, Thread Rolling Tapping

Note: , Used on Model 85632

$

$

Not available

29

Simplicity 7092014

GASKET, Drop Cord/Inverter

Note: , Used on Model 85632

$

$

Not available

30

Simplicity 7092020

CLAMP, Drop Cord Tie Down

Note: , Used on Model 85632

$

$

Not available

31

Simplicity 1709188SM

PLUG, Switch

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 7091199

NUT, Nylon Non-Threaded, 1/4
(Superseded to 7091199YP)

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1717163SM

KEYS, Set of 2, G.C. Ignition

$8.99

$

In Stock, Qty 20+

0

34

Simplicity 7090372SM

NUT, Hex Center Lock, 1/4-20 GR 5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

35

Simplicity 7091294SM

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 7090072SM

CAPSCREW, Hex Head, 1/4-20 x 5/8 GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0
