UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton SEAT PEDESTAL GROUP- Frame Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

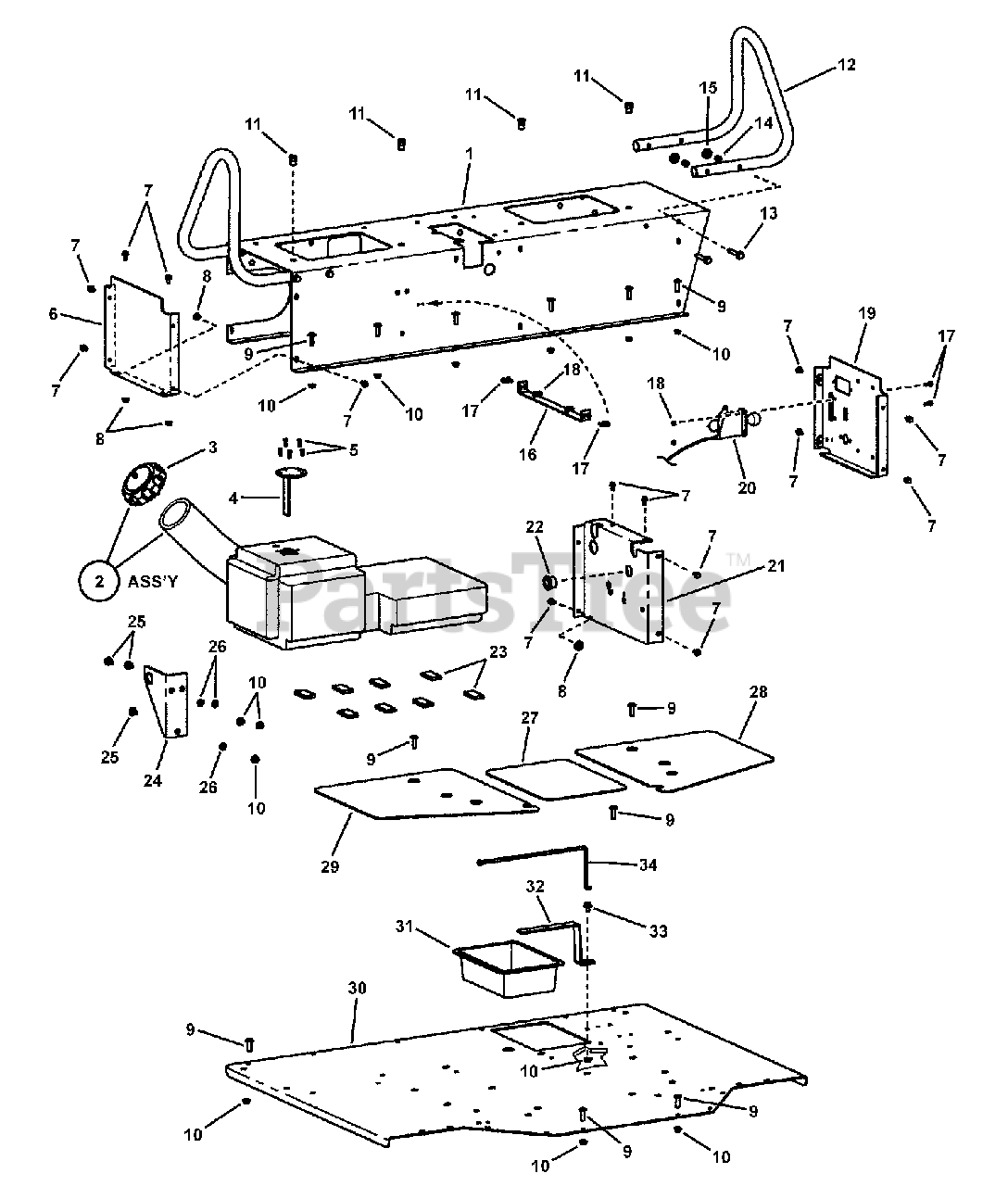

SEAT PEDESTAL GROUP- Frame Parts Diagram

  • Title

1

Snapper 7027247

PEDESTAL, Seat, Red
(Superseded to 7027247YP)

Note: 7075869 is the un-painted part

$245.99

$

Usually ships in 2-12 days

0

1

Snapper 7063290

PEDESTAL, Seat, Green

Note: used on UVGT (or UVGC)

$

$

Not available

2

Snapper 7046974

GAS TANK, UV

Note: includes Gas Cap, item 3

$

$

Not available

3

Snapper 7075135

GAS CAP
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

4

Snapper 7046975

SENDING UNIT, UV gas tank
(Superseded to 7046975SM)

$79.99

$

Usually ships in 2-12 days

0

5

Snapper 7091942

SCREW, #10-24 x 1/2" Pan Head Machine
(Superseded to 7091942YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7043263

ENDCAP, Red
(Superseded to 7043263YP)

$102.99

$

Usually ships in 2-12 days

0

6

Snapper 7043264

ENDCAP, Green
(Superseded to 7043264YP)

Note: or 7061329; used on UVGT (or UVGC)

$107.99

$

Usually ships in 2-12 days

0

7

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock, GR 5
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7092048

SCREW, 5/16-18 x 1" Cross Recessed Round Hd Mach. GR 5
(Superseded to 7092048YP)

Note: or 7091811 (5/16-18 x 5/8" Hex Flange Lock Bolt)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7092079

INSERT, 5/16-18 Hex Threaded
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7072586

HANDLE, Seat Pedestal
(Superseded to 7072586YP)

$76.99

$

In Stock, only 1 left!

0

13

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock, GR 5
(Superseded to 704062)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7091528

WASHER, .375 x .875 x .083 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7034101

GAS TANK STRAP
(Superseded to 7034101YP)

$19.99

$

Usually ships in 2-12 days

0

16

Snapper 7063158

GAS TANK STRAP (Trailmaster version)

Note: not used in production

$

$

Not available

17

Snapper 7091240

SCREW, #10-32 x 5/8 Hex Washer Head Machine
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7043251

WELDMENT, Power Generator End Cap, LH (Red)
(Superseded to 7043251YP)

Note: used on UVG1621BV UV2 w/Powerlink

$108.99

$

Usually ships in 2-12 days

0

19

Snapper 7074319

* WELDMENT, Power Generator End Cap, LH (Green)

Note: used on UVGT (or UVGC)

$

$

Not available

20

Snapper 7027498

THROTTLE, Remote, Powerlink
(Superseded to 7027498YP)

Note: used on UVG & UVGT (or UVGC); also shown on DRIVE BASE GROUP

$61.99

$

Usually ships in 2-12 days

0

21

Snapper 7024538

BRACKET, Seat Pedestal Support
(Superseded to 7024538YP)

Note: black textured finish

$58.99

$

Usually ships in 2-12 days

0

21

Snapper 7063288

BRACKET, Seat Pedestal Support (Green)

Note: no longer used; order 7024538

$

$

Not available

22

Snapper 7035496

BEARING, 3/4" I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

23

Snapper 7077345

PAD - Gas Tank
(Superseded to 7077345YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7022229

SPOT CAM PIVOT
(Superseded to 7022229YP)

$51.99

$

Usually ships in 2-12 days

0

25

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Square Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7026405

FOOTPAD, Center, UV-2
(Superseded to 7026405YP)

$31.99

$

Usually ships in 2-12 days

0

28

Snapper 7026290

FOOTPAD, LH, UV-2
(Superseded to 7026290YP)

$45.99

$

Usually ships in 2-12 days

0

29

Snapper 7026190

FOOTPAD, RH UV-2
(Superseded to 7026190YP)

$46.99

$

Usually ships in 2-12 days

0

30

Snapper 7027256

FLOORPAN, Red
(Superseded to 7027256YP)

Note: 7075874 is the un-painted part

$421.99

$

Usually ships in 2-12 days

0

30

Snapper 7063300

FLOORPAN, Green

Note: used on UVGT (or UVGC)

$

$

Not available

31

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

32

Snapper 7034358

BRACKET, Battery Hold Down

$

$

Not available

33

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

34

Snapper 7072629

RETAINER, Battery (Rod)
(Superseded to 7072629YP)

Note: not used in production

$14.99

$

Usually ships in 2-12 days

0
