UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton SEAT PEDESTAL GROUP- Controls Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

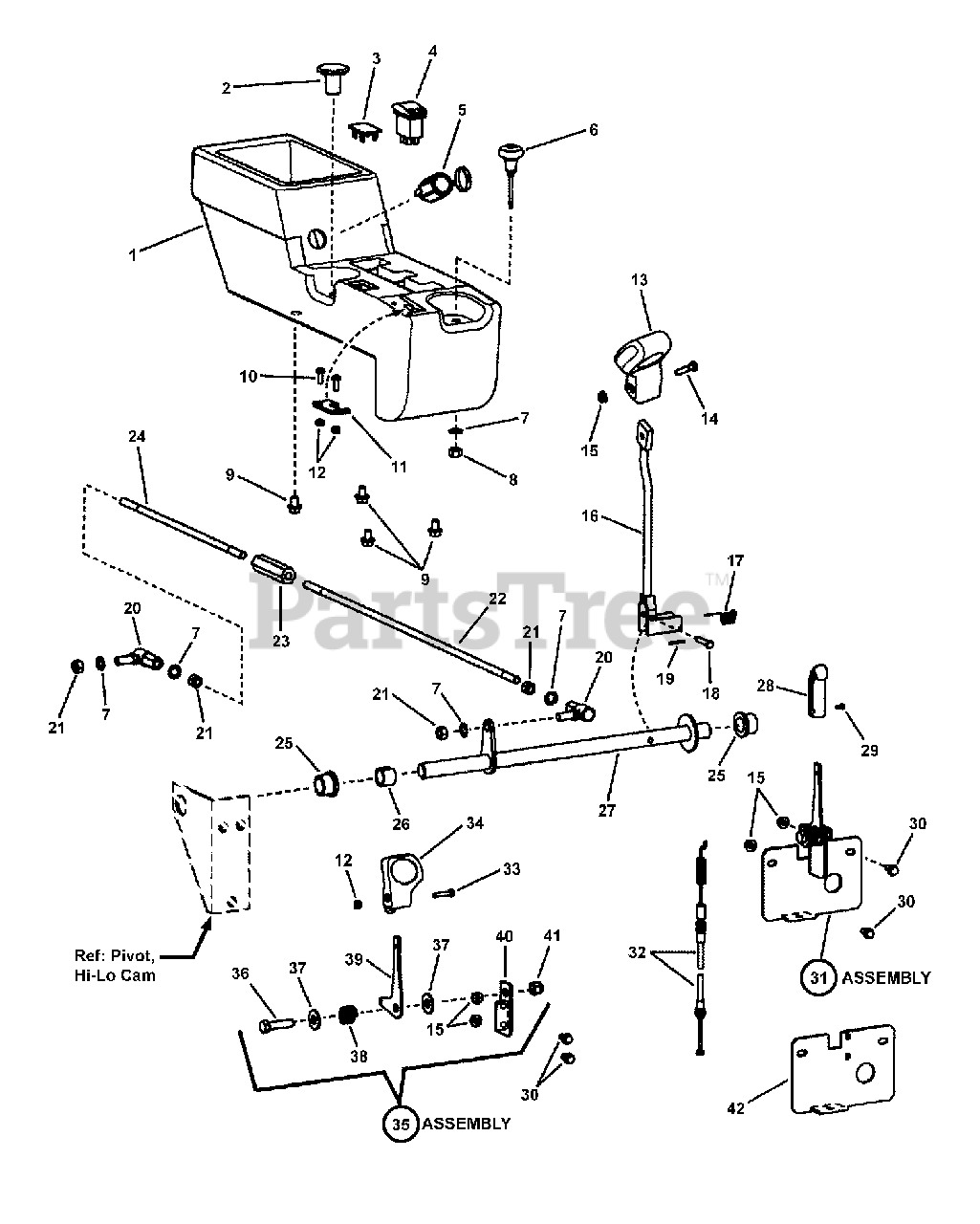

SEAT PEDESTAL GROUP- Controls Parts Diagram

  • Title

1

Snapper 7072718

CONSOLE, UV-2
(Superseded to 7072718YP)

$168.99

$

Usually ships in 2-12 days

0

2

Snapper 1725277

KNOB, Park Brake, Red
(Superseded to 1725277SM)

Note: used on all models

$28.99

$

In Stock, only 3 left!

0

2

Snapper 1715946

KNOB, Parking
(Superseded to 1725277SM)

Note: not used in production

$28.99

$

In Stock, only 3 left!

0

3

Snapper 1709188

PLUG, Dash Hole
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

4

Snapper 7011259

SWITCH, Momentary Rocker (On-Off-On)
(Superseded to 7011259YP)

Note: for Electric Bed Lift (if so equipped)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7073090

OUTLET, 12 Volt DC Power
(Superseded to 7073090SM)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7027908

CABLE, Choke, B&S 16HP Vanguard
(Superseded to 7027908YP)

Note: used on UVGT(or UVGC)621BV

$57.99

$

Usually ships in 2-12 days

0

7

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7090155

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

10

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head Machine
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

11

Snapper 7046805

CONTACT PLATE, Differential Lock
(Superseded to 7046805YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: 1 is used with knob 1725337.

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 1722303

HANDLE, Shift
(Superseded to 1722303SM)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

15

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

16

Snapper 7041808

WELDMENT, Shift Rod
(Superseded to 7041808YP)

$152.99

$

Usually ships in 2-12 days

0

17

Snapper 7043859

SPRING, Transmission Extension (Short)
(Superseded to 7043859YP)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 7011021

CLEVIS PIN, 1/4 x 1-1/4"
(Superseded to 7023914YP)

$

$

Not available

19

Snapper 7091597

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

21

Snapper 7091630

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7034583

ROD, CVT Shift, 21-5/8" Long (3/8-24 thread- both ends)

$

$

Not available

23

Snapper 7034610

HEX BLOCK, Shift Adj. (3/8-24 thread, LH & RH)
(Superseded to 7034610YP)

$24.99

$

Usually ships in 2-12 days

0

24

Snapper 7034584

ROD, CVT Shift, 12-1/8" Long (3/8-24 thread, LH & RH)

$

$

Not available

25

Snapper 7035496

BEARING, .750 I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

26

Snapper 7012068

RING, Rear Lift Arm- Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

27

Snapper 7043233

WELDMENT, Trans. Shifter (9.44" inside measure)
(Superseded to 7043233YP)

Note: was 7041011 (10.94" inside measure)

$75.99

$

Usually ships in 2-12 days

0

28

Snapper 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

Note: used in all late production UV, UVG and all UGVT (or UVGC).

$

$

Not available

29

Snapper 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

Note: used in all late production UV, UVG and all UGVT (or UVGC).

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock, GR 5
(Superseded to 7091579SM)

$3.99

$

In Stock, only 3 left!

0

31

Snapper 7047084

ASS'Y, Differential Lock (incl. items 11, 15, 30, 35 & 42)

Note: used on all models

$

$

Not available

31

Snapper 7063166

ASSEMBLY, Differential Lock (Camo version)

Note: not used in production

$

$

Not available

32

Snapper 7072939

CABLE, Differential Lock
(Superseded to 7072939YP)

$37.99

$

Usually ships in 2-12 days

0

33

Snapper 960604

* SCREW, Hex Washer Head Slot #10 x 1"
(Superseded to 2860604SM)

$4.49

$

In Stock, only 2 left!

0

34

Snapper 1725337

* KNOB, Throttle (Red)
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

35

Snapper 7041788

ASSEMBLY, Differential Lock (Includes next 6 items)

$

$

Not available

36

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

37

Snapper 7090517

WASHER, 3/8" SAE Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

38

Snapper 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

39

Snapper 7011260

LEVER, Differential Lock
(Superseded to 7011260YP)

Note: was 7074677

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 7046803

BRACKET, Differential Lock
(Superseded to 7046803YP)

$14.99

$

Usually ships in 2-12 days

0

41

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

42

Snapper 7046802

MOUNTING PLATE, Differential Lock
(Superseded to 7046802YP)

$20.99

$

Usually ships in 2-12 days

0
