UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton SEAT GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

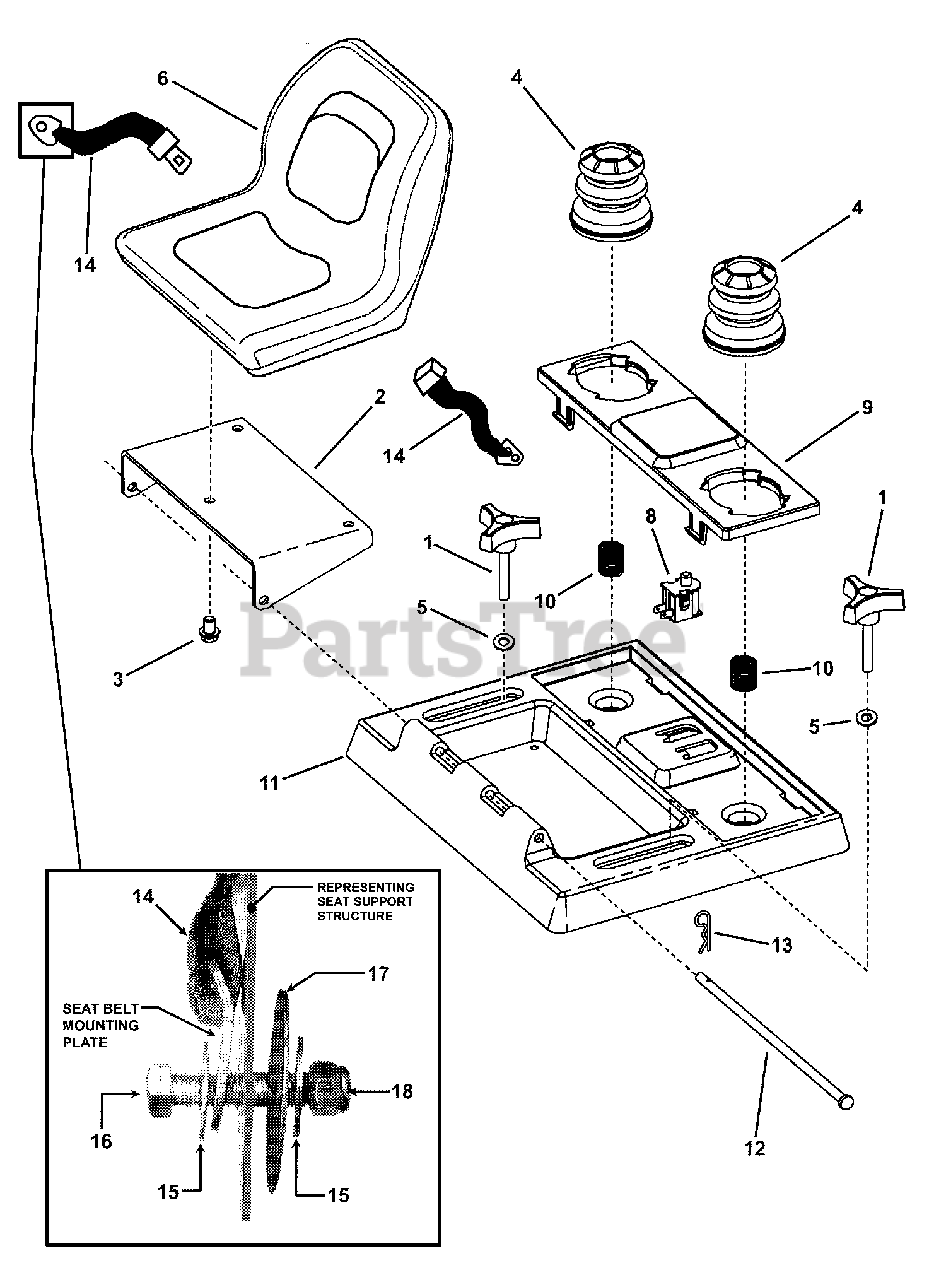

SEAT GROUP Parts Diagram

  • Title

13

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

Note: in hardware bag

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper 5402859D

MOUNT, SEAT STOP - RED
(Superseded to 5402859DYP)

$32.99

$

Usually ships in 2-12 days

0

14

Snapper 7073532

SEAT BELT, 60" (incl. Ref. Nos. 16 thru 18)
(Superseded to 7073532YP)

Note: in hardware bag

$69.99

$

Usually ships in 2-12 days

0

15

Snapper 7090991

WASHER, 7/16" Flat (Type A, Wide)
(Superseded to 7090991YP)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 5403555D

PLATE, FOOT REST - RED
(Superseded to 5403555DYP)

Note: (S/N: 2014755820 & Below)

$136.99

$

Usually ships in 2-12 days

0

17

Snapper 5403574D

WELD, PLATE, SEAT MOUNT - RED
(Superseded to 5403574DYP)

Note: (S/N: 2014755820 & Below)

$159.99

$

Usually ships in 2-12 days

0

16

* SCREW, 7/16-20 x 2" Hex Head Cap, GR 5

$

$

Not available

18

Snapper 5023263

VINYL CLAMP
(Superseded to 5023263SM)

$3.49

$

Usually ships in 2-12 days

0

17

* WASHER, 1/2" I.D. x 2-1/2" O.D. Flat

$

$

Not available

19

Snapper 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

18

* NUT, 7/16-20 Hex Nyloc

$

$

Not available

20

Snapper 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

21

Snapper 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

22

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (S/N: 2014755821 & Above Qty. 4)

$3.99

$

In Stock, Qty 6

0

23

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 1686907

ARM REST (SET OF TWO) (SV)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

25

Snapper 5100652SM

SPRING, Extension, Seat Adjustment (BLK or SLVR) (3-1/2" Total unstretched length.)

$10.99

$

Usually ships in 2-12 days

0

26

Snapper 5061599X1

KIT, SEAT RAILS (COMPLETE)(SV)
(Superseded to 5061599X1SM)

$192.99

$

Usually ships in 2-12 days

0
