UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton FRONT SUSPENSION GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

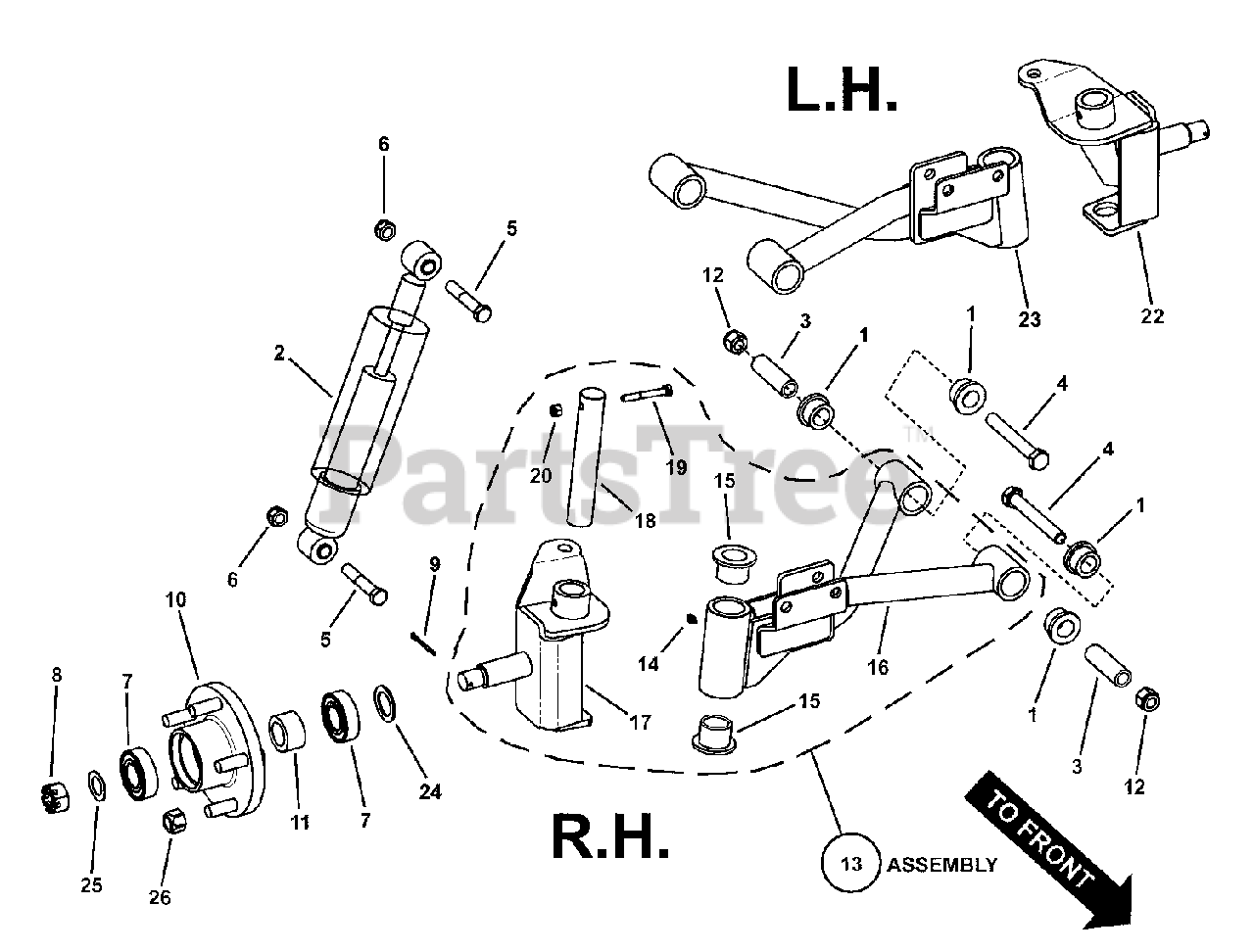

FRONT SUSPENSION GROUP Parts Diagram

  • Title

1

Snapper 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

2

Snapper 7072614

ASSEMBLY, Shock/Spring

$

$

Not available

3

Snapper 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0

4

Snapper 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head, GR 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

5

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" Hex Head Cap (Special) GR 5
(Superseded to 7091703SM)

Note: or 7092071: SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5 w/locking patch

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 7090970

NUT, 7/16-20 Hex Top Lock
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7019572

BEARING, BALL, .98" ID, 2.04" OD, .59" Wide
(Superseded to 7019572YP)

Note: 6205-2RS

$30.99

$

Usually ships in 2-12 days

0

8

Snapper 7092038

NUT, 3/4-16 Slotted Hex, GR 5
(Superseded to 7092038YP)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 7091809

PIN, Cotter 1/8 x 1-1/4"
(Superseded to 7091809YP)

Note: Was 7090297

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7072615

WHEEL HUB, Front

Note: plate with 5 pressed-in 1/2-20 threaded studs

$

$

Not available

11

Snapper 7072618

SPACER, Front Wheel
(Superseded to 7072618YP)

$17.99

$

Usually ships in 2-12 days

0

12

Snapper 7091922

NUT, 1/2-13 Hex Nyloc
(Superseded to 703453)

Note: or 7091121

$5.99

$

Usually ships in 2-12 days

0

13

R/B 7053445, ASSY, RH A-Arm & Spindle

Note: Was 7058539

$

$

Not available

14

Snapper 7013864

LUBE FITTING, 3/16" Serrated
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

15

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

16

Snapper 7053445

A-ARM ASSEMBLY, RH

Note: Was 7058432

$

$

Not available

17

Snapper 7058485

SPINDLE WELDMENT, RH
(Superseded to 7058485YP)

$179.99

$

Usually ships in 2-12 days

0

18

Snapper 7072679

ROD, Spindle Pivot
(Superseded to 7072679YP)

$45.99

$

Usually ships in 2-12 days

0

19

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

21

R/B 7053444, ASSY, LH A-Arm & Spindle

Note: Was 7058596 (not shown)

$

$

Not available

22

Snapper 7058419

SPINDLE, WELDMENT, LH

$

$

Not available

23

Snapper 7053444

A-ARM ASSEMBLY, LH
(Superseded to 7053444YP)

Note: Was 7058484

$164.99

$

Usually ships in 2-12 days

0

24

Snapper 7016561

BUSHING, 14 Gage Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

25

Snapper 7031965

THRUST WASHER, 3/4" I.D.
(Superseded to 7031965YP)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7027192

LUG NUT, 1/2-20 Hex
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0
