UVG 1621BV (7085632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton Bed Assembly - Tail Gate (179bedt) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

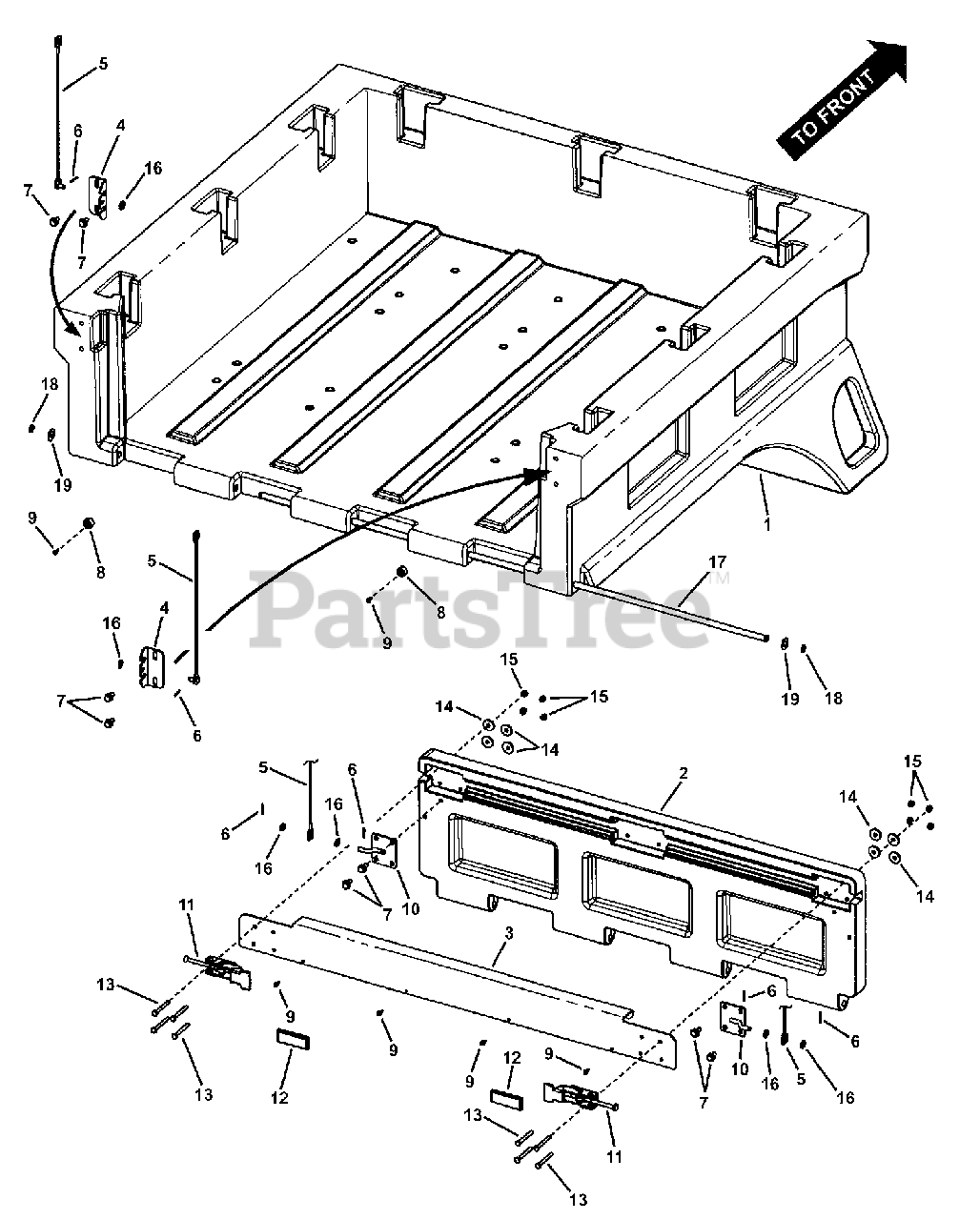

Bed Assembly - Tail Gate (179bedt) Parts Diagram

  • Title

1

Snapper 7075881

BED, Plastic

$

$

Not available

2

Snapper 7075882

TAILGATE, Plastic
(Superseded to 7075882YP)

$216.99

$

Usually ships in 2-12 days

0

3

Snapper 7043204

COVER, Tailgate
(Superseded to 7043204YP)

$99.99

$

Usually ships in 2-12 days

0

4

Snapper 7043202

BRACKET, Latch LH

$

$

Not available

5

Snapper 7026456

LANYARD, Tailgate
(Superseded to 7026456YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7090037

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090606SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

8

Snapper 7033795

BUMPER, Recess Style
(Superseded to 7033795YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7092106

SCREW, #10 x 5/8, HiLo Nail Point
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7027803

BRACKET, Gate (weldment)
(Superseded to 7027803YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7034792

LATCH, Tailgate
(Superseded to 7034792YP)

$71.99

$

Usually ships in 2-12 days

0

12

Snapper 7023682

REFLECTOR, Red
(Superseded to 1701600SM)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091256SM

CAPSCREW, Hex Head, G1/4-20 x 2-1/4 Hex Head, GR 5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7091627

WASHER, .281 x 1.00 x .125 Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

15

Snapper 7091603SM

NUT, Hex Nyloc, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7091076SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7026779

ROD, Tailgate
(Superseded to 7026779YP)

$36.99

$

Usually ships in 2-12 days

0

18

Snapper 7010776

RETAINING RING, 1/2, Heavy Duty
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 7091733

WASHER, .5 x 1.0 x .03 Flat
(Superseded to 7091733YP)

$4.49

$

Usually ships in 2-12 days

0
