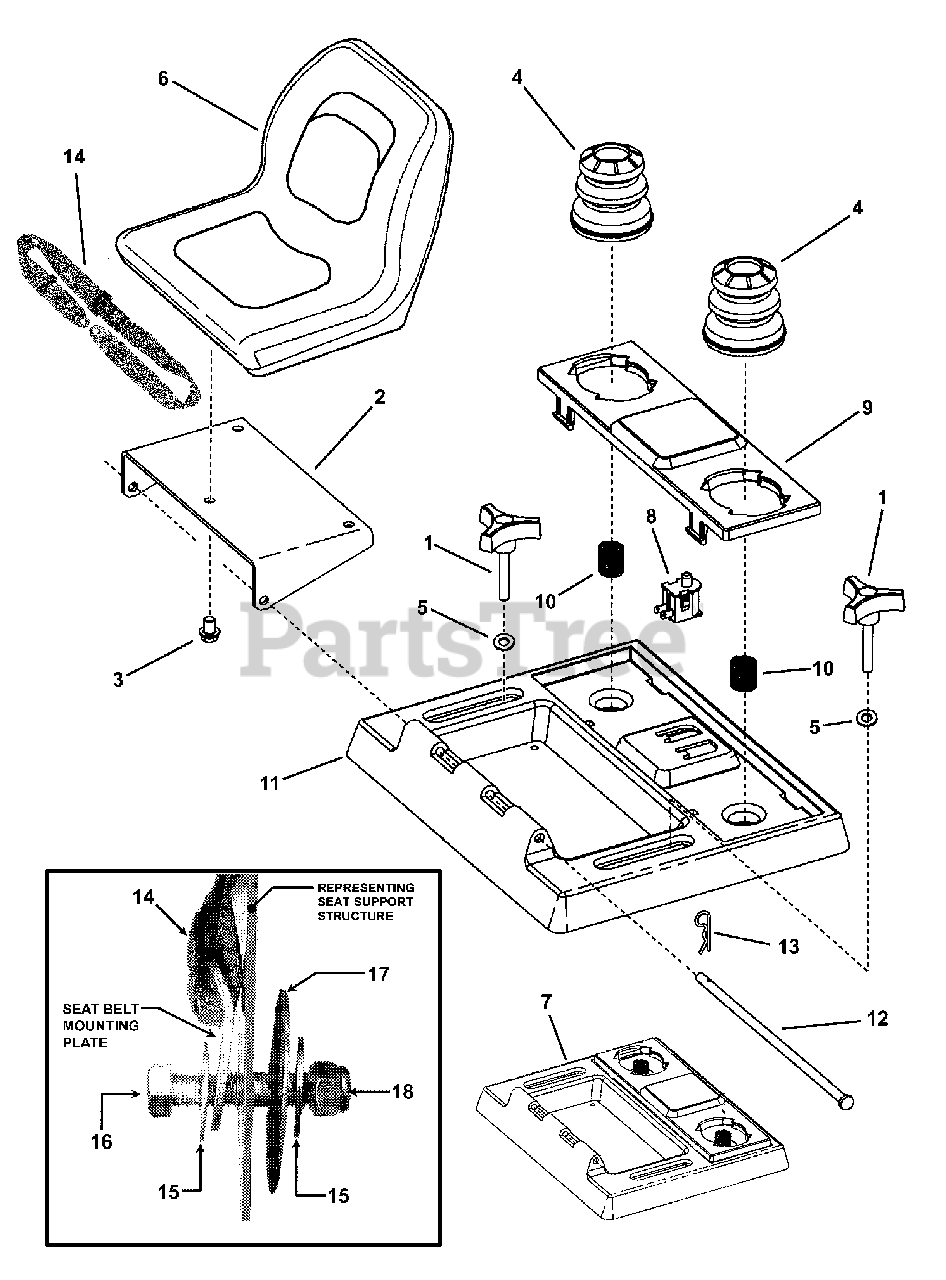

UVG 1621 BV (7085632) - Simplicity Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Seat Group (179seat) Parts Diagram

Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

Seat Group (179seat) Parts Diagram

  • Title

1

Simplicity 7017875

KNOB, 3 Prong, 5/16-18 x 2 Stud
(Superseded to 7017875YP)

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 7033318

SUPPORT, Seat, Upper

$

$

Not available

3

Simplicity 7091525

BOLT, Hex Flange Lock, 5/16-18 x 1/2 GR 5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

4

Simplicity 7019109

COVER, Spring (Rubber)
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

5

Simplicity 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 7035271

SEAT, Milsco XB-150, No Logo
(Superseded to 7035271YP)

$353.99

$

Usually ships in 2-12 days

0

7

Simplicity 7063295

ASSEMBLY, Seat Support, UV2 (Includes Ref. Nos. 8 thru 11)
(Superseded to 7063295YP)

$82.99

$

Usually ships in 2-12 days

0

8

Simplicity 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

9

Simplicity 7028580

HOLDER, Seat Cushion E.C.
(Superseded to 7028580YP)

$50.99

$

In Stock, only 4 left!

0

10

Simplicity 7073266

SPRING, Cushion Holder
(Superseded to 7073266YP)

$5.99

$

In Stock, Qty 20+

0

11

Simplicity 7074204

SUPPORT, Seat E.C.
(Superseded to 7074204YP)

$79.99

$

Usually ships in 2-12 days

0

12

Simplicity 7074452

ROD, Seat Hinge
(Superseded to 7074452YP)

$10.99

$

Usually ships in 2-12 days

0

13

Simplicity 7091503SM

HAIR PIN, 3/32 x 1-1/2

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 7073532

SEAT BELT
(Superseded to 7073532YP)

$69.99

$

Usually ships in 2-12 days

0

15

Simplicity 7090991

WASHER, 7/16 Flat (Type A, Wide)
(Superseded to 7090991YP)

$2.99

$

Usually ships in 2-12 days

0

16

CAPSCREW, Hex Head, 7/16-20 x 2 GR 5

$

$

Not available

17

WASHER, 1/2 I.D. x 2-1/2 O.D. Flat

$

$

Not available

18

NUT, Hex Nyloc, 7/16-20

$

$

Not available
