UVG 1621 BV (7085632) - Simplicity Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Hood Group (179hood) Parts Diagram

Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

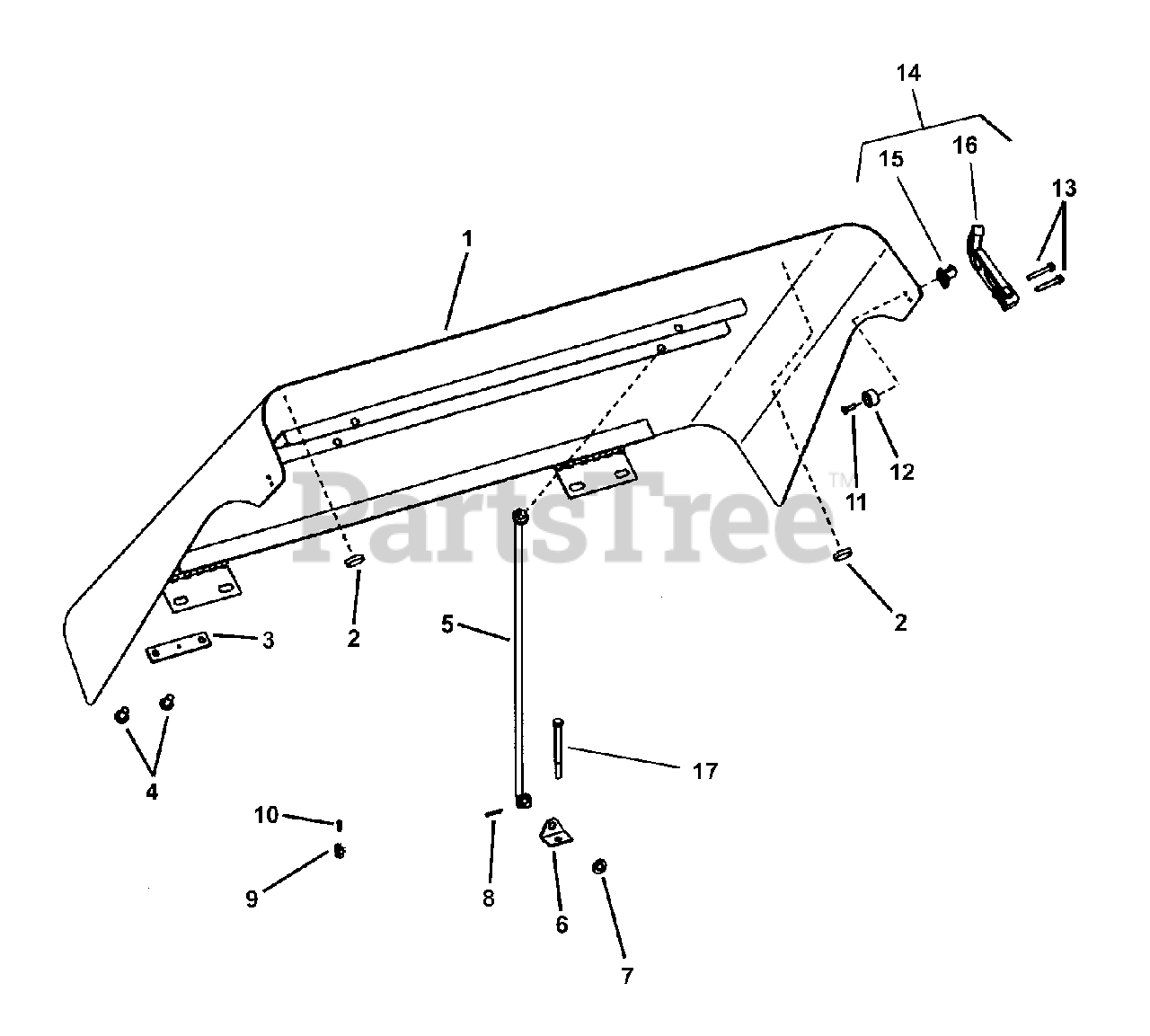

Hood Group (179hood) Parts Diagram

  • Title
1

Simplicity 7027495

HOOD, Utility Vehicle

$

$

Not available

2

Simplicity 7035270

PAD, Hood
(Superseded to 7035270YP)

$2.99

$

Usually ships in 2-12 days

0

3

Simplicity 7043211

PLATE WASHER
(Superseded to 7043211YP)

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 7091833SM

SCREW, Cross Recessed Pan Head, 5/16-18 x 5/8

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 7043208

PROP, Hood
(Superseded to 7043208YP)

$15.99

$

Usually ships in 2-12 days

0

6

Simplicity 7043209

BRACKET, Hood Prop
(Superseded to 7043209YP)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 7091597SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 7043210

HOLDER, Hood Prop
(Superseded to 7043210YP)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 7092074

SCREW, Pan Head Self-Tap, #6-20 x .34
(Superseded to 7092074YP)

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 7091942

SCREW, Pan Head Machine, #10-24 x 1/2
(Superseded to 7091942YP)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 7033795

BUMPER, Recess Style
(Superseded to 7033795YP)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 7091216

SCREW, Hex Washer Self-Tap, #10 x 1-1/4, HI-LO
(Superseded to 7091216YP)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 7029051

ASSEMBLY, Hood Latch (Includes Ref. Nos. 15 & 16)

$

$

Not available

15

Simplicity 7028017

KEEPER, Hood Handle
(Superseded to 7028017YP)

$9.99

$

Usually ships in 2-12 days

0

16

Simplicity 7028035

ASSEMBLY, Hood Handle
(Superseded to 7028035YP)

$30.99

$

Usually ships in 2-12 days

0

17

Simplicity 7091317

CAPSSCREW, Hex Head 1/4-20 x 3 GR5
(Superseded to 704208)

$4.49

$

Usually ships in 2-12 days

0
