UVG 1621 BV (7085632) - Simplicity Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Front Clip Group (179frcg) Parts Diagram

Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

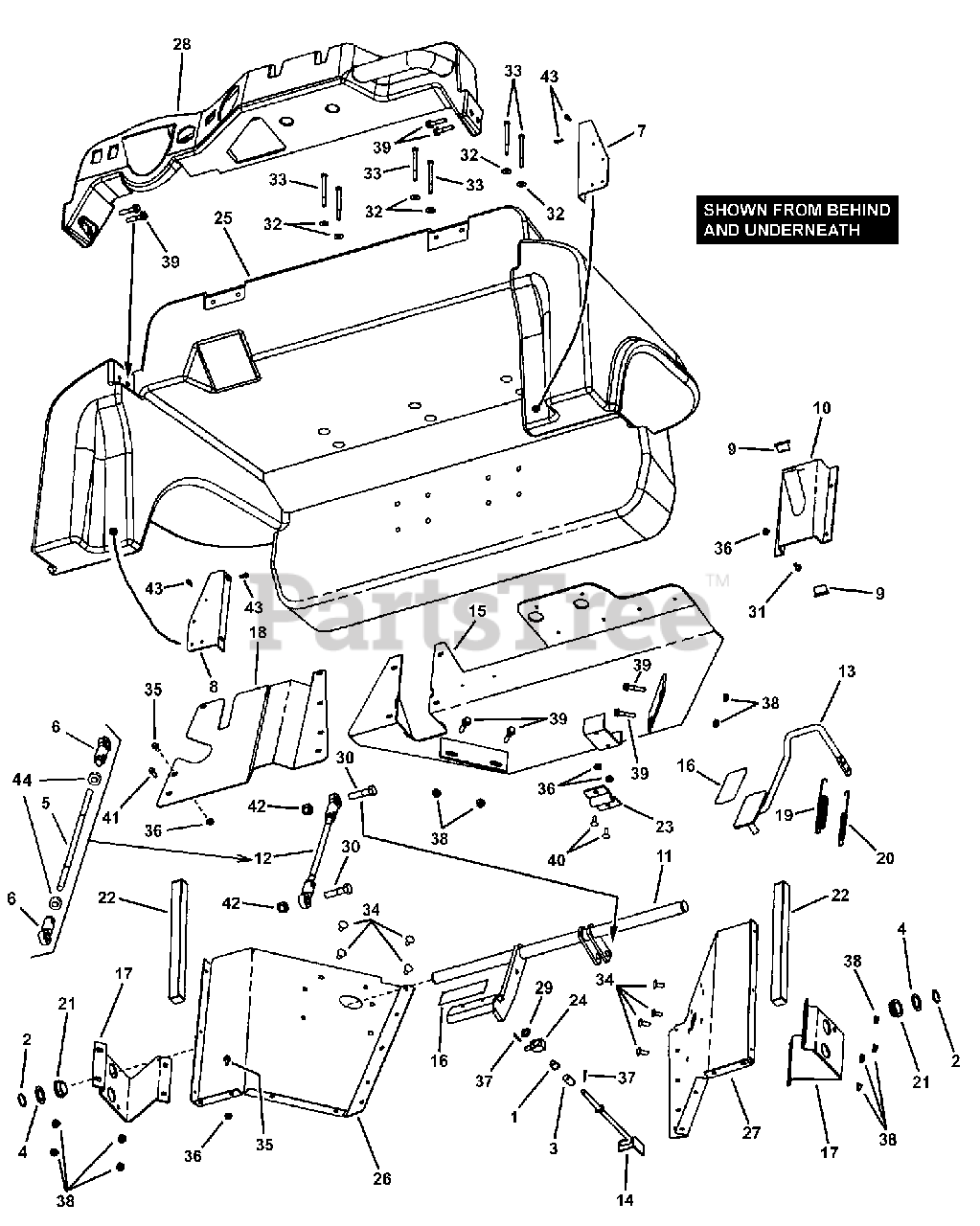

Front Clip Group (179frcg) Parts Diagram

  • Title

1

Simplicity 7012306SM

BUSHING, Flange .381 x .625 x .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

2

Simplicity 2827320SM

RING, 1.00 Dia. External Retaining

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 7016561

BUSHING, 14 Gage Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

5

Simplicity 7072988SM

ROD, Upper CVT Brake

$24.99

$

Usually ships in 2-12 days

0

6

Simplicity 7073012

ROD END, Female 1/2-20 thread
(Superseded to 7073012YP)

$66.99

$

Usually ships in 2-12 days

0

7

Simplicity 7034648

KICK PLATE, RH
(Superseded to 7034648YP)

$22.99

$

Usually ships in 2-12 days

0

8

Simplicity 7034741

KICK PLATE, LH

$

$

Not available

9

Simplicity 7035496

BEARING, .750 I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

10

Simplicity 7041967

SUPPORT ASSEMBLY, Column
(Superseded to 7041967YP)

$100.99

$

Usually ships in 2-12 days

0

11

Simplicity 7058125

PEDAL ASSEMBLY, Brake CVT
(Superseded to 7058125YP)

$233.99

$

Usually ships in 2-12 days

0

12

Simplicity 7058556

ASSEMBLY, Upper Brake Rod (Includes Ref. Nos. 5, 6 & 44)

$

$

Not available

13

Simplicity 7058748

PEDAL ASSEMBLY, Throttle Pedal

$

$

Not available

14

Simplicity 7058753

ROD ASSEMBLY, Brake Switch
(Superseded to 7058753YP)

$46.99

$

Usually ships in 2-12 days

0

15

Simplicity 7063343

SUPPORT ASSEMBLY, Steering
(Superseded to 7063343YP)

$245.99

$

Usually ships in 2-12 days

0

16

Simplicity 7072502

PEDAL GRIP
(Superseded to 7072502YP)

$2.49

$

Usually ships in 2-12 days

0

17

Simplicity 7072518

BRACKET, Brake Support, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

17

Simplicity 7035752

BRACKET, Brake Support, Used on Trail Cruiser Model 85903
(Superseded to 7035752YP)

$39.99

$

Usually ships in 2-12 days

0

18

Simplicity 7072588

PEDAL SHIELD, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7072588YP)

$62.99

$

Usually ships in 2-12 days

0

18

Simplicity 7035753

PEDAL SHIELD, Used on Trail Cruiser Model 85903
(Superseded to 7035753YP)

$61.99

$

Usually ships in 2-12 days

0

19

Simplicity 7072600

SPRING, Throttle Pedal Return
(Superseded to 7072600YP)

$18.99

$

Usually ships in 2-12 days

0

20

Simplicity 7072602

SPRING, Inner Throttle Return
(Superseded to 7072602YP)

$16.99

$

Usually ships in 2-12 days

0

21

Simplicity 7072645

BEARING, 1 I.D.
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

22

Simplicity 7078031

GASKET, Closed Cell, Adhesive Back
(Superseded to 7078031YP)

$18.99

$

Usually ships in 2-12 days

0

23

Simplicity 7073163

PIVOT BRACKET, Throttle

$

$

Not available

24

Simplicity 7073876

SWIVEL, Brake Rod
(Superseded to 7073876YP)

$18.99

$

Usually ships in 2-12 days

0

25

Simplicity 7075818

FENDER, UV-2
(Superseded to 7075818YP)

$752.99

$

Usually ships in 2-12 days

0

26

Simplicity 7075870

FIREWALL, LH, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7075870YP)

$111.99

$

Usually ships in 2-12 days

0

26

Simplicity 7035754

FIREWALL, LH, Used on Trail Cruiser Model 85903
(Superseded to 7035754YP)

$83.99

$

Usually ships in 2-12 days

0

27

Simplicity 7075871

FIREWALL, RH, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7075871YP)

$111.99

$

Usually ships in 2-12 days

0

27

Simplicity 7035755

FIREWALL, RH, Used on Trail Cruiser Model 85903
(Superseded to 7035755YP)

$83.99

$

Usually ships in 2-12 days

0

28

Simplicity 7078813

DASH, UV-2
(Superseded to 7078813YP)

$193.99

$

Usually ships in 2-12 days

0

29

Simplicity 1924940SM

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 7090543

CAPSCREW, Hex Head, 1/2-13 x 2-3/4 GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

31

Simplicity 7091148SM

SCREW, Pan Head Machine 1/4-20 x 1/2

$4.99

$

In Stock, Qty 7

0

32

Simplicity 7091253

WASHER, .281 x .750 x .051 Flat
(Superseded to 7091253YP)

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 7091317

CAPSCREW, Hex Head, G1/4-20 x 3 Hex Head, GR 5
(Superseded to 704208)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 7091508SM

CARRIAGE BOLT, 5/16-18 x 3/4 GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 7091579SM

SCREW, Hex Flange Lock, 1/4-20 x 1/2 GR 5

$3.99

$

In Stock, only 3 left!

0

36

Simplicity 7091584SM

NUT, Hex Flange Lock, 1/4-20 GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

37

Simplicity 7091598SM

COTTER PIN, 1/8 x 3/4
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

38

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18 GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Simplicity 7091602SM

BOLT, Hex Flange Lock, 5/16-18 x 1-1/2 GR 5

$3.99

$

In Stock, Qty 5

0

40

Simplicity 7091776

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

41

Simplicity 7091819SM

SCREW, Hex Washer Self-Tap, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

42

Simplicity 7091922

NUT, Hex Nyloc, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

43

Simplicity 7092106

SCREW, #10 x 5/8, HiLo Nail Point
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 7090559

NUT, Hex Jam, 1/2-20 GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0
