UVD60 XS (UVD6672 XS) - Exmark Ultra Vac Bagger for Lazer Z XS Mower (SN: 600000 - 669999) (2006) Weight And Belt Drive Components 66" (Above SN 6000,000) Parts Diagram

Ultra Vac Bagger for Lazer Z XS Mower

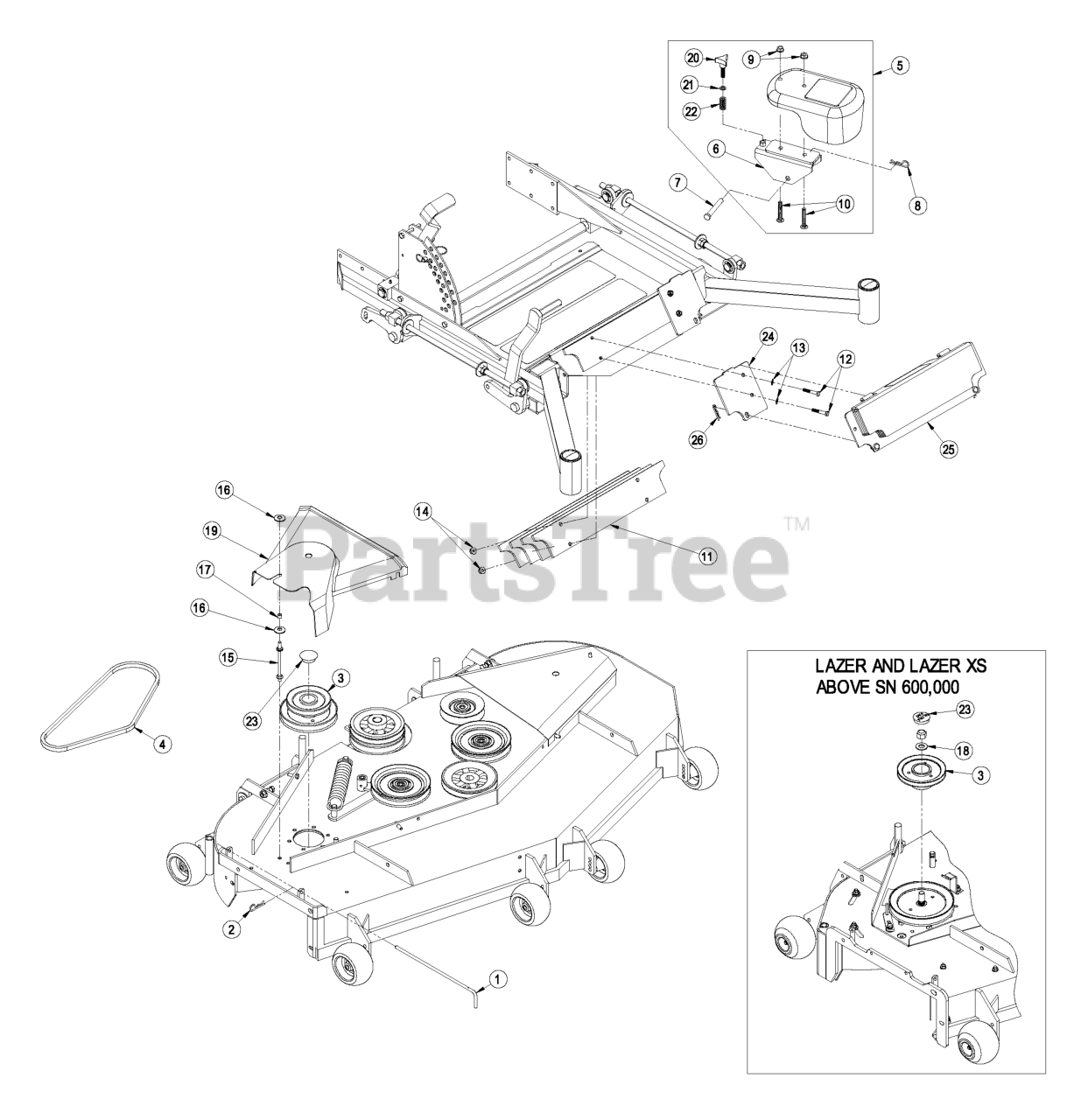

Weight And Belt Drive Components 66" (Above SN 6000,000) Parts Diagram

  • Title

1

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-1213

Sheave 66 Triton

$

$

Currently unavailable

4

Exmark 103-0867

BELT, BLOWER DRIVE 72
(Superseded to 103-0867-SL)

$33.99

$

In Stock, only 1 left!

0

5

Exmark 103-0902

ASM, WEIGHT 2.0" 43 POUND

Note: Includes items 6, 9, 10, 19, 20, 21 weight and decal

$480.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

WLD, BRACKET 2.0 ARM

$85.99

$

Usually ships in 3-6 days

0

7

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

8

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2500

BOLT-SQH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-01

PLATE, WEIGHT

Note: Liquid cooled unit only

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 322-9

SCREW-HH

Note: Liquid cooled unit only

$3.49

$

In Stock, only 3 left!

0

13

Exmark 3256-23

WASHER-PLAIN

Note: Liquid cooled unit only

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

Note: Liquid cooled unit only

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

STUD,BELT SHIELD 4 INCH

$24.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603610

WASHER-SPRING

Note: Not Used

$5.49

$

In Stock, Qty 5

0

17

Exmark 1-633545

SPACER

Note: Not used

$2.99

$

In Stock, Qty 15

0

18

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

19

Exmark 109-1172

COVER, BELT 66

$237.99

$

Usually ships in 3-6 days

0

20

Exmark 103-2187

KNOB

$6.99

$

In Stock, Qty 12

0

21

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Exmark 103-2188

SPRING

$6.99

$

In Stock, Qty 12

0

23

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5856-01

PLATE, WEIGHT MOUNTING

Note: Liquid cooled unit only

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 103-5866

ASM, WEIGHT PLATE WITH DE

Note: Liquid cooled unit only

$

$

Not available

26

Exmark 9335124

PIN-HAIR

Note: Liquid cooled unit only

$2.99

$

In Stock, Qty 5

0

27

Exmark 103-5865

Template, Drill

Note: Item not shown. Use to drill holes for floorpan weights; Liquid cooled unit only

$

$

Currently unavailable
