UVD60 (UVD6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Hopper Assembly Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

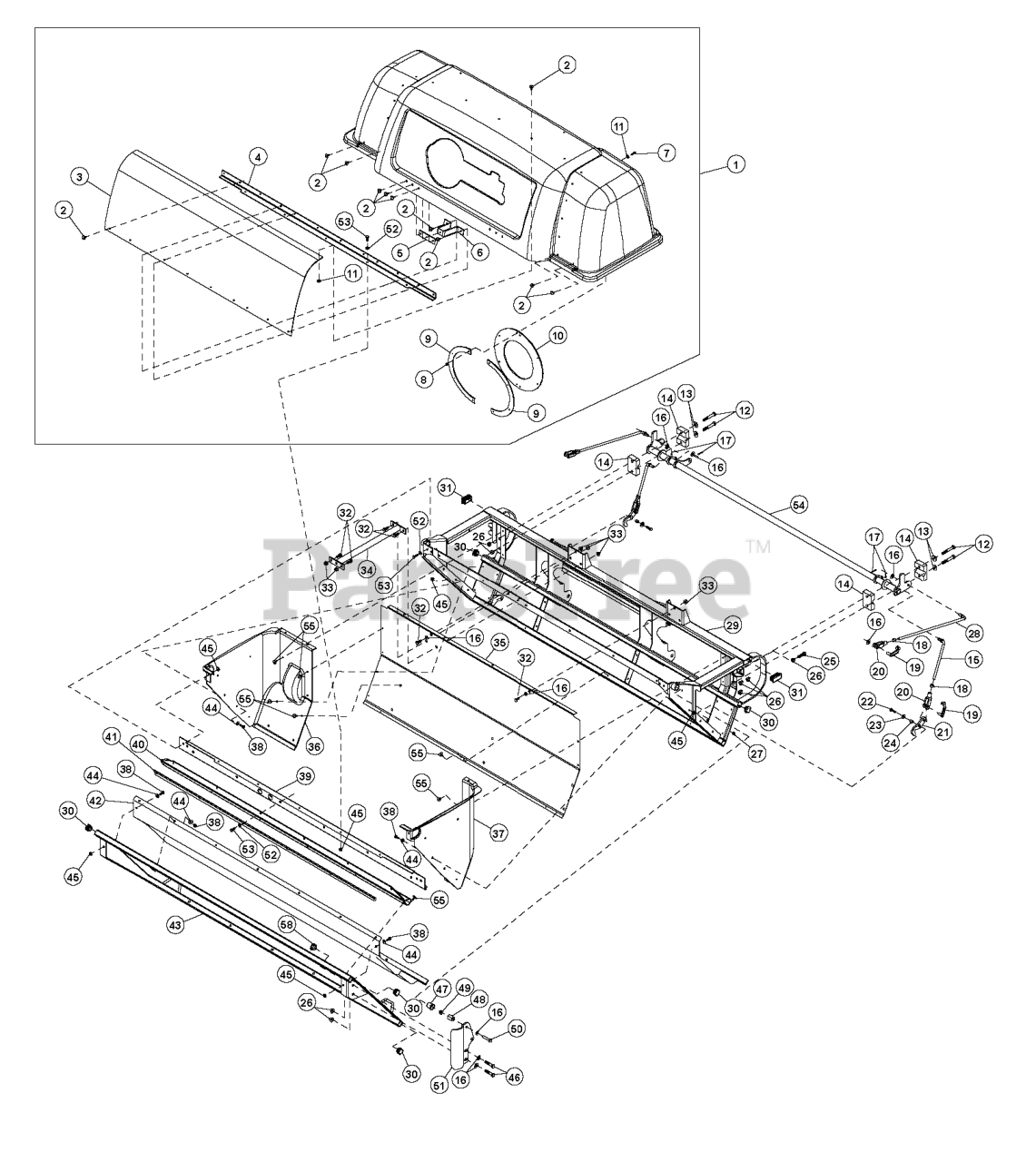

Hopper Assembly Parts Diagram

  • Title
1

Exmark 103-2736

Asm, Hood Dump

Note: Includes items 2 through 11 and large Exmark decal.

$1157.99

$

Usually ships in 3-6 days

0

2

Exmark 114439

Rivet, Pop 3/16 x 1/2

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-0440

Screen, Bagger

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 103-2662-03

Support, Screen

$70.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0376

Plate, Latch Reinforce

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 103-0379

Bracket, Mount

$42.99

$

Usually ships in 3-6 days

0

7

Exmark 3250-27

Screw, #10-24 x 3/4 CRTH

$0.99

$

In Stock, Qty 9

0

8

Exmark 3296-2

Nut, Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

9

Exmark 103-0378

Clamp, Seal

$33.99

$

In Stock, only 1 left!

0

10

Exmark 103-0439

Seal, Tube

$45.99

$

In Stock, only 3 left!

0

11

Exmark 3256-61

Washer, Flat .216 x .750

$2.99

$

In Stock, only 2 left!

0

12

Exmark 323-12

Screw, HH 3/8-16 x 2 1/2

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3256-4

Washer, Flat 7/16 x 2

$1.99

$

In Stock, Qty 20+

0

14

Exmark 103-2409

Bearing, Block Half
(Superseded to 103-8057)

$63.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2413

Linkage, Handle

$13.99

$

In Stock, only 3 left!

0

16

Exmark 3256-24

Washer, Flat .406 x .813

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3272-10

Pin, Cotter 1/8 x 3/4

$1.49

$

In Stock, Qty 11

0

18

Exmark 3219-3

Nut, HH 3/8-24

$1.99

$

In Stock, Qty 20+

0

19

Exmark 103-2399

Pin, Spring Clevis 3/8

$6.49

$

In Stock, Qty 6

0

20

Exmark 1-633131

Yoke, Brake Linkage

$15.99

$

In Stock, Qty 12

0

$22.99

$

Usually ships in 3-6 days

0

22

Exmark 321-6

Screw, HH 1/4-20 x 1

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3256-55

Washer, Flat 1/4

$5.49

$

In Stock, Qty 11

0

24

Exmark 1-633545

Spacer, Gommet

$2.99

$

In Stock, Qty 20+

0

25

Exmark 323-53

Bolt, Tap 3/8-16 x 1 3/4

$3.99

$

Usually ships in 3-6 days

0

26

Exmark 3290-357

Nut, HHF 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3296-42

Nut, Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

28

Exmark 103-2365

Link, Hinge

$15.99

$

In Stock, only 2 left!

0

29

Exmark 103-4742-03

Wld, Upright

$1200.99

$

Usually ships in 3-6 days

0

30

Exmark 103-3202

Cap, Tube 1 x 1

$1.49

$

In Stock, only 1 left!

0

31

Exmark 103-3201

Cap, Tube 1 x 2

$3.49

$

Usually ships in 3-6 days

0

32

Exmark 322-3

Screw, HH 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-20

Nut, Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

34

Exmark 103-2414-03

Wld, Rear Crossmember

$56.99

$

Usually ships in 3-6 days

0

35

Exmark 103-2404-03

Sheet, Wall

$178.99

$

Usually ships in 3-6 days

0

36

Exmark 103-7826

Panel, Bagger LH

$181.99

$

Usually ships in 3-6 days

0

37

Exmark 103-7827

Panel, Bagger RH

$181.99

$

Usually ships in 3-6 days

0

38

Exmark 321-3

Screw, HH 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

0

39

Exmark 103-2710

Asm, Rear Crossmember

$181.99

$

Usually ships in 3-6 days

0

40

Exmark 103-2360

Seal, Door Hinge

$132.99

$

Usually ships in 3-6 days

0

41

Exmark 103-3010-03

Strap, Hold Down

$67.99

$

Usually ships in 3-6 days

0

42

Exmark 103-2383

Asm, Bag & Bottom Panel

$359.99

$

Usually ships in 3-6 days

0

43

Exmark 103-2737

Asm, Door Frame

$722.99

$

Usually ships in 3-6 days

0

44

Exmark 3256-2

Washer, Flat .312 x .750
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

45

Exmark 32128-33

Nut, Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

46

Exmark 323-6

Screw, HH 3/8-16 x 1

$2.99

$

In Stock, Qty 20+

0

47

Exmark 103-2377

Bushing

$8.99

$

In Stock, only 1 left!

0

48

Exmark 103-2361

Pin, Hinge Pivot

$19.99

$

Usually ships in 3-6 days

0

49

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

50

Exmark 322-9

Screw, HH 5/16-18 x 1 3/4

$3.49

$

In Stock, Qty 20+

0

51

Exmark 103-3332-03

Arm, Hinge LH

$60.99

$

Usually ships in 3-6 days

0

Exmark 103-3331-03

Arm, Hinge RH

Note: (Not Shown)

$60.99

$

Usually ships in 3-6 days

0

52

Exmark 3256-22

Washer, 1/4 SAE

$0.99

$

In Stock, Qty 20+

0

53

Exmark 321-4

Screw, HH 1/4-20 x 3/4

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-2412-03

Wld, Intermediate Link

$283.99

$

Usually ships in 3-6 days

0

55

Exmark 114439

Rivet, Pop 3/16 x 1/2

$1.49

$

In Stock, Qty 20+

0

58
