UVD60 (UVD6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 315000000 - 315999999) (2015) Hopper Assembly Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

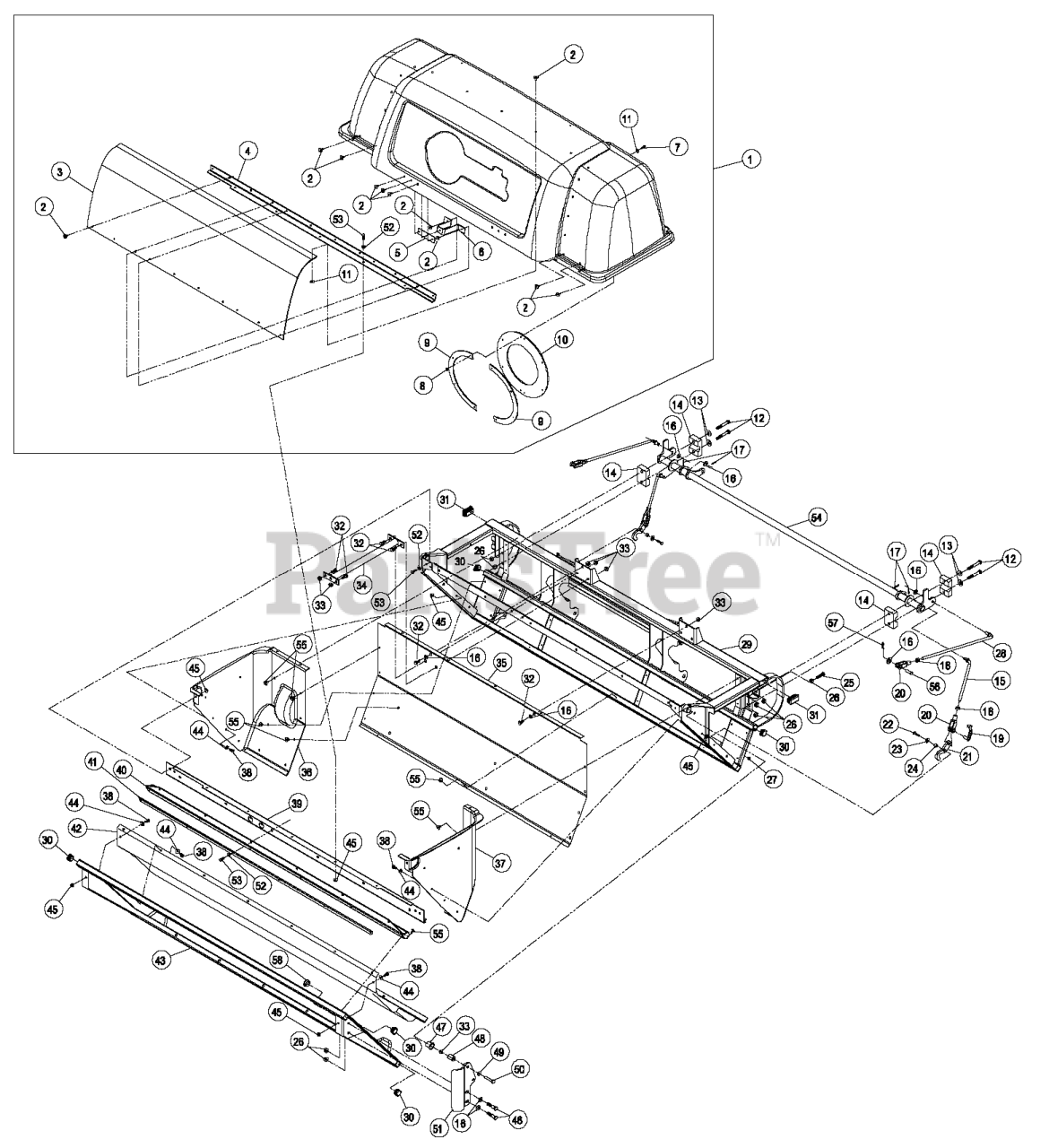

Hopper Assembly Parts Diagram

  • Title
1

Exmark 103-2736

ASM, HOOD - SERVICE ONLY

Note: Includes items 2 through 11 and large Exmark decal.

$1043.99

$

Usually ships in 3-6 days

0

2

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-0440

SCREEN-BAGGER

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 103-2662-03

SUPPORT-SCREEN

$70.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0376

PLATE-LATCH, REINFORCEMEN

$9.49

$

Usually ships in 3-6 days

0

6

Exmark 103-0379

BRACKET-MOUNT

$42.99

$

Usually ships in 3-6 days

0

7

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0

10

Exmark 103-0439

SEAL-TUBE

$45.99

$

In Stock, only 2 left!

0

11

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

12

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

13

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Exmark 103-2409

103-8057
(Superseded to 103-8057)

$63.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2413

LINK-HANDLE

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

17

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

18

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

19

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 11

0

20

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

$22.99

$

Usually ships in 3-6 days

0

22

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

24

$2.99

$

In Stock, Qty 15

0

25

Exmark 323-53

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

26

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

28

Exmark 103-2365

LINK-HINGE

$15.99

$

In Stock, only 2 left!

0

29

Exmark 103-4742-03

UPRIGHT-BAGGER

$1134.99

$

Usually ships in 3-6 days

0

$1.49

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-6 days

0

32

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

$1.49

$

In Stock, Qty 20+

0

34

$56.99

$

Usually ships in 3-6 days

0

35

Exmark 103-2404-03

SHEET-WALL

$178.99

$

Usually ships in 3-6 days

0

36

Exmark 103-7826

PANEL-BAGGER, LH

$181.99

$

Usually ships in 3-6 days

0

37

Exmark 103-7827

PANEL-BAGGER, RH

$181.99

$

Usually ships in 3-6 days

0

38

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 103-2710

REAR CROSSMEMBER ASM

$164.99

$

Usually ships in 3-6 days

0

40

Exmark 103-2360

SEAL-DOOR HINGE

$132.99

$

Usually ships in 3-6 days

0

41

Exmark 103-3010-03

STRAP-HOLD DOWN

$67.99

$

Usually ships in 3-6 days

0

42

Exmark 103-2383

BAG AND BOTTOM PANEL ASM

$359.99

$

Usually ships in 3-6 days

0

43

Exmark 103-2737

DOOR ASM

$722.99

$

Usually ships in 3-6 days

0

44

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

45

$0.99

$

In Stock, Qty 6

0

46

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Exmark 103-2377

BUSHING

$8.99

$

In Stock, only 1 left!

0

48

Exmark 103-2361

PIN-PIVOT, HINGE

$19.99

$

Usually ships in 3-6 days

0

49

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

51

Exmark 103-3332-03

ARM-HINGE, LH

$60.99

$

Usually ships in 3-6 days

0

Exmark 103-3331-03

ARM-HINGE, RH

$60.99

$

Usually ships in 3-6 days

0

52

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-2412-03

LINK-INTERMEDIATE

$283.99

$

Usually ships in 3-6 days

0

55

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

56

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

57

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

58

Exmark 103-8018

PLUG-DOME

$5.49

$

Usually ships in 3-6 days

0
